SAMWONTECH
2nd Edition of TEMP2000_Series IM : July. 16. 2010 Page 3 / 87
1.1 Package Checkpoint
▶ Please check any damage to the product by inspecting the appearance of the delivered product first. In
addition, check the following items.
1.1.1 Verify the model suffix code
▶ Check to see if specifications of the delivered product are the same as those of your order.
Verify model suffix code printed on labels at the right of packing box and the left of product case.
Model Display LCD Size Option Descriptions
TEMP2300 3.7 inch
TEMP2500 5.7 inch
TEMP2700 7.5 inch
/SD : SD card adaptor support
/IO2 : Usable when the option
is selected
I/O1 BOARD (Basic) :
Relay 12 points + DI 16 points
I/O2 BOARD (Optional): max. relay 20
points

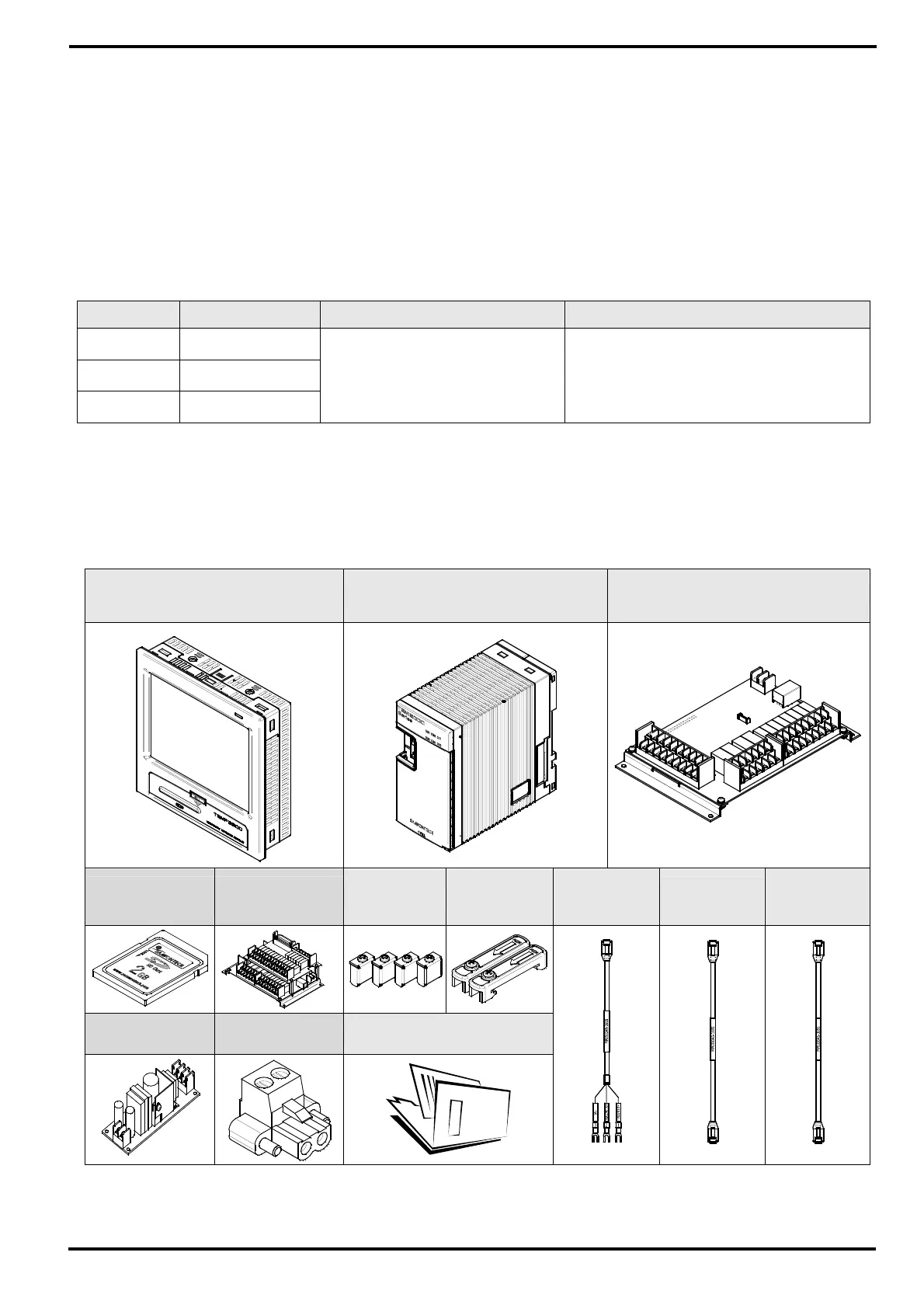

1.1.2 How to Check Components in the Package
▶ Check to see if the following components are included.
DISPLAY UNIT CONTROL UNIT I/O1 BOARD
SD CARD
(Option Selected)
I/O2 BOARD
(Option Selected)
Fix Mount End Bar
Cable(2m)
PC⇔Control or
Display Unit
Cable(1m)
Control⇔I/O1
Cable(3m)
Display⇔
Control
SMPS
(Sold Separate)
POWER SOCKET
For TEMP2300
Manual
To Next Page
