Samwontech TEMP2500 User Manual

SAMWONTECH
2nd Edition of TEMP2000_Series IM : July. 16. 2010 Page 64 / 87
9.1.3 Segment Alarm Signal Setup Screen
▶ This screen sets Seg Alarm.
▶ Total 16 Seg Alarm Signal, 8 Signal per CH can be set.
▶ Seg Alarm Signal operates according to Alarm Type setup, and there are 20 Alarm Types.
Table 9-3 Seg Alarm Signal Setup Screen
Parameter Range Unit Default
Seg Alarm #n Type
OFF, AH.F, AL.F, DH.F
DL.F, DH.R, DL.R
DO.F, DI.F, AH.R
AL.R, AH.FS, AL.FS
DH.FS, DL.FS, DH.RS
DL.RS, DO.FS, DI.FS
AH.RS, AL.RS
ABS OFF
Seg Alarm #n POINT EU(-5.0~105.0%) EU
EU(100.0%)
(Alarm #n Type are
not DO.F, DI.F,
DO.FS, DI.FS)
Seg Alarm #n High POINT EUS
Seg Alarm #n Low POINT
EUS(-100.0~100.0%)
EUS
EUS(0.0%)
(Alarm #n Type =
DO.F, DI.F, DO.FS,
DI.FS)
Seg Alarm #n Hysteresis EUS(0.0~100.0%) EUS EUS(0.5%)
Seg Alarm #n Delay Time 0.00~99.59 (MIN.SEC) ABS 00.00
* #n : 1 ~ 8

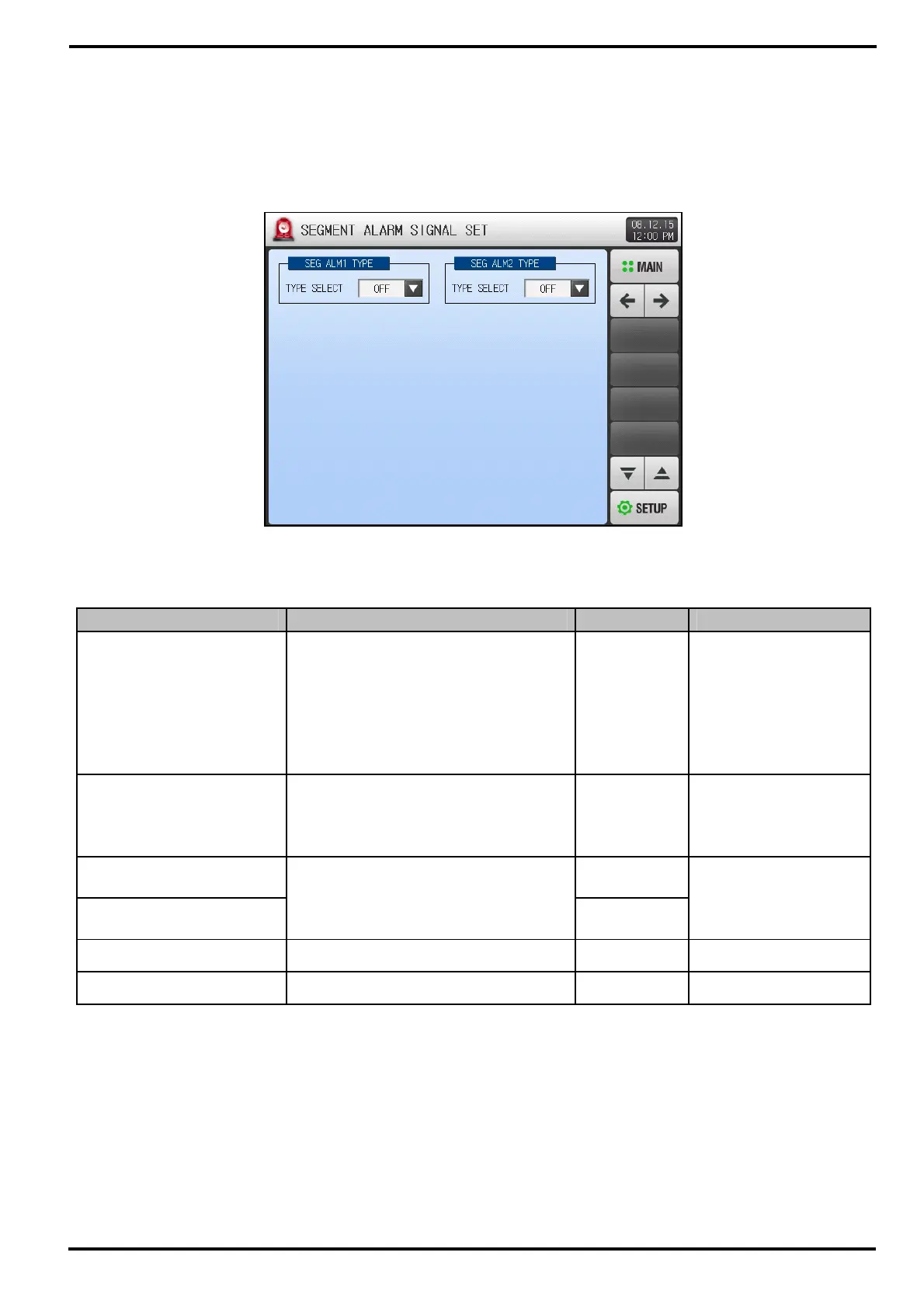

[Figure 9-5] Seg Alarm Signal Setup Screen
