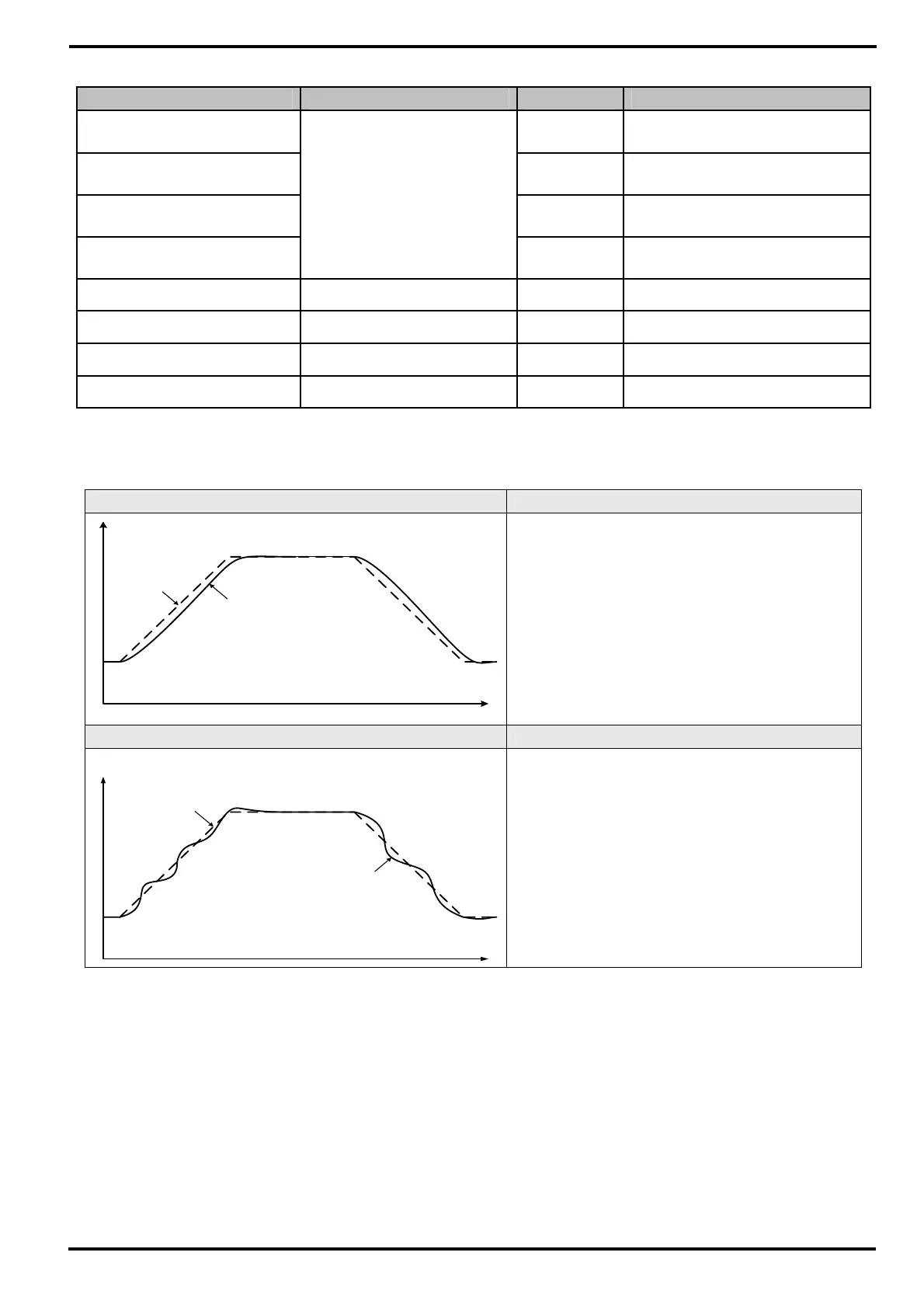

Table 10-1 PID Group Setup Screen-1 Parameter
Parameter Range Unit Default
Ref. Point 1 EU
Range Low +
(Range Low +Range High)/5
Ref. Point 2 EU
Range Low +
2(Range Low + Range High)/5
Ref. Point 3 EU
Range Low +
3(Range Low + Range High)/5
Ref. Point 4
EU(0.0 ~ 100.0%)
Range Low ≤ RP1 < RP2 <
RP3 < RP4 ≤ Range High
EU
Range Low +
4(Range Low + Range High)/5
Ref. Hysteresis Point EUS(0.0 ~ 10.0%) EUS EUS(0.3%)
Dev. Point EUS(0.0 ~ 100.0%) EUS EUS(0.0%)
Control Type D.PV, D.DV ABS D.PV
Tuning Point 0.01 ~ 1.00% % 0.10
▶ Example of Operation according to PID Control Type
D.DV Control Description
▶ Output(MV) Change Rate is small in D.DV
control. It has small overshoot, and time
to reach TSP is delayed a little bit.
▶ It is proper to apply for equipment which
is sensitive to the change rate of
Output(MV).
D.PV Control Description
▶ Output(MV) Change Rate is big in D.PV
control. It has more overshoot and time to
reach TSP is quicker than D.DV Control.
▶ It is proper to apply for equipment which
responds late according to change rate of
Output(MV).
SP
PV
PV
SP
