11.1.2 DI Function and Operation Setup Screen-2
▶ Able to set operation method for each DI Signal.
▶ Able to set 8 types of operation per sets for DI1∼DI8.
① Select DI1 Operation Method.
☞ Error : Display in ‘Text’ or ‘Picture’ according to Display Method when DI1 Error occurs.
☞ Run/Stop : It runs operation when DI1 error occurs, and stops when error is released.
② Select DI2 Operation Method.
☞ Error : Display in ‘Text’ or ‘Picture’ according to Display Method when DI2 Error occurs.
☞ Hold : Holds current operation screen when DI2 error occurs, and release Hold when error is released.
- Only available at Program Operation.
③ Select DI3 Operation Method.
☞ Error : Display in ‘Text’ or ‘Picture’ according to Display Method when DI3 Error occurs.
☞ Step : It forces to move to next Segment from current Segment when DI3 Error occurs.
- Only available at Program Operation.
④ Select DI4~8 Operation Method.
☞ Error : Display in ‘Text’ or ‘Picture’ according to Display Method when DI4~8 Error occurs.
☞ Pattern Select : It forces to move to corresponding Pattern according to “Pattern Select by DI” when
DI4∼8 Error occurs.
- Only available at Program Operation.
Table 11-2 DI Function and Operation Setup Screen-2 Parameter
Parameter Range Unit Default
DI1 Operation Method Error, Run/Stop ABS Error
DI2 Operation Method Error, Hold ABS Error
DI3 Operation Method Error, Step ABS Error
DI4∼8 Operation Method Error, Pattern Select ABS Error

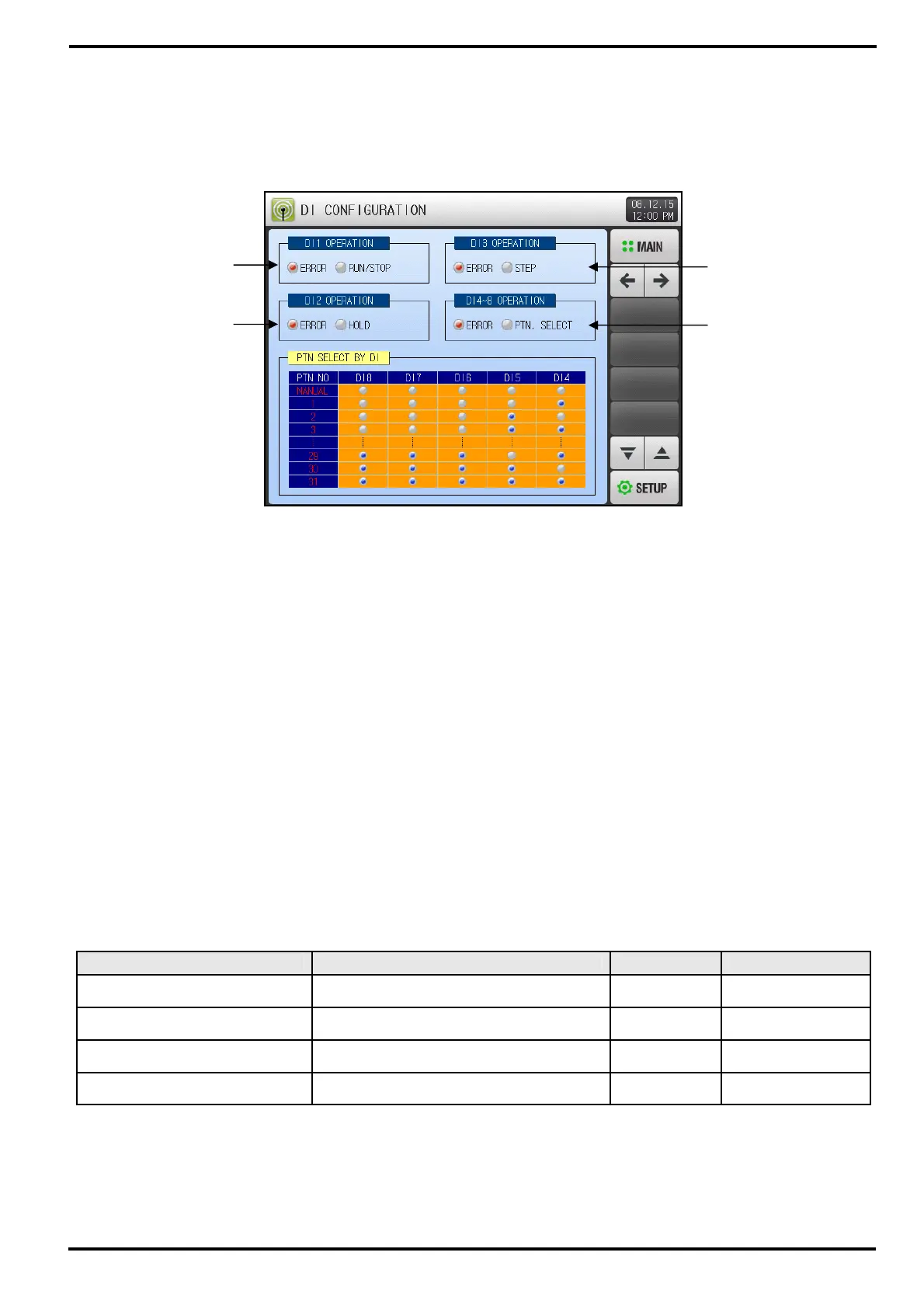

[Figure 11-2] DI Function and Operation Setup Screen-2
①
③
② ④
