11.2.2 DI Error Picture Setup
▶ Able to set when Display Method is ‘Picture’.
▶ Screen can display in ‘Picture’ when there are picture files(BMP) in internal memory.
▶ Picture can be uploaded with SD CARD. Refer to [12. Picture View Screen].
① (
) is deactivated because there is no corresponding file in internal memory.
② Display DI corresponding picture from Picture Files (BMP) stored in SD CARD.
☞ Only selected file can be uploaded to internal memory.
③ This button is used to upload the file in SD CARD to internal memory.
④ Displays current SD CARD capacity.
☞ Displays only when SD CARD is inserted.
▶ Only the selected picture files (
) in SD Card Memory are uploaded to internal memory when pressing
(Upload) button from [Figure 11-7 DI Function and Operation Setup Screen-5/1].
▶ “THE PICTURES CURRENTLY ARE IN UPLOAD” message is displayed at the bottom of screen during
uploading.
①
②
③

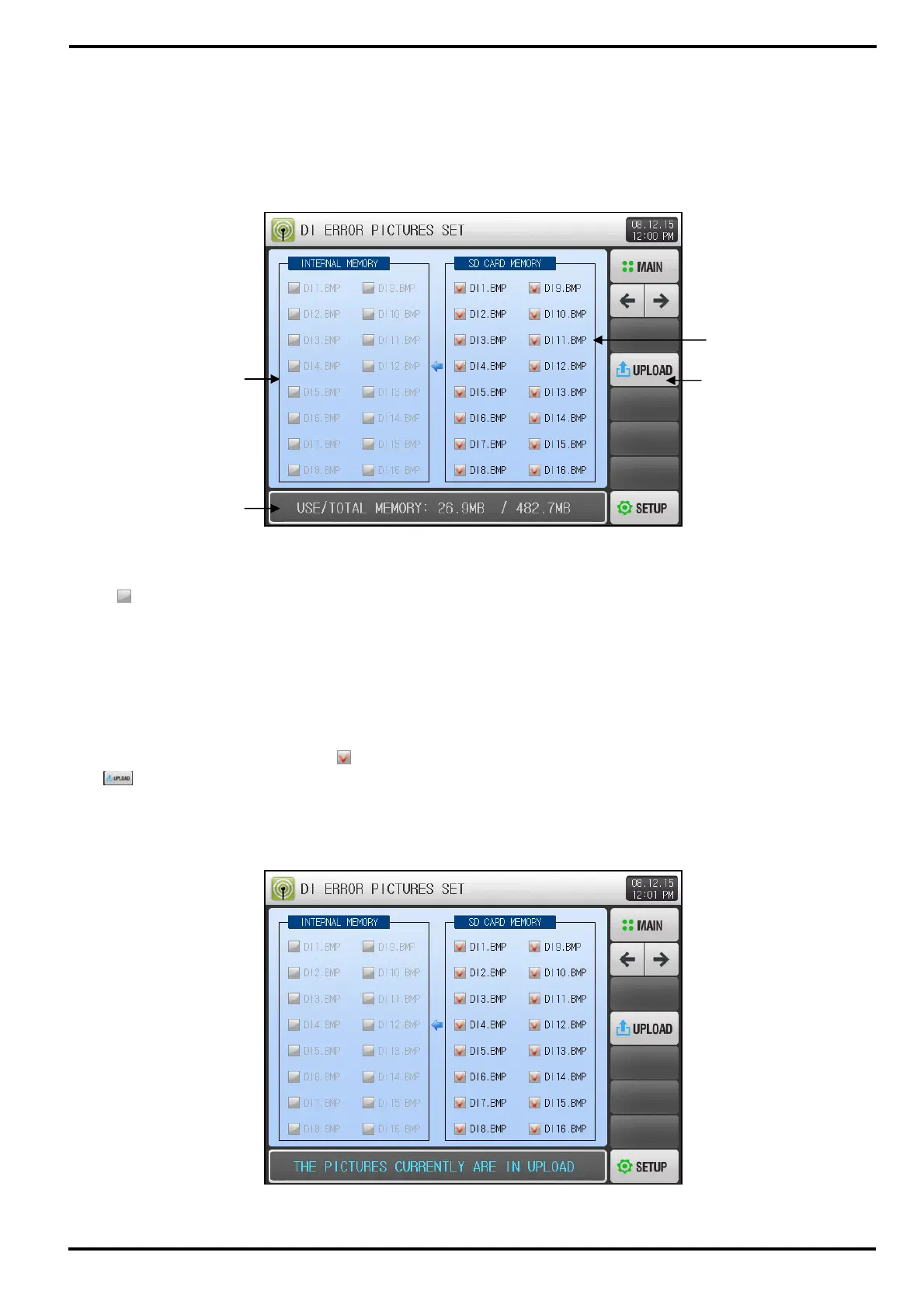

[Figure 11-7] DI Function and Operation Setup Screen-5/1
[Figure 11-8] DI Function and Operation Setup Screen-5/2
④
