Appendix CompactFlash Connector Specifications
CompactFlash Memory Card Product Manual © 1998 SANDISK CORPORATION 113
Description Pin Number L ± 0.10 L1 Max L2 Ref L3 ± 0.10 L4
Power 1, 13, 38 & 50 5.00 [.197] 0.50 [.020] 4.50 [.177] 0.50 [.020] 0.50 - 2.50
[.020 - .098]
General All other pins 4.25 [.167] 0.50 [.020] 3.75 [.148] 0.50 [.020] 0.50 - 2.50
[.020 - .098]
Detect 25, 26 3.50 [.138] 0.50 [.020] 3.00 [.118] 0.50 [.020] 0.50 - 2.50
[.020 - .098]

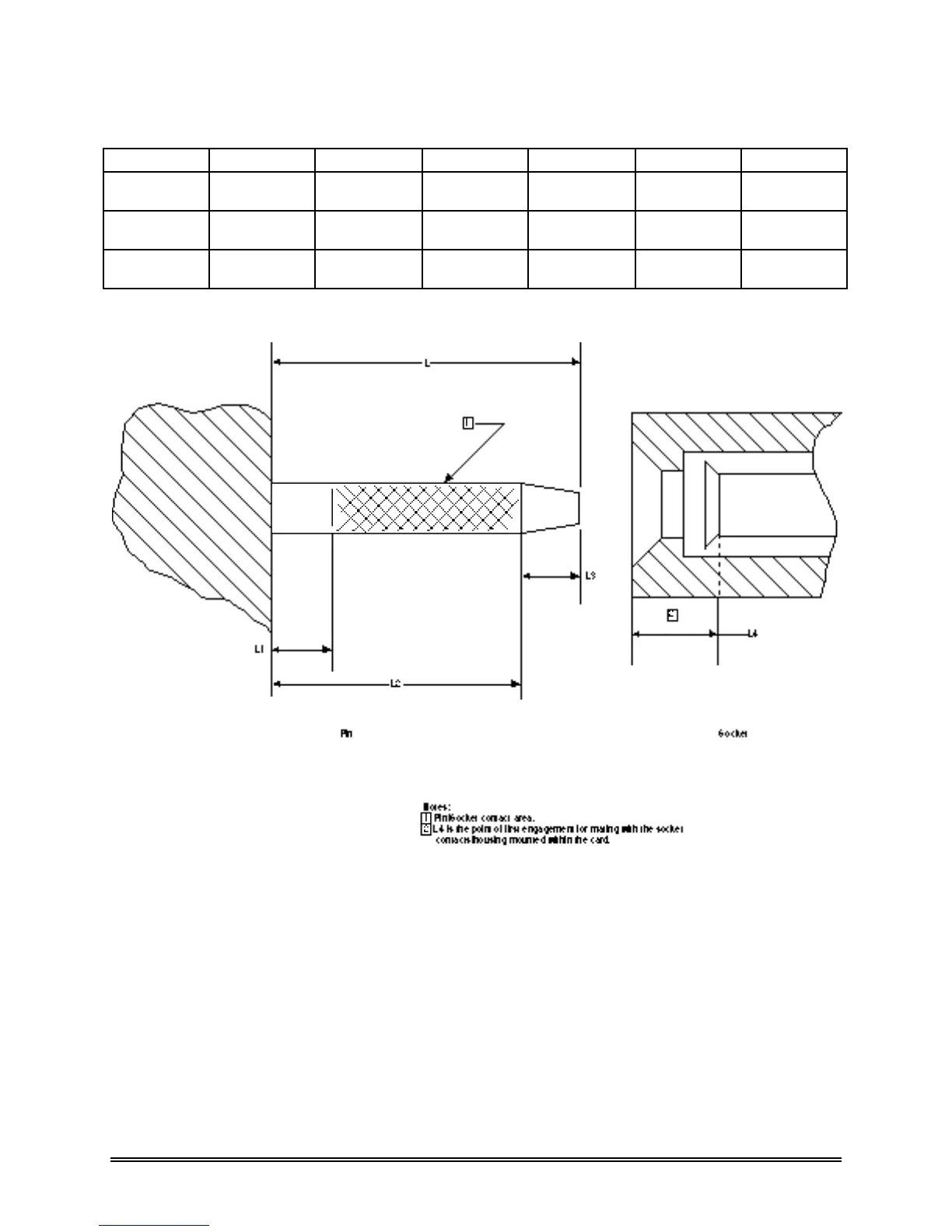

Figure 3 Pin and Socket Detail
