CompactFlash Memory Card Product Manual
SanDisk CompactFlash Memory Card Product Manual © 1998 SANDISK CORPORATION36
4.3.12 True IDE Mode I/O Input (Read) Timing
Specification
Table 4-9 True IDE Mode I/O Read Timing
Item Symbol IEEE Symbol Min ns. Max ns.
Data Delay after IORD td(IORD) tlGLQV 100
Data Hold following IORD th(IORD) tlGHQX 0
IORD Width Time tw(IORD) tlGLIGH 165
Address Setup before IORD tsuA(IORD) tAVIGL 70
Address Hold following IORD thA(IORD) tlGHAX 20
CE Setup before IORD tsuCE(IORD) tELIGL 5
CE Hold following IORD thCE(IORD) tlGHEH 20
IOIS16 Delay Falling from Address tdfIOIS16(ADR) tAVISL 35
IOIS16 Delay Rising from Address tdrIOIS16(ADR) tAVISH 35

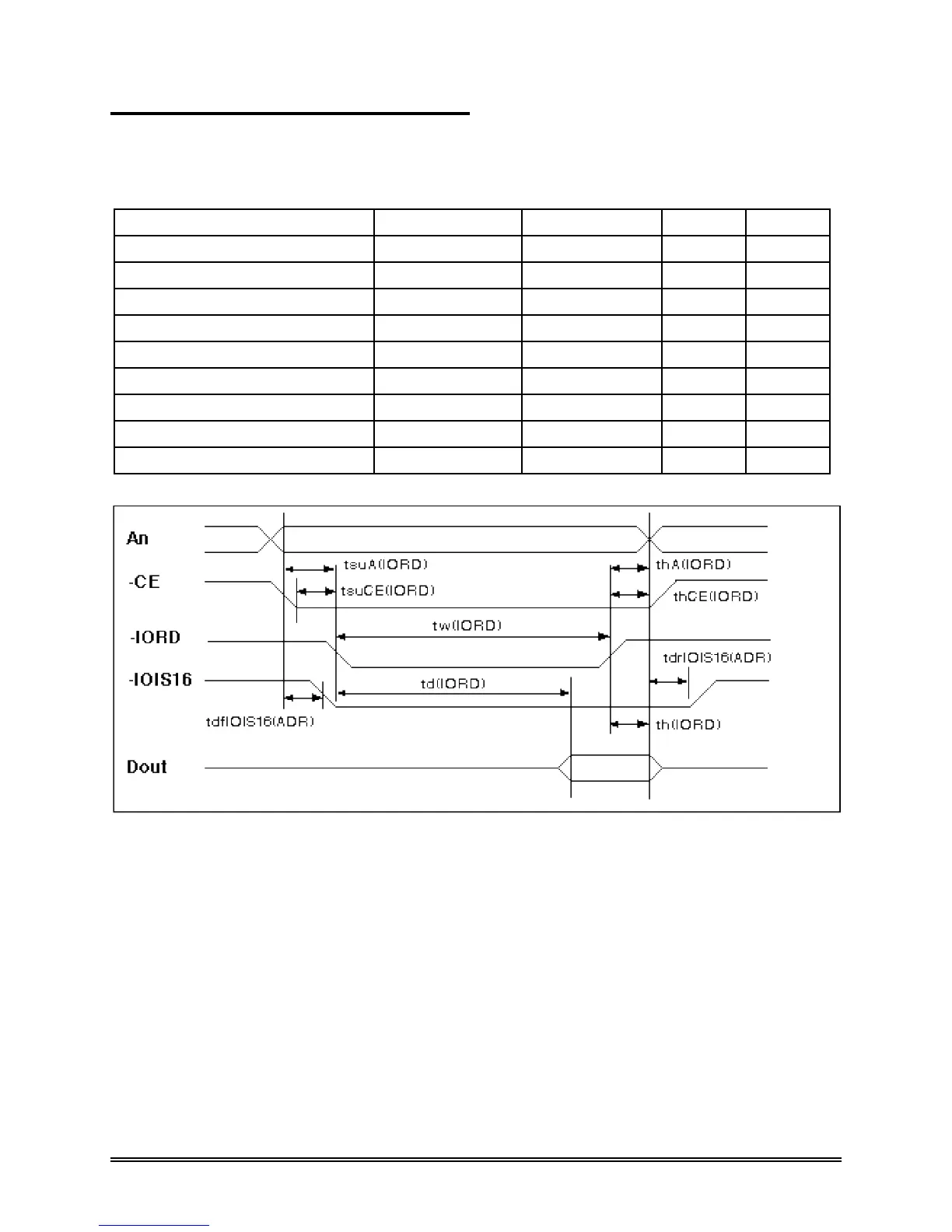

Figure 4-7 True IDE Mode I/O Read Timing Diagram
Notes: The maximum load on -IOIS16 is 1 LSTTL with 50pF total load. All times are in nanoseconds.
Minimum time from -WAIT high to -IORD high is 0 nsec, but minimum -IORD width must still be met.
Dout signifies data provided by the CompactFlash Memory Card to the system.
