Sanwa cd732 - DC Voltage Measurement (DCV)

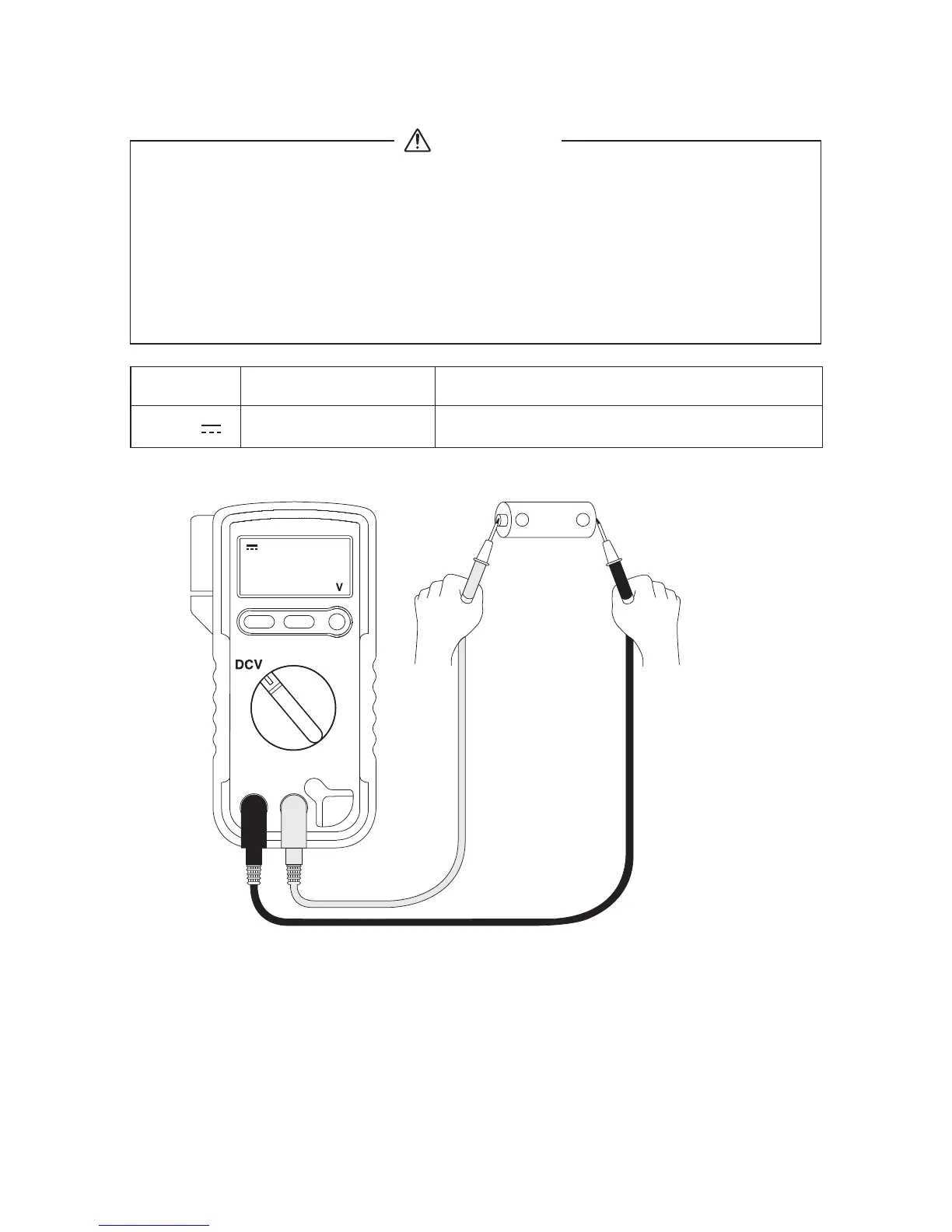

Battery
+
−
DCV
measurement
Function Maximum rated input Ranges
DCV
●
DC 1000 V 600.0 mV, 6.000 V, 60.00 V, 600.0 V, 1000 V
Note:
● The displayed value fluctuates when the test leads are open,
but this is not malfunction. Particularly, with the 600.0 mV
range, the high input impedance may cause the display to
fluctuate or show “O.L” when the test leads are open.
● Malfunction may occur if the voltage measurement of the
horizontal oscillation output circuitry of a TV is attempted.
5-2 DC voltage measurement (DCV)
WARNING
1. Never apply a voltage signal exceeding the maximum rated
input value.
2. Do not turn the rotary switch to change the function during
measurement.
3. Always keep your fingers behind the finger guards on the test
lead when making a measurement.
– 39 –
