Sanwa cd732 - Line Frequency Measurement (Hz)

Sine wave signal
ACV
0 V
Press the SELECT button
to switch to “Hz”.

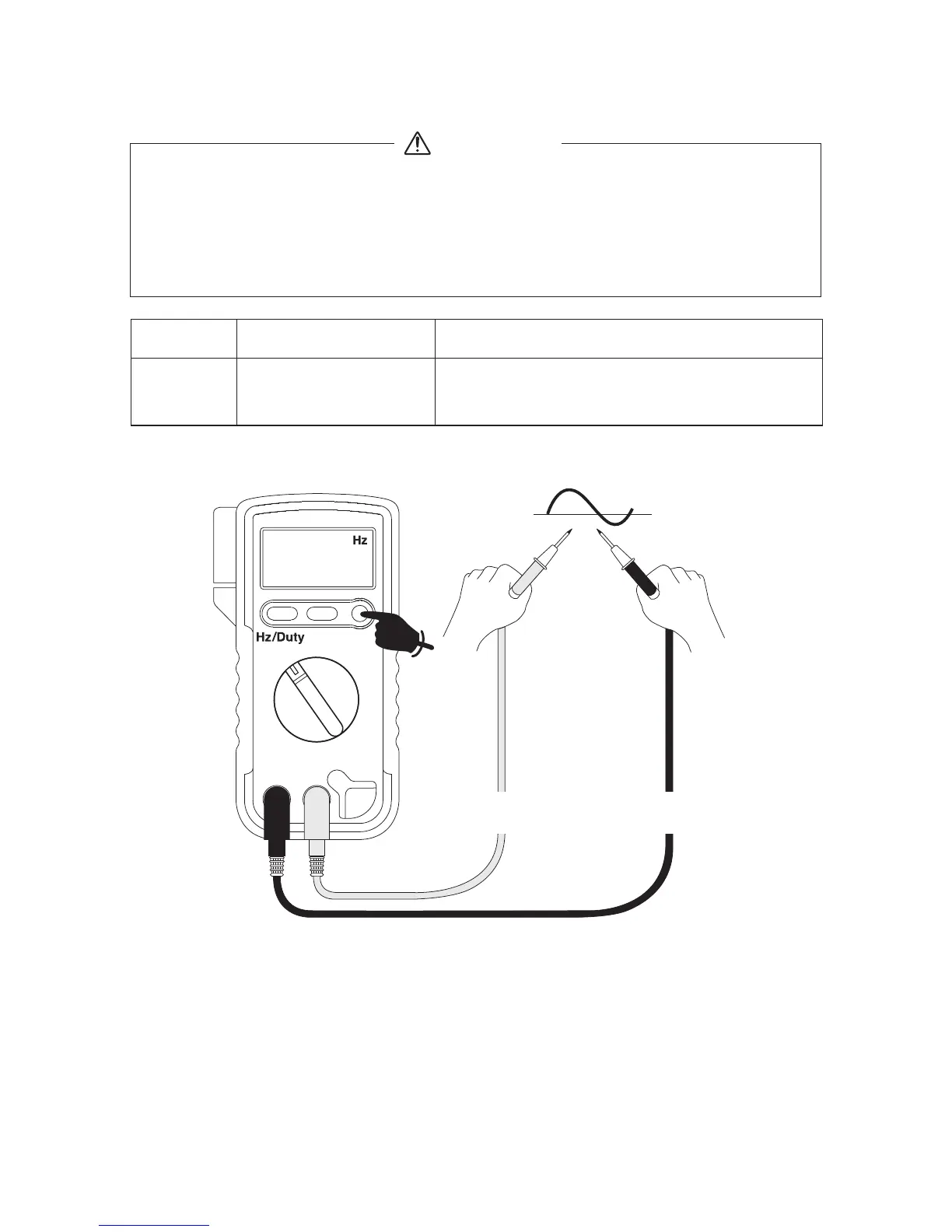

Line frequency measurement
5-4 Line frequency measurement (Hz)
Hz
99.99 kHz
(≤ 100 Vrms)
9.999 Hz, 99.99 Hz, 999.9 Hz, 9.999 kHz, 99.99 kHz
(Auto range only)
Function
Maximum rated input
WARNING
1. Never apply a voltage signal exceeding the maximum rated input value.
2. Do not turn the rotary switch to change the function during measurement.
3. Always keep your fingers behind the finger guards on the test
lead when making a measurement.
Note:
● The frequency measurement range is from 5 Hz to 99.99 kHz.
The input signal condition is: Sine wave (zero-cross sin signal
waveform) from 5 to 100 Vrms.
● If the measured frequency contains noise, the measurement
values may become unstable.
●
The bar graph is not displayed with the frequency measurement.
The measurement is possible only with the auto range.
