Sanwa cd732 - Multimeter and Test Leads Overview



25
・
When the removable test pin covers are mounted : CAT.III 600 V
・
When the removable test pin covers are not mounted: CAT.II 1000 V
(DC 1000 V / AC 750 V for meter)

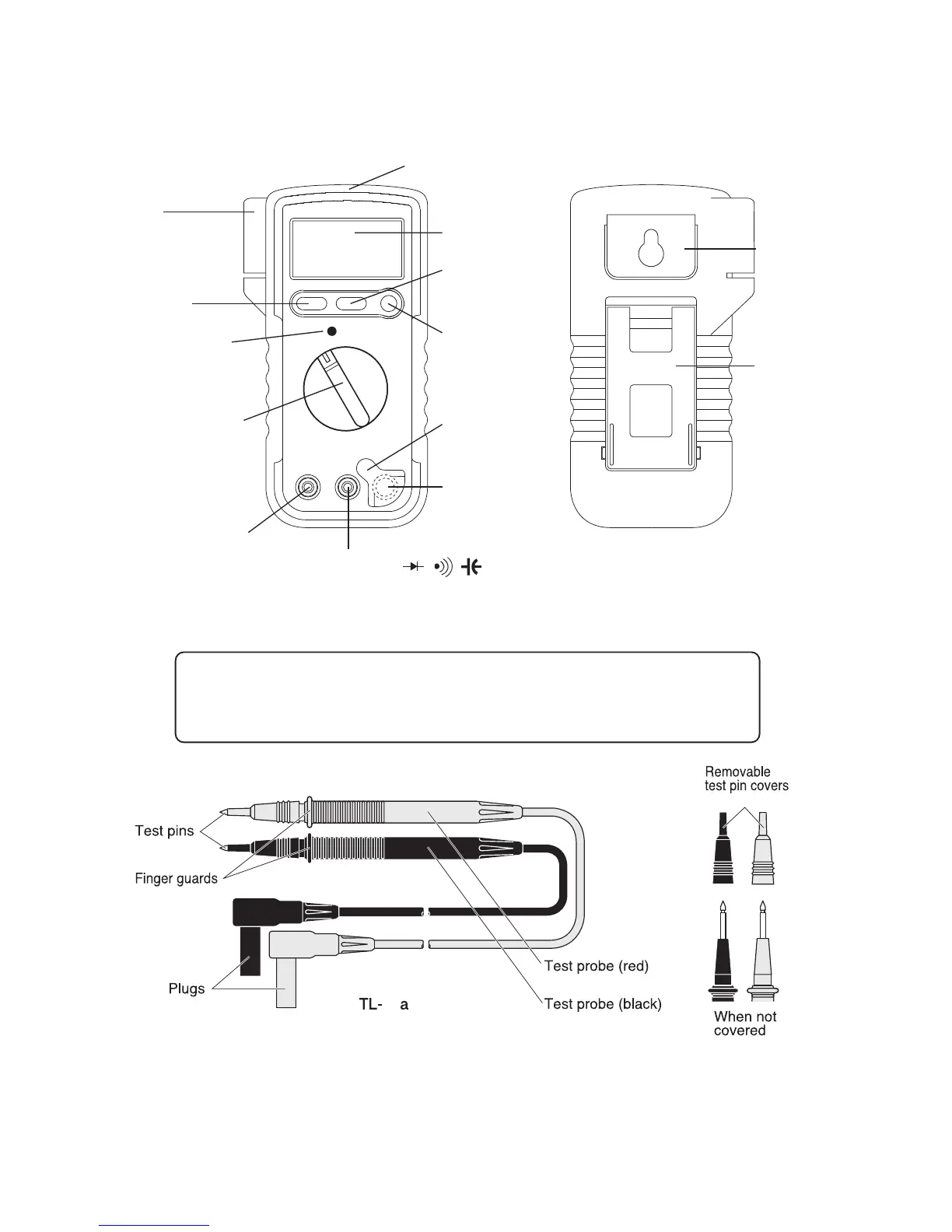

3-2 Multimeter, Test leads
Display
Data hold
button
Select
button
Safety cover
6 ·15 A input
terminal
Test lead
Continuity
lamp
Fix
Range hold
button
Holster(H-70)
V,Hz,Duty, Ω,● , ●, ,μA,mA
+ input terminal
Stand
Wall
hanger
Power switch
and function
switch
COM - input
terminal
