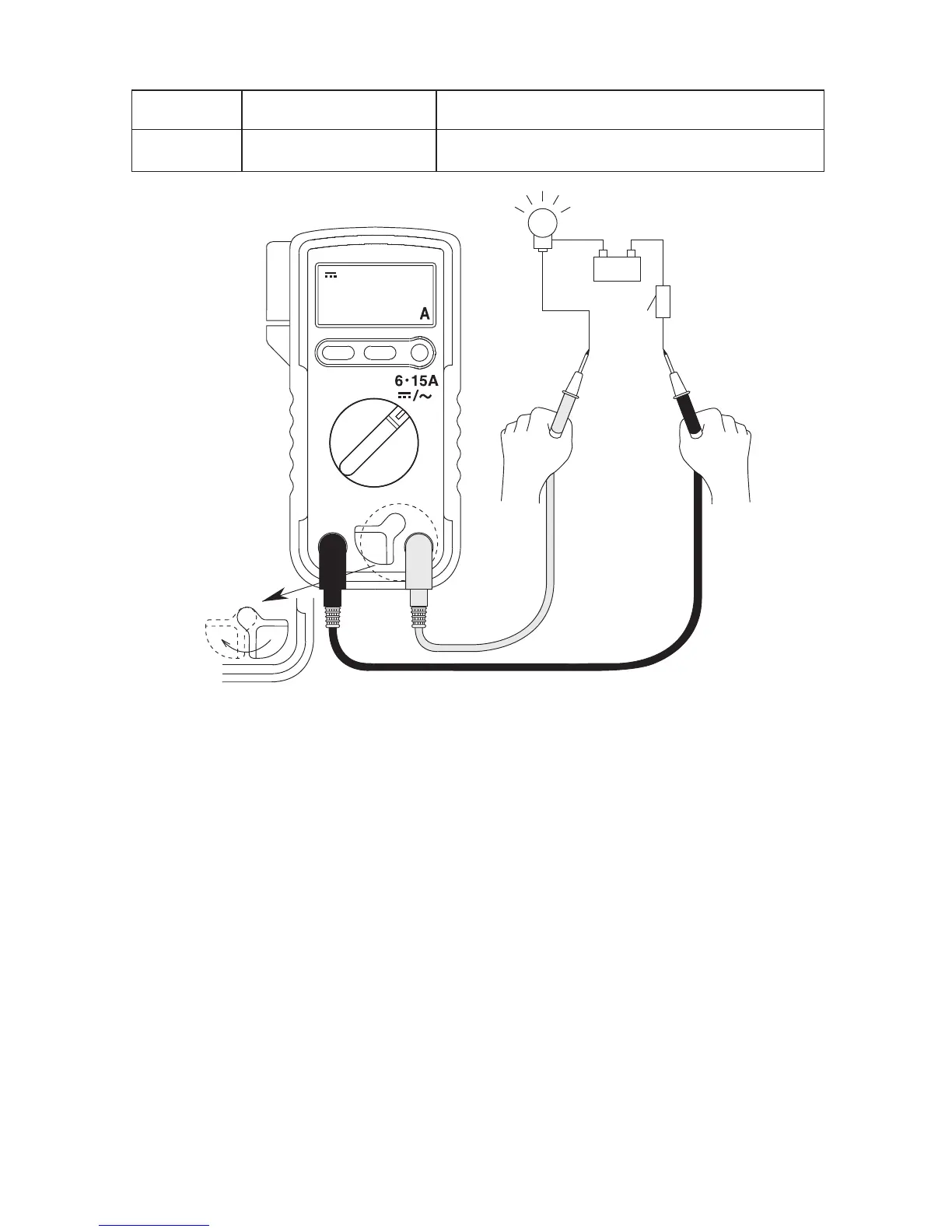

Example of DC 6-15 A range measurement
＋ −
DC/AC A
15 A
600.0 μA, 6000 μA
Function
Maximum rated input
Note:
● As this instrument employs the mean value method for the
AC detection, measurements become erroneous when the
input waveform is other than a sine wave (the frequency
range is 45 to 500 Hz).
● If the displayed value hardly changes when the input signal is
applied or becomes much lower than expected, the measurement
terminals or function switch are set erroneously or the fuse
(
φ
10 x 38 mm size, 16 A/1000 V) may be blown. Please check them.
● Continuous measurement is permissible for current below 6
A. (When measuring 6 A or higher current, complete each
measurement within 10 seconds and leave an interval of 5
minutes or more between measurements.
●
In case of measurements taking a long period, use the optional
clamp probe.
● The DC/AC switching is performed with the SELECT button.
Ranges
–
49
–
