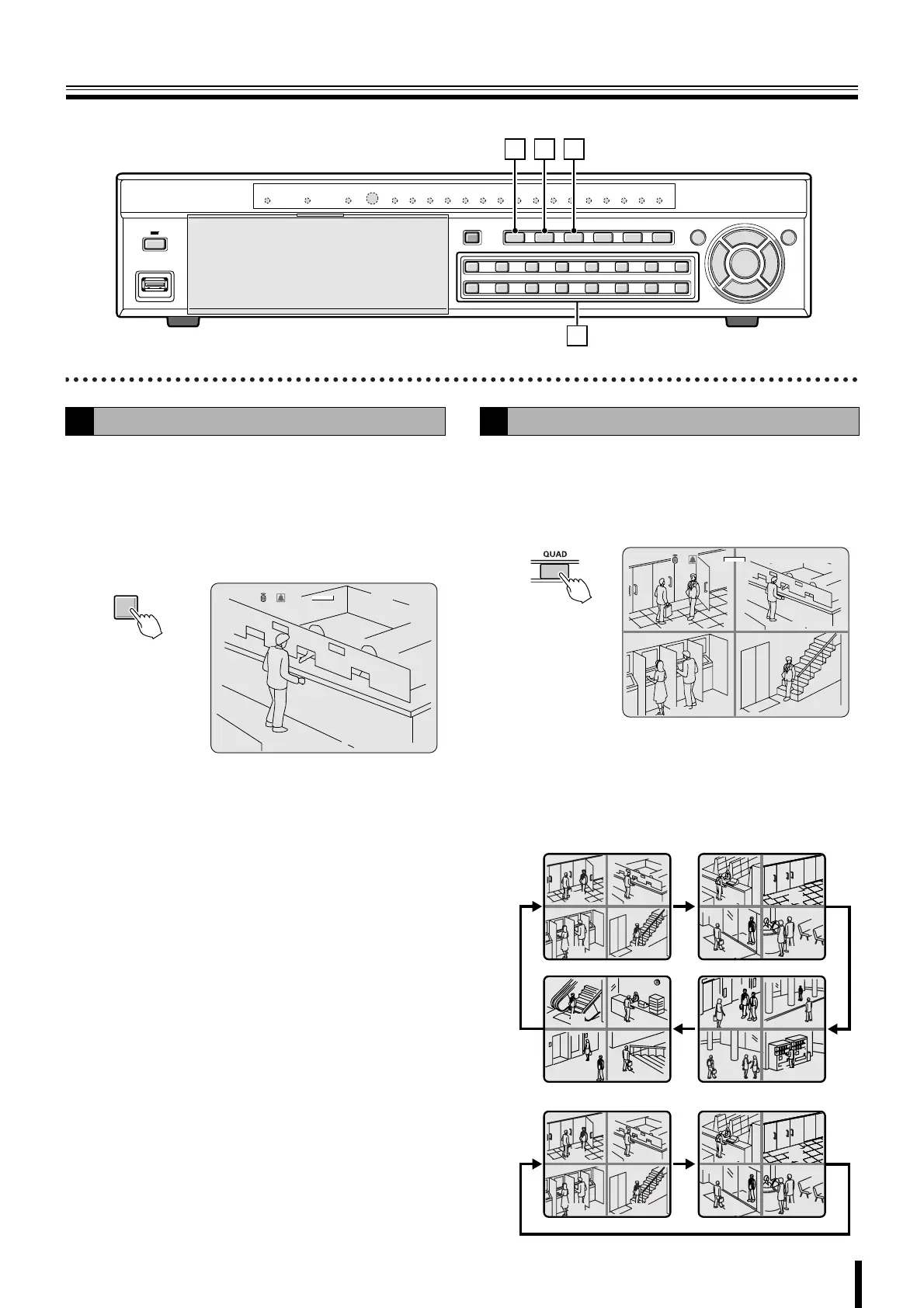

Monitoring the camera videos
Displays the video of the camera specified using the channel
selection button on single-screen.
Example: Displaying camera 2 on single-screen
Press "2" on the camera selection button.
The video of camera 2 is displayed on single-screen.
Displays the 4 cameras video connected at once.
1
Press the QUAD button.
The videos of cameras 1 - 4 are displayed on
quad-screen.
2
Press the QUAD button again.
The videos of cameras 5-8 are displayed on
quad-screen.
Each time pressing the QUAD button, the video of the
camera changes as the quad-screen.
