81
Mounting the hard disk (S-ATA)
A hard disk may not be installed at the time of purchase. If no hard disk is installed, consult the dealership where the
unit was purchased for purchase and installation.

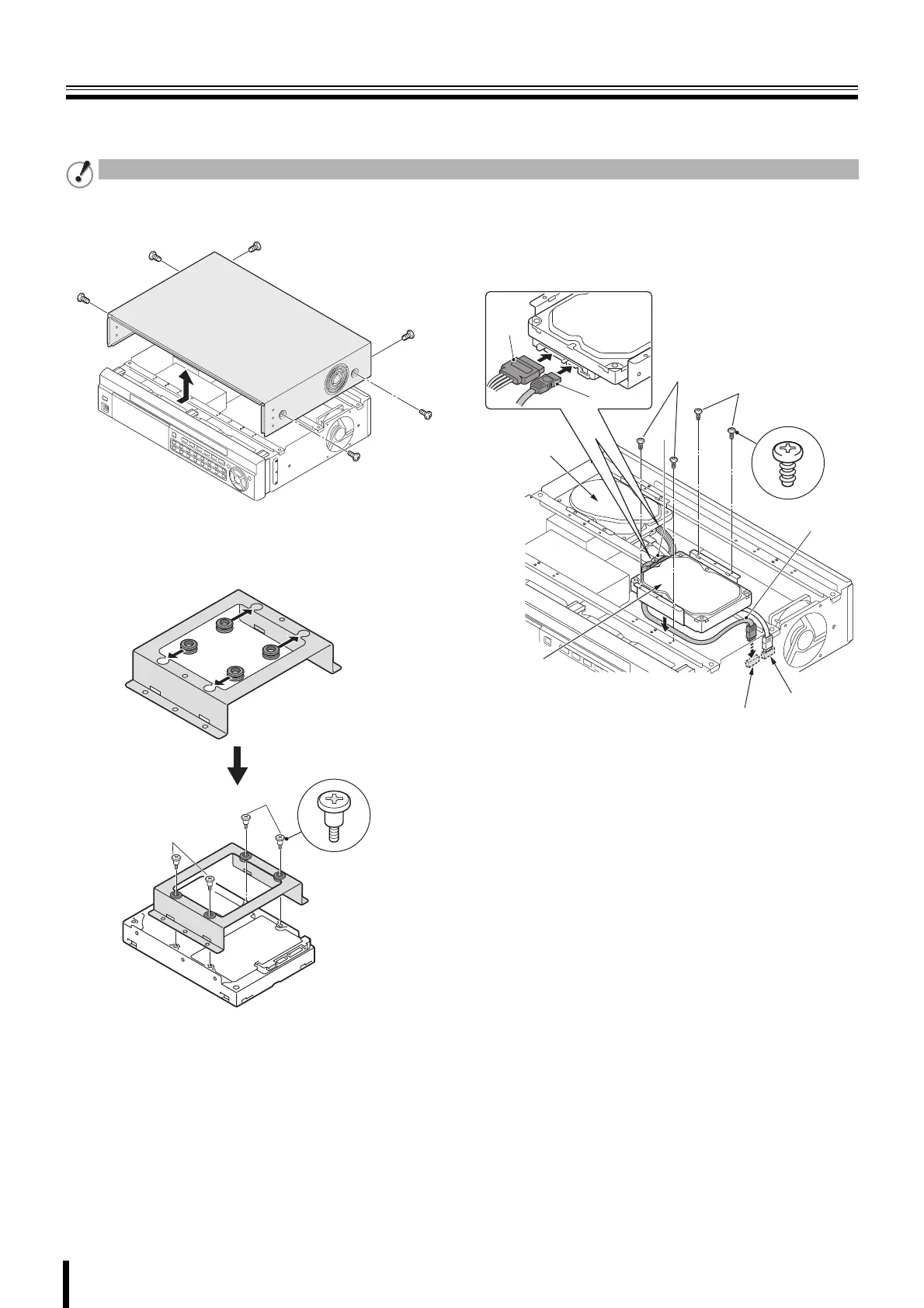

1
Remove the unit's cover.
2
Fix the supplied rubber pads to the supplied HDD
mounting bracket. Then fix the hard disk to the
mounting bracket using the supplied screws (A).
3
Connect the unit's power cable (B) and the supplied
S-ATA cable (C) to the hard disk. Then fix the hard
disk to the unit using the supplied HDD fixing
screws (D).
Make sure the unit is turned off before installing the hard disk.
A
A
B
B
D
C
C
HDD 1
HDD 2
D
DISK A
(HDD 1)
DISK B
(HDD 2)
