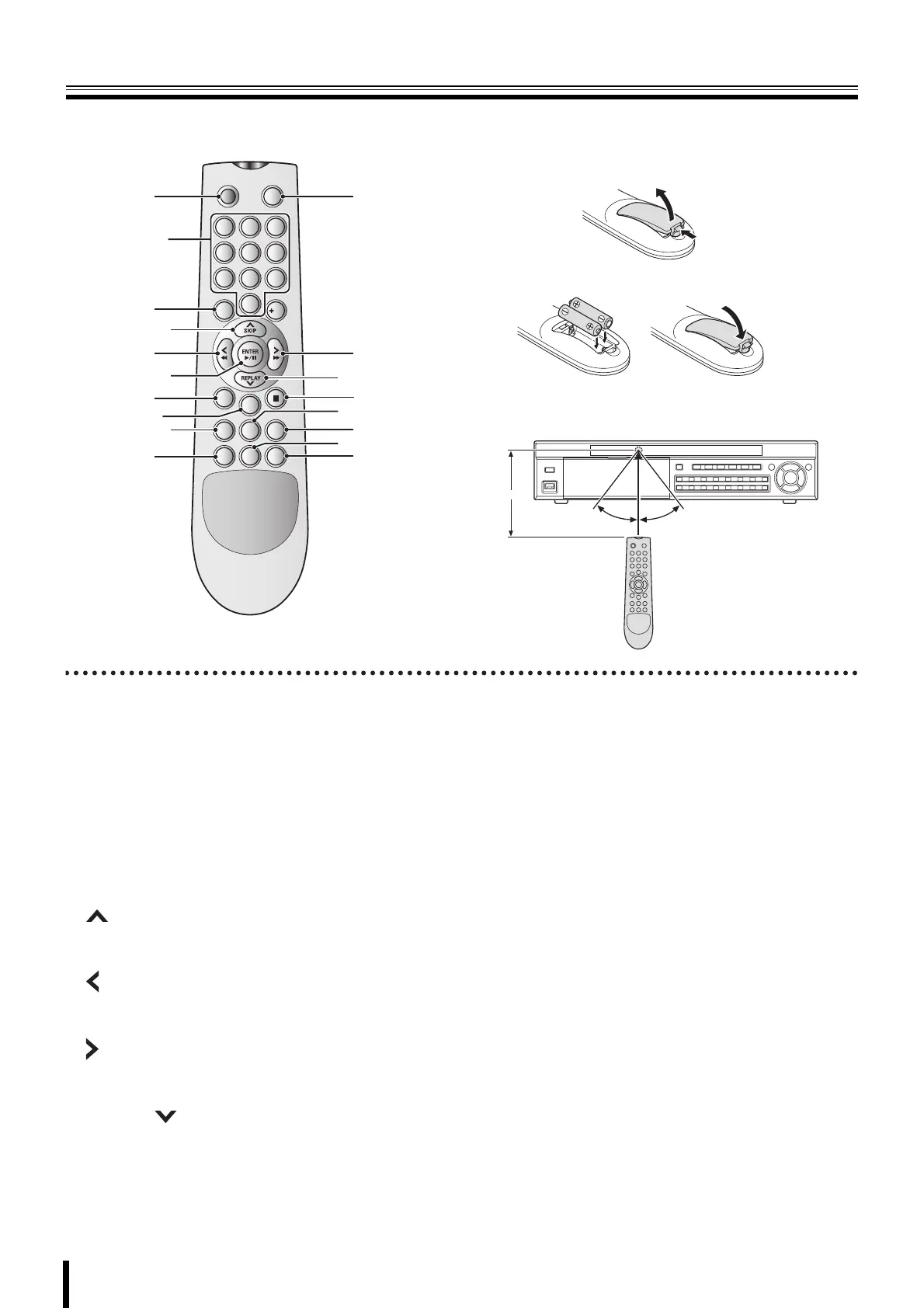

Part names of the remote control
Batteries for the remote control are not supplied. Use two AAA batteries.
b Inserting batteries in the remote control.
1 Take the battery cover off.
2 Place the batteries and fit the cover.
Note: Make sure the batteries are correctly oriented.
b Operation range
1 REC/STOP button
Stops and starts recording of live videos displayed on the
monitor.
2 ALARM button
Switches ALARM OUT to ENABLE/DISABLE.
3 Numeric buttons
Used to input passwords, camera number and ID number.
4 ID button
If a remote control ID number was set, press before
inputting it. (P41)
5 • SKIP button
During settings: Moves the cursor upward.
During playback: Skips the video 1 minute forward.
6
• f button
During settings: Moves the cursor to the left.
During playback: Fast rewinds.
7
• e button
During settings: Moves the cursor to the right.
During playback: Fast forwards.
8 REPLAY
• button
During settings: Moves the cursor downward.
During playback: Skips the video 1 minute backward.
9 ENTER • c/h button
During settings: Confirms the selected item.
During search: Plays back the selected video.
During playback: Displays a still video.
F MENU button
Displays the setting menu screen.
G EXIT button (b)
To exit the settings mode and the menu screen.
H SEARCH button
Activates the recorded videos search mode.
I PTZ button
Activates the operation mode that operates the Pan/Tilt/
Zoom/Focus of PTZ dome cameras.
J LOCK button
Switches security lock to ON/OFF.
K MARK • COPY button
Activates the video saving mode.
L SEQ button
Sequences the videos of the connected cameras.
M QUAD button
Displays the quad-screen.
Each time the button is clicked the video of the next four
channels is displayed in order of the channel numbers.
N MULTI button
Displays a multi-screen.
REC/STOP ALARM
ID
123
456
78
0
PTZ LOCK
SEQ
MULTI
QUAD
COPY
9
10
MENU
MARK
EXIT
SERCH
1
2
3
4
5
7
G
8
J
M
K
N
9
I
H
6
F
L
30° 30°
Max. 5 m
