Sanyo PLC-HF15000L

96

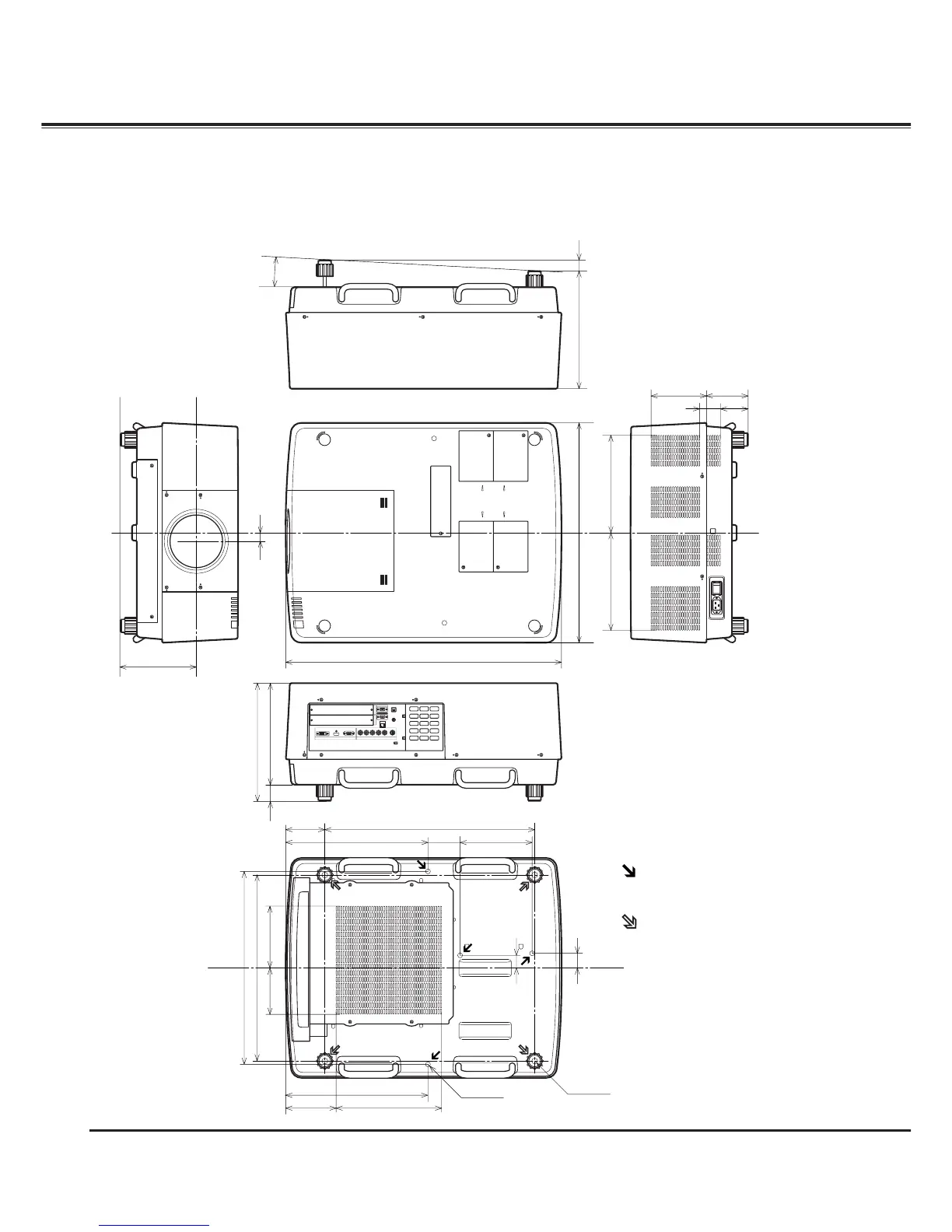

Dimensions
Appendix
Unit: mm (inch)
620(24.41)
815(32.09)
420(16.54)
420(16.54)
4–M8
4–M10
312(12.28)148(5.83)
95(3.74)
37(1.46)
183(7.21)137(5.39)
550(21.65) 349(13.74)
349(13.74)
144(5.67) 143(5.63)
82(3.23)
25(0.98)
35(1.38)
3º
301(11.85)48(1.89)
25(0.98)
650(25.59)
188.5(7.42) 198.5(7.82)
570(22.44)
40(1.58)
213(8.39)
115(4.53)
224(8.82)
Threaded bores (for the ceiling mount)
Diameter: M8
Depth: 32 mm (1.2598 inch)
Threaded bores (for the adjustable feet and ceiling
mount)
Diameter: M10
Depth: 40 mm (1.5748 inch)
Note:
When installing the projector on the ceiling, remove the
adjustable feet and use the threaded bores to secure
the ceiling mount.
