Sanyo PLC-XC50 - Connecting to Component Video and RGB (Scart) Equipment

16
Installation
Connecting to Component Video and RGB (Scart) Equipment
Cables used for connection
• Audio Cables (Mini Plug :stereo)
• Scart-VGA Cable
• Component Cable
• Component-VGA Cable
(Cables are not supplied with the projector.)
Notes:
•
When the AUDIO OUT is plugged-in, the projector's built-in speaker is not available.
• See page 76 for ordering optional parts.
Unplug the power cords of both the projector and external equipment from the AC outlet before
connecting cables.

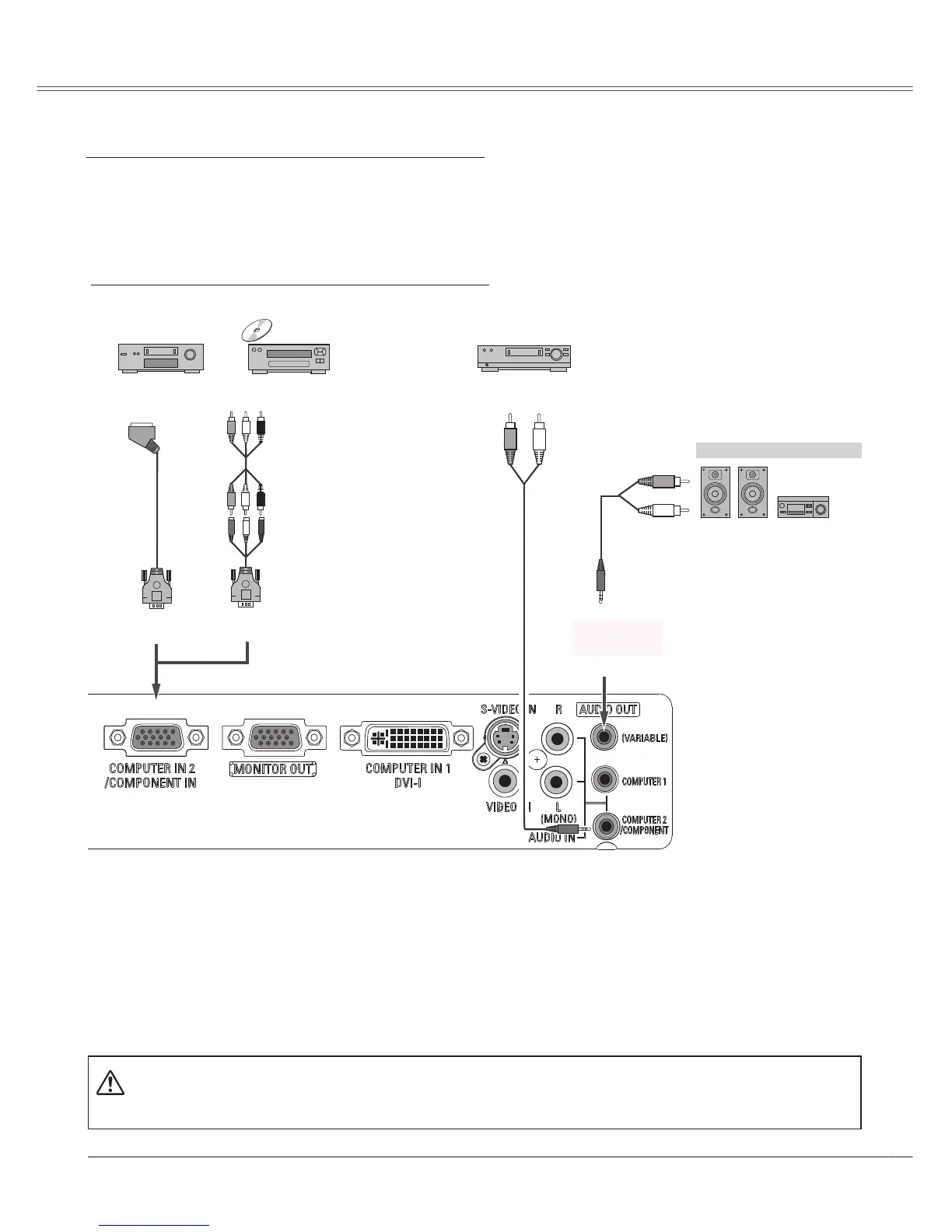

External Audio Equipment
COMPUTER IN 1/COMPONENT IN
COMPUTER2/
COMPONENT
AUDIO IN
Audio cable
(stereo)
Audio cable (stereo)
Audio Input
Component Video Output
(Y, Pb/Cb, Pr/Cr)
RGB Scart
21-pin Output
Audio Output
Scart-VGA
cable
Component-VGA cable
AUDIO OUT
(stereo)
Component cable
