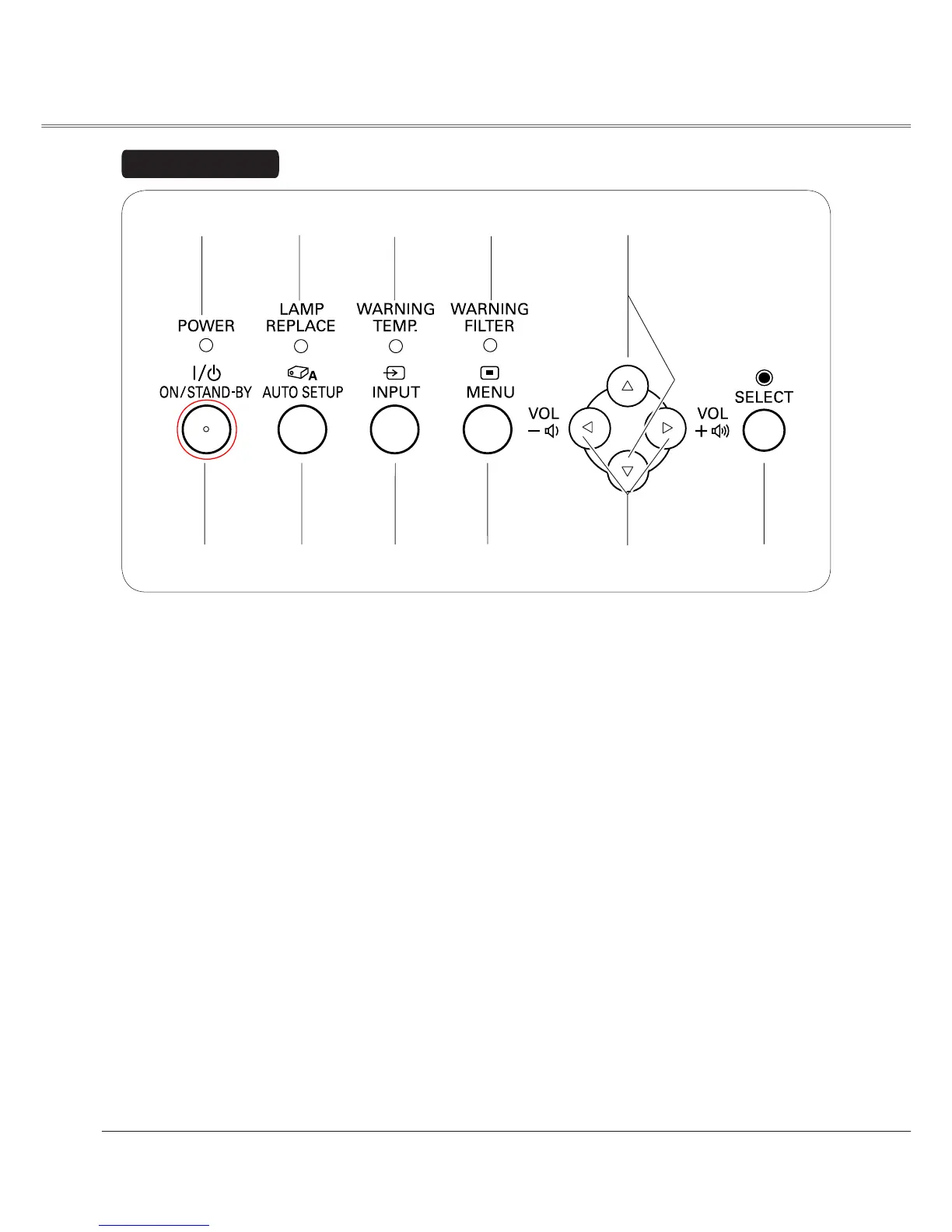

Part Names and Functions
⑤ 32,17ŸźEXWWRQV
– Select an item or adjust the value in the
On-Screen Menu. (p.21)
– Pan the image in Digital zoom + mode. (p.36)
③ WARNING TEMP. indicator
–Lights red when the projector detects an abnormal
condition.
–
Blinks red when the internal temperature
of the projector
exceeds the operating range (pp.59, 72-73).
⑪ ON/STAND–BY button
Turn the projector on or off (pp.18, 20).
① POWER indicator
–Lights red when the projector is in stand-by mode.
–Lights green during operations.
–Blinks green in the Power management mode
(p.51).
– Blink red during cooling down.
⑨ INPUT button
Select an input source (pp.27-28, 37-38).
⑧ MENU button
Open or close the On-Screen Menu (p.21).
⑦ POINT
ŻŹ
(VOLUME +/–) buttons
–Select an item or adjust the value in the On-Screen
Menu (p.21).
–Pan the image in the Digital zoom +/- mode (p.36).
–Adjust the volume level (Point ŻŹbuttons) (p.24).
⑩ AUTO SETUP button
Execute the setting of Auto setup (includes InputExecute the setting of Auto setup (includes Input
search, Auto PC adj. and Auto Keystone functions)
in the setting menu. (pp.23, 45). (pp.23, 45).
⑥ SELECT button
–Execute the selected item (p.21).
–Expand or compress the image in the Digital zoom
mode (p.36).
① ② ③ ④ ⑤
⑥
⑦
⑧
⑨⑪ ⑩
② LAMP REPLACE indicator
Turn yellow when the life of the projection lamp
draws to an end. (pp.64, 72-73)
④ WARNING FILTER indicator
– Blink slow when the filter is being scrolled.
(pp.60, 72)
– Blink fast when the filter cartridge is not installed.
(pp.60, 73)
– Light orange when the clogging of the filter is
detected or the filter counter reaches a time set
in the timer setting, urging immediate filter/filter
cartridge replacement. (pp.56, 60, 73)
