Chapter 3 Basic Operation
Name of the button on the tool bar
The following commands are assigned to the buttons on the tool bar.
Button Operation
New.................................................. Creates a new management file.
Open ............................................... Opens an existing management file.
Save ................................................. Saves the active management file.
Target monitoring................. Starts or stops target monitoring.
Target display ........................... Displays selected target information.
Alert display............................... Displays all of alert information on the status list.
Event log display.................... Displays all the event logs.
Command history display .. Displays all of the command history.
To switch the tool bar display on or off, select "Tool bar" from "Display" menu.

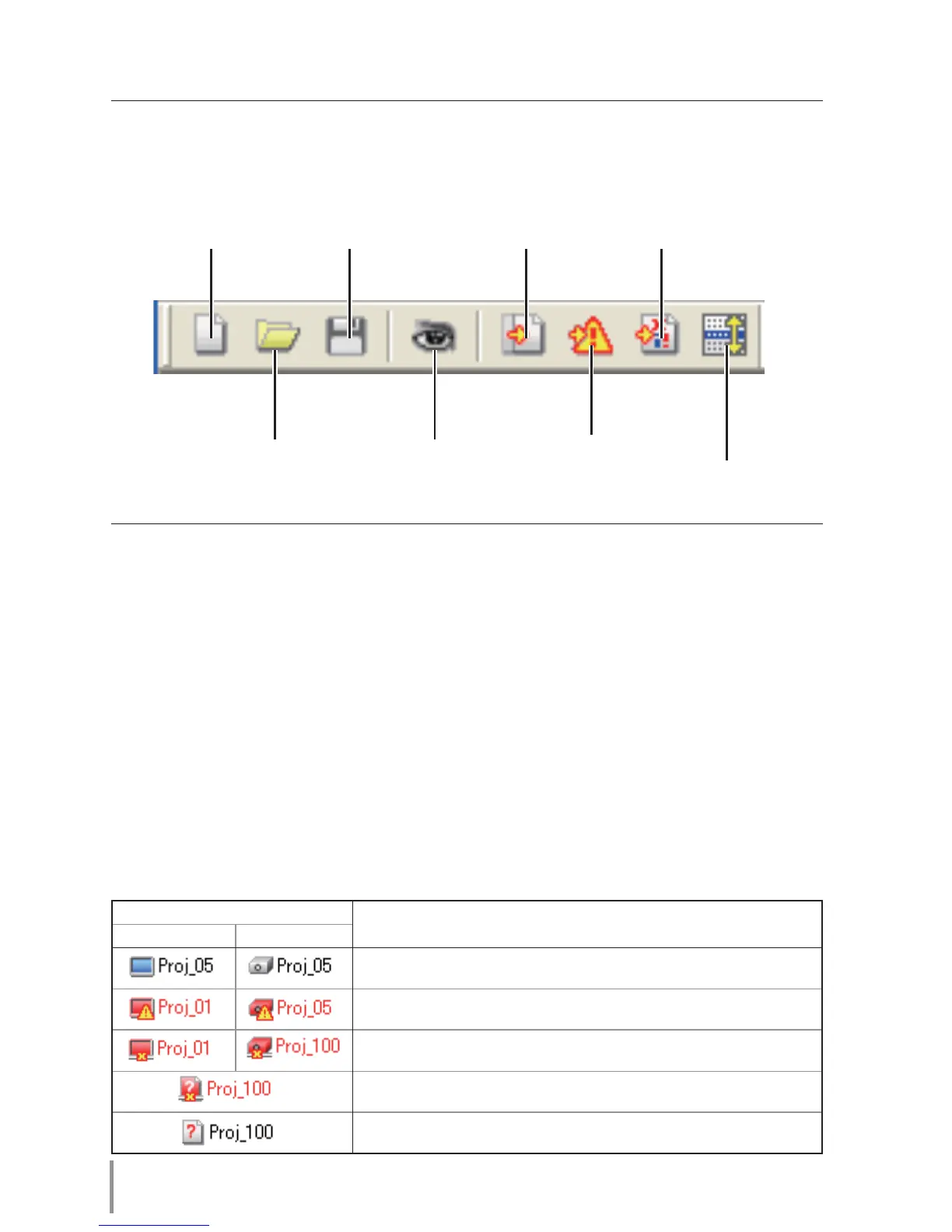

New Save Target display Event log display
Target monitoring
Start/Stop
Open
Alert display
Icon display for the target
Displays icon according to the target condition.
Icon
Condition
Flat display type Projector type
Normal
Abnormal condition (One of the abnormalities, Alert, Trap or System
error is happening on the target.)
Connection error (Target has been disconnected from the network)
Acquisition error (Target has been disconnected from the network, or
does not provide SNMP function.)
Unknown (Target monitoring is not operating)
Command history display

Sanyo PLC-XC56 Specifications

General

Brightness	2500 ANSI Lumens
Contrast Ratio	500:1
Display Technology	LCD
Aspect Ratio	4:3
Output Ports	VGA
Resolution	1024 x 768 pixels (XGA)
Projection Size	30 - 300 inches
Throw Distance	1.2 to 12.2 meters
Lamp Type	UHP
Input Ports	S-Video
Power Consumption	280 W
Noise Level	35 dB
Lamp Life	2000 hours (Normal mode), 3000 hours (Eco mode)
