-14-
Mechanical Disassembly
AV Panel
1. Remove 5 screws A (M3x8) and 3 screws B(M4x6) to remove the Right connect shield,
Lamp back shield and Right shield.
2. Remove 2 screws C (T3x8) to remove the Main Board.
3. Release the hooks and screw D (M2x4) to remove the AV Panel.
4. Remove 2 screws E(T2.5x6) to remove the Audio Jack board.
5. Remove the Speaker (SP901).

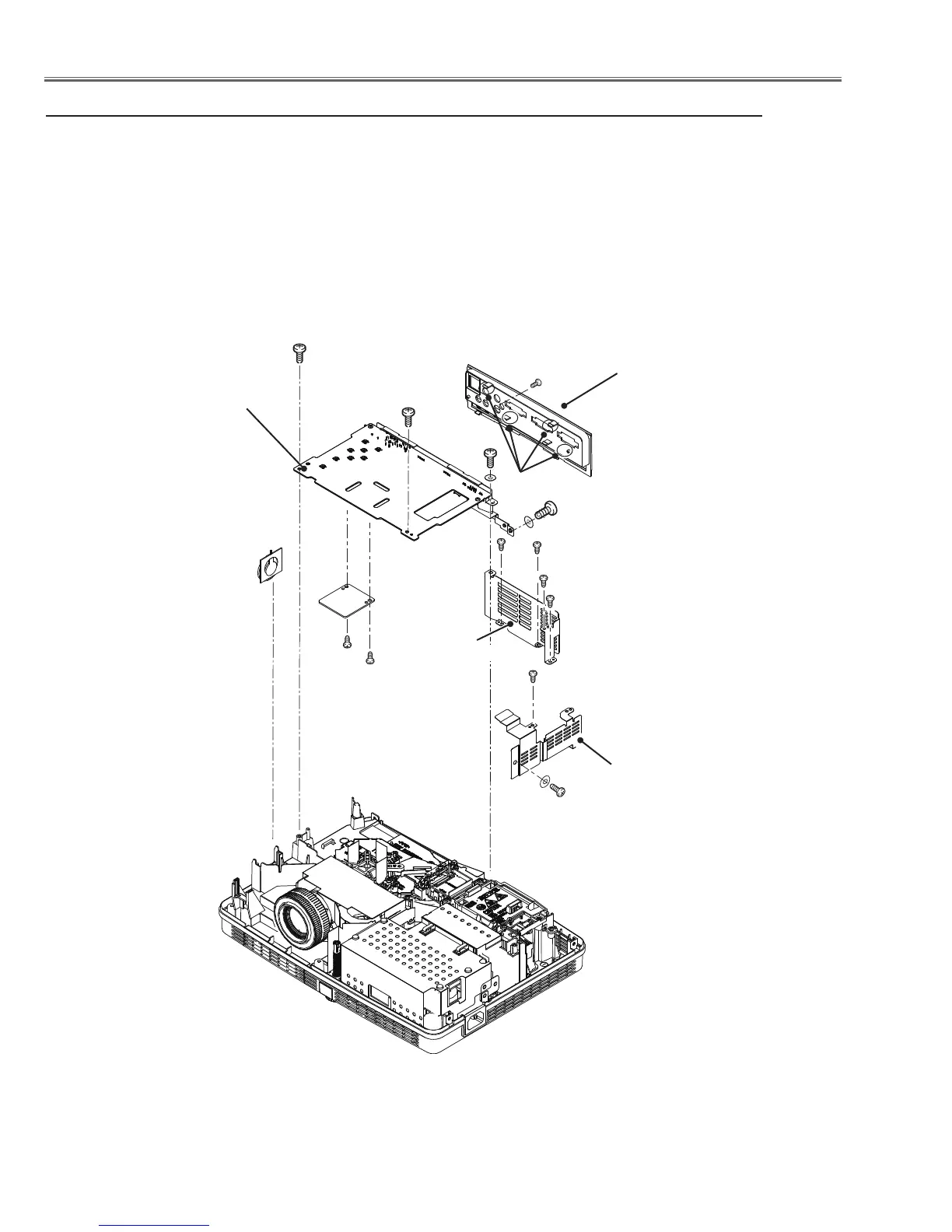

Fig.2
x Main Board, AV Panel, Audio Jack and Speaker (SP901) removal
C (T3x8)x2
C
Main Board
D (M2x4)
Hooks
B (M4x6)x3
Speaker (SP901)
B
A (M3x8)x5
B
A
A
A
A
Lamp back shield
Right shield
Audio Jack
E (T2.5x6)x2
E
