-28-
Slot B
A
b
a
y
Slot D
C
Optical Adjustments
1 Turn the projector on by a state of without FPC cables.
2 Project all of lights on the screen.
3 Adjust the adjustment base of condenser out lens assy to make
color uniformity in white.
1) If the shading appears on the left or right of the screen as shown
in Fig.3-1, loosen 1 screw A , and adjust the slot B to make
color uniformity in white by using a slot screwdriver.
2) If the shading appears on the top or bottom of the screen as
shown in Fig.3-2, loosen 2 screws C, and adjust the slots D to
make color uniformity in white by using a slot screwdriver
4 Tighten screws A and C to fix the condenser out lens unit.
Note:
The relay lens adjustment must be carried out after completing this
adjustment.

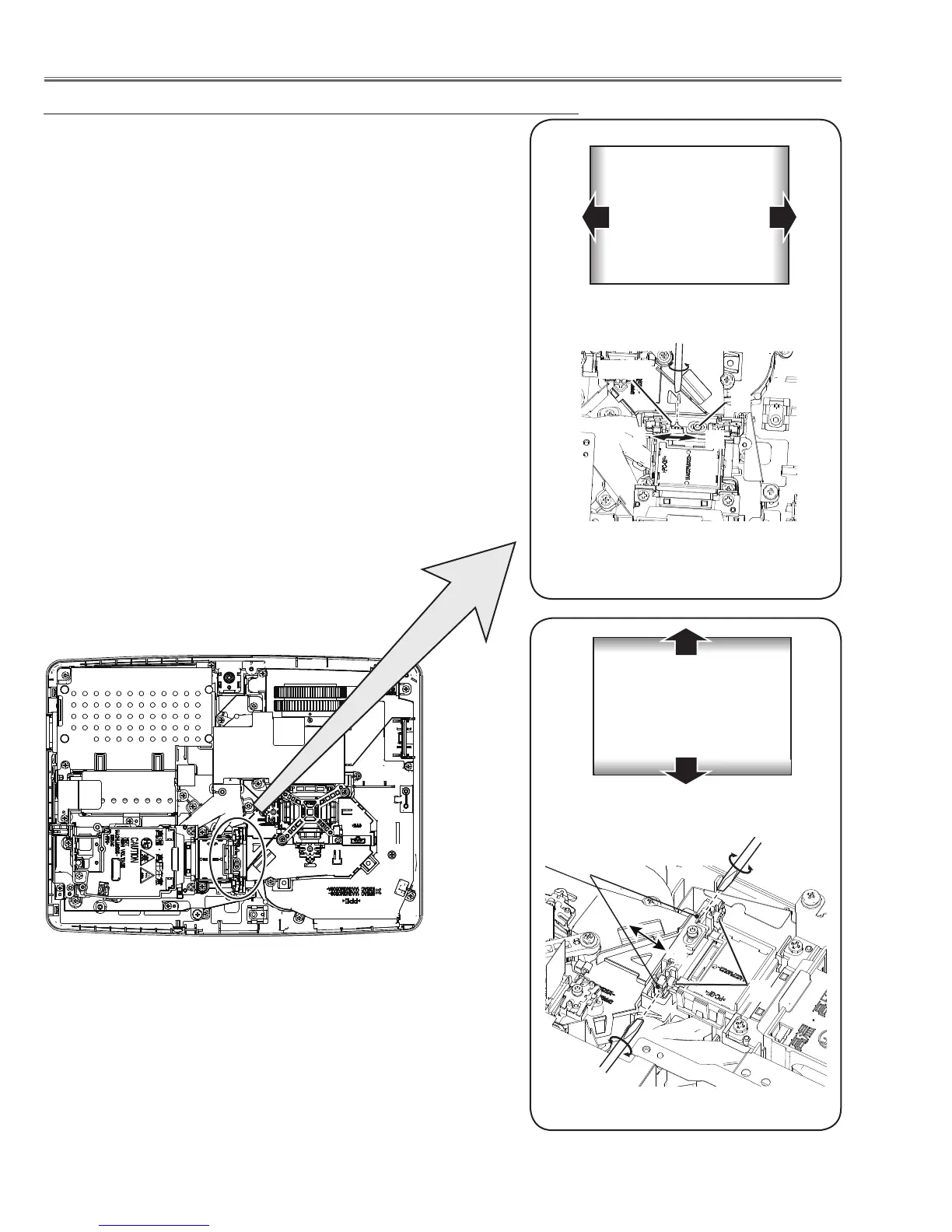

Condenser Out lens adjustment
Fig.3-2
Moving of Slot D
White
White
Moving of slot B
Fig.3-1
a
b
y
x
x
To Next Page
