Optical Parts Disassembly
2
7
Fig.7
8
1
3
5
4
4

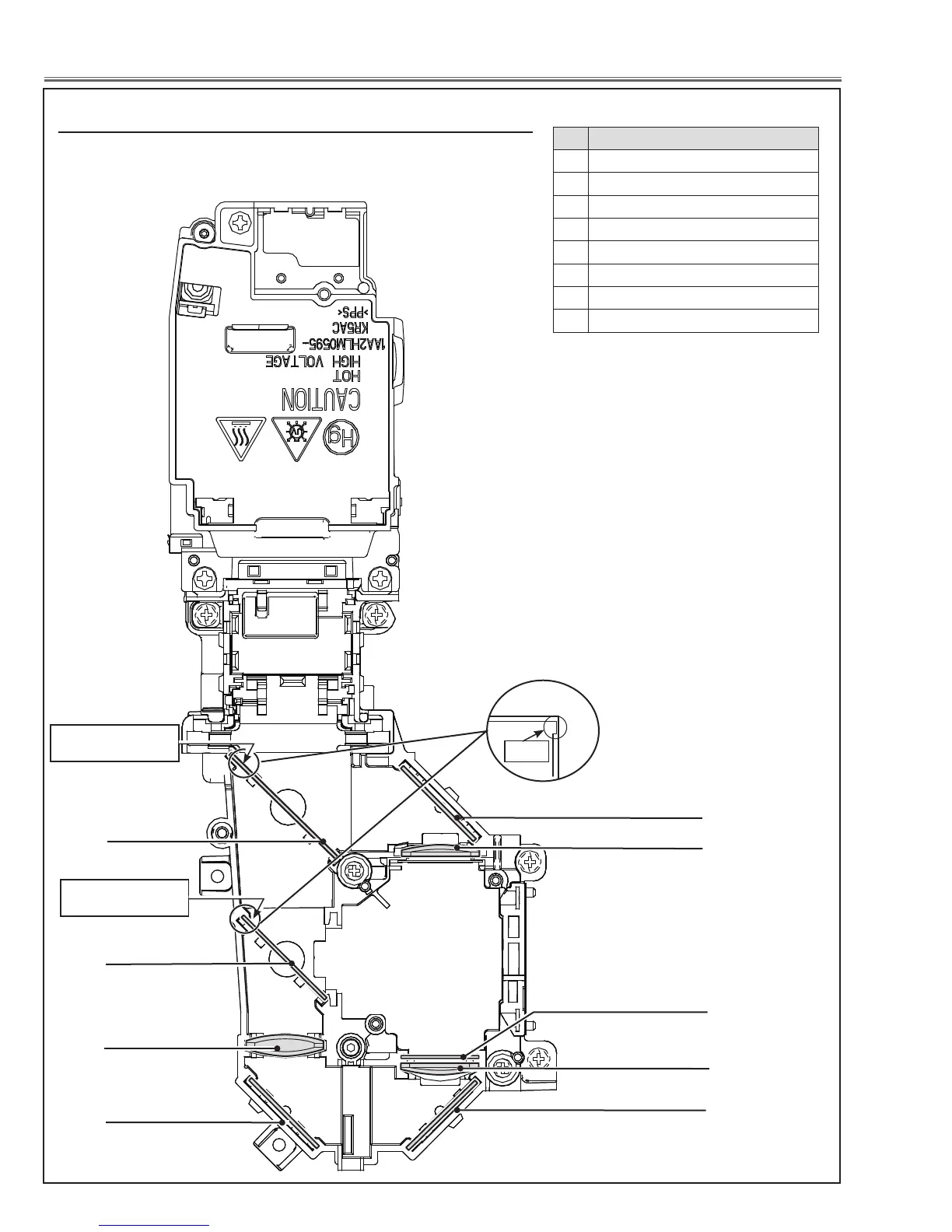

When mounting or assembling the optical parts in the op-
tical unit, the parts must be mounted in the specified loca-
tion and direction as shown in figure below.
m Locations and Directions(For KS8-XD260000)
No. Parts Name
1 Dichroic mirror (B)
2 Dichroic mirror (G)
3 Relay lens (IN)
4 Mirror (R)
5 Condenser lens (R)
6 Polarized glass (IN/R)
7 Condenser lens (B)
8 Mirror (B)
Marker
6
Marker comes this
side up
Marker comes this
side up
