12
①ON/STAND-BY button
Turn the projector on or off (pp.23-24).
②MENU button
Open or close the On-Screen Menu (p.25).
⑤Point ŸźŻŹ ( VOLUME – / + ) buttons
– Select an item or adjust the value in the On-
Screen Menu (p.25).
– Pan the image in Digital zoom + mode (p.43).
±$GMXVWWKHYROXPHOHYHOZLWK3RLQWŻŹEXWWRQV
(p.28).
⑩WARNING TEMP. indicator
Blink red when the internal temperature of the
projector exceeds the operating range (pp.69,
76-78).
④
SHUTTER button
Close and open up the built-in shutter. (p.27)
⑧POWER indicator
– Light green while the projector is in stand-by mode.
– Light green during operations.
– Blink green in the Power management mode (p.57).
③SELECT button
– Execute the selected item (p.25).
– Expand or compress the image in the Digital
zoom mode (p.43).
⑨LAMP indicator
Light red during operations.
⑬LAMP REPLACE indicator
Light orange when the projection lamp reaches
its end of life (pp.66, 77).
⑪WARNING FILTER indicator
– Blink slow when the filter is being scrolled
(pp.63, 76).
– Blink fast when the filter scroll is not working
properly or the filter cartridge is not installed
(pp.63, 78).
– Light orange when the clogging of the filter is
detected or the filter counter reaches a time
set in the timer setting, urging immediate
filter/ filter cartridge replacement (pp.62, 63,
78).
①

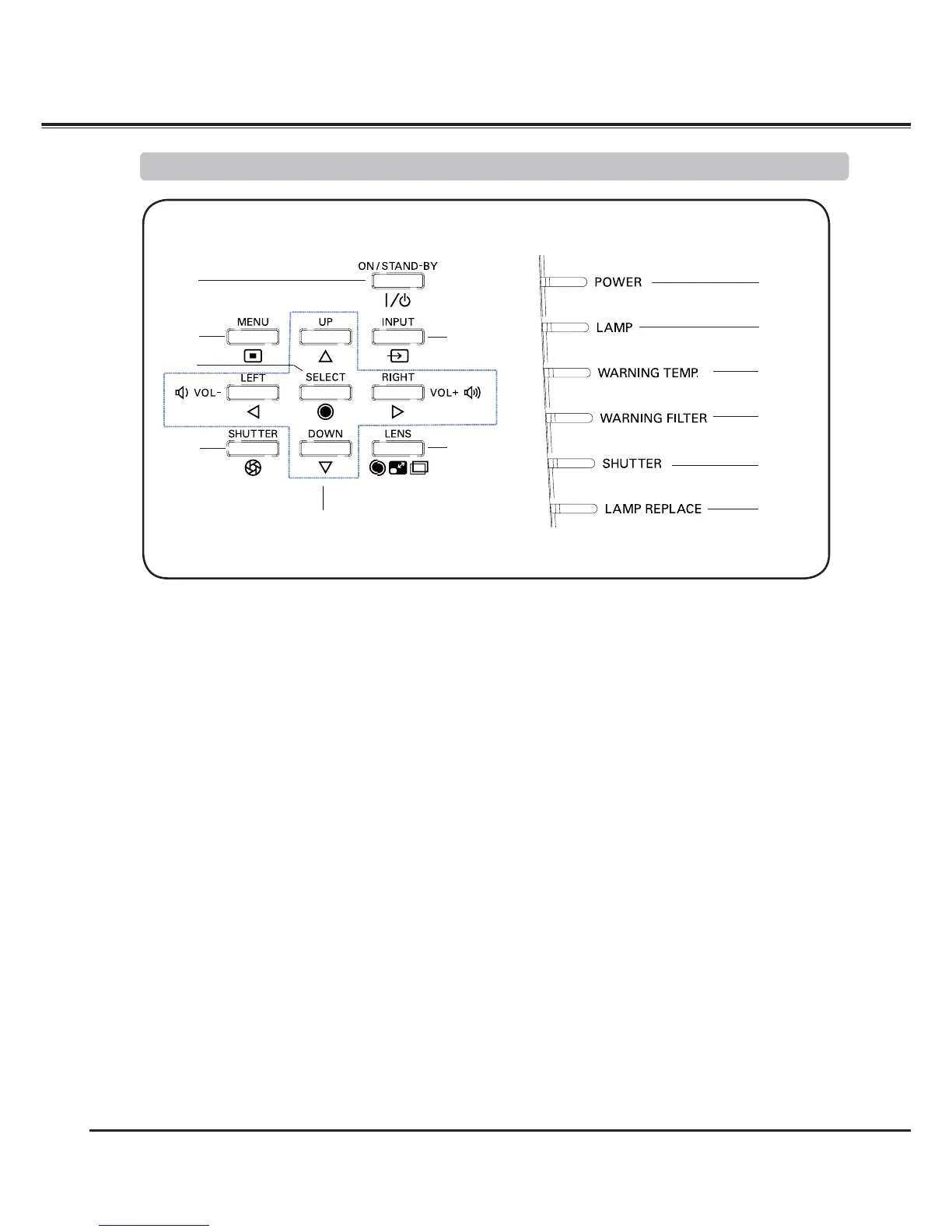

Side Control
Indicators (on the top panel)
Part Names and Functions
⑦INPUT button
Select an input source (pp.33-35).
⑥LENS button
Enter the focus, zoom, and lens shift adjustment
mode (p.27).
②
④
⑥
③
⑤
⑦
⑨
⑧
⑩
⑪
⑫
⑬
⑫
SHUTTER
indicator
Light blue when the shutter is closed (p.76).
Side Control and Indicators
