Note:
• The brightness in the room has a great influence on picture quality.
It is recommended to limit ambient lighting in order to obtain the best image.
• The values shown below are approximate and may vary from the actual sizes.

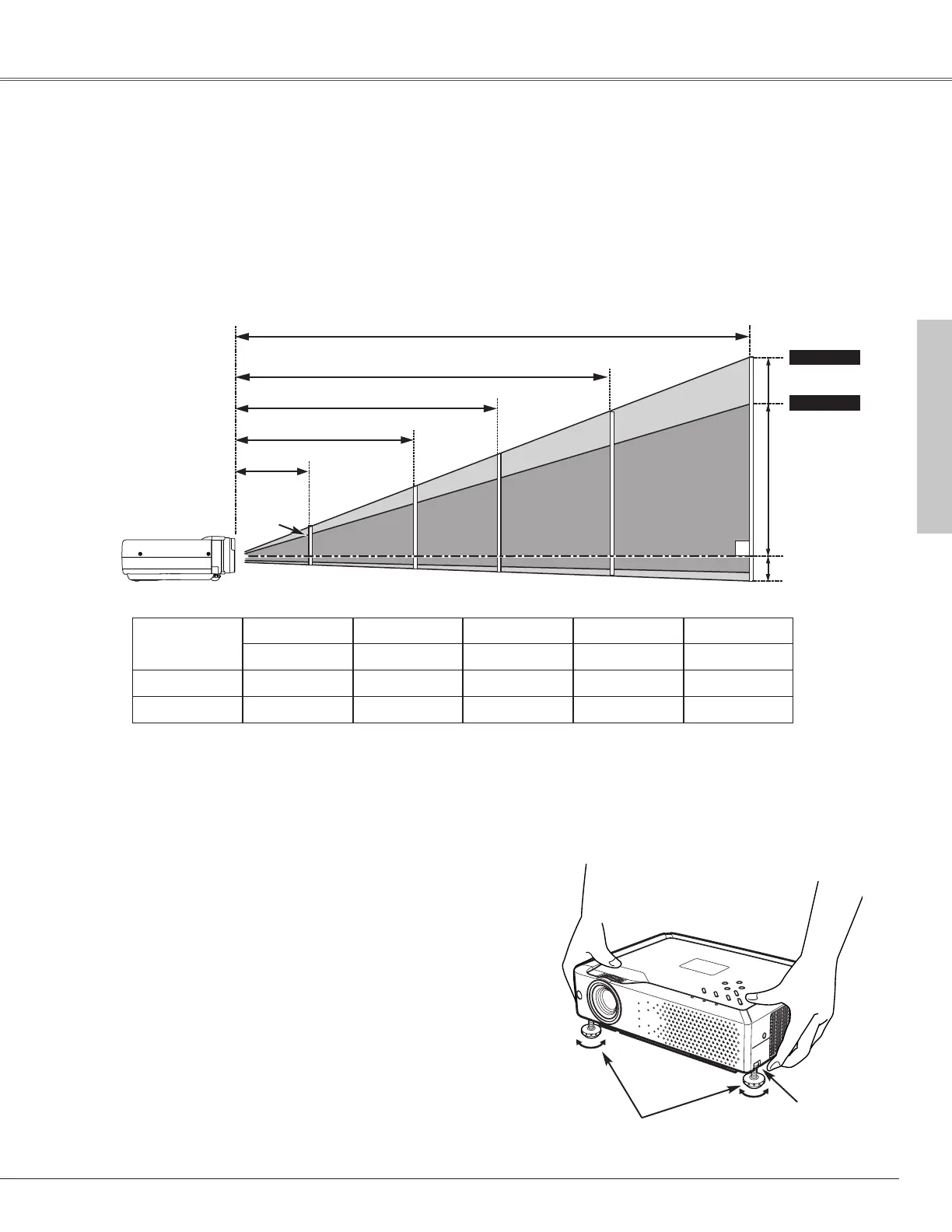

Positioning the Projector
Installation
43.3' (13.2m)
23.9' (7.3m)
18.0' (5.5m)
11.8' (3.6m)
Max. Zoom
Min. Zoom
A : B = 10 : 1
Screen Size
(W x H) mm
4 : 3 aspect ratio
Zoom (min)
40”
Zoom (max)
813 x 610
5.6' (1.7m)
4.6' (1.4m)
100”
2032 x 1524
14.4' (4.4m)
11.8' (3.6m)
150”
3048 x 2286
21.7' (6.6m)
18.0' (5.5m)
200”
4064 x 3048
28.9' (8.8m)
23.9' (7.3m)
300”
6096 x 4572
43.3' (13.2m)
36.1' (11.0m)
(Inch Diagonal)
4.6' (1.4m)
For projector positioning, see the figures below. The projector should be set horizontally to the flat screen.
(Center)
Installation
33"
Projection angle can be adjusted up to 10.0 degrees with
the adjustable feet.
Lift the front of the projector and pull upward the feet
lock latches on both sides of the projector.
1
Adjustable Feet
Feet Lock Latches
Release the feet lock latches to lock the adjustable
feet and rotate the adjustable feet to adjust the
position and tilt.
2
To retract the adjustable feet, lift the front of the
projector and pull and undo the feet lock latches.
Keystone distortion of the projected image can be
corrected by menu operation. (p22, 41)
3
Adjustable Feet
To Next Page
