Sanyo PLC-XU70 - Projector Components Overview

8
Bottom
Back
q Infrared Remote Receiver
w Zoom Ring
e Projection Lens
r Focus Ring
t Lens Cover
(See page 50 for attaching.)
y Top Controls and Indicators
u Speaker
i Air Intake Vent
o Power Cord Connector
!0 Terminals and Connectors
!1 Lamp Cover
!2 Air Intake Vents (back and bottom)
!3 Air Filters
!4 Adjustable Feet
!5 Exhaust Vents
!5
y
!4
!1
!3
!2
o
!0
CAUTION
Hot air is exhausted from the exhaust
vent. Do not put heat-sensitive objects
near this side.
q w e r t !5
Front

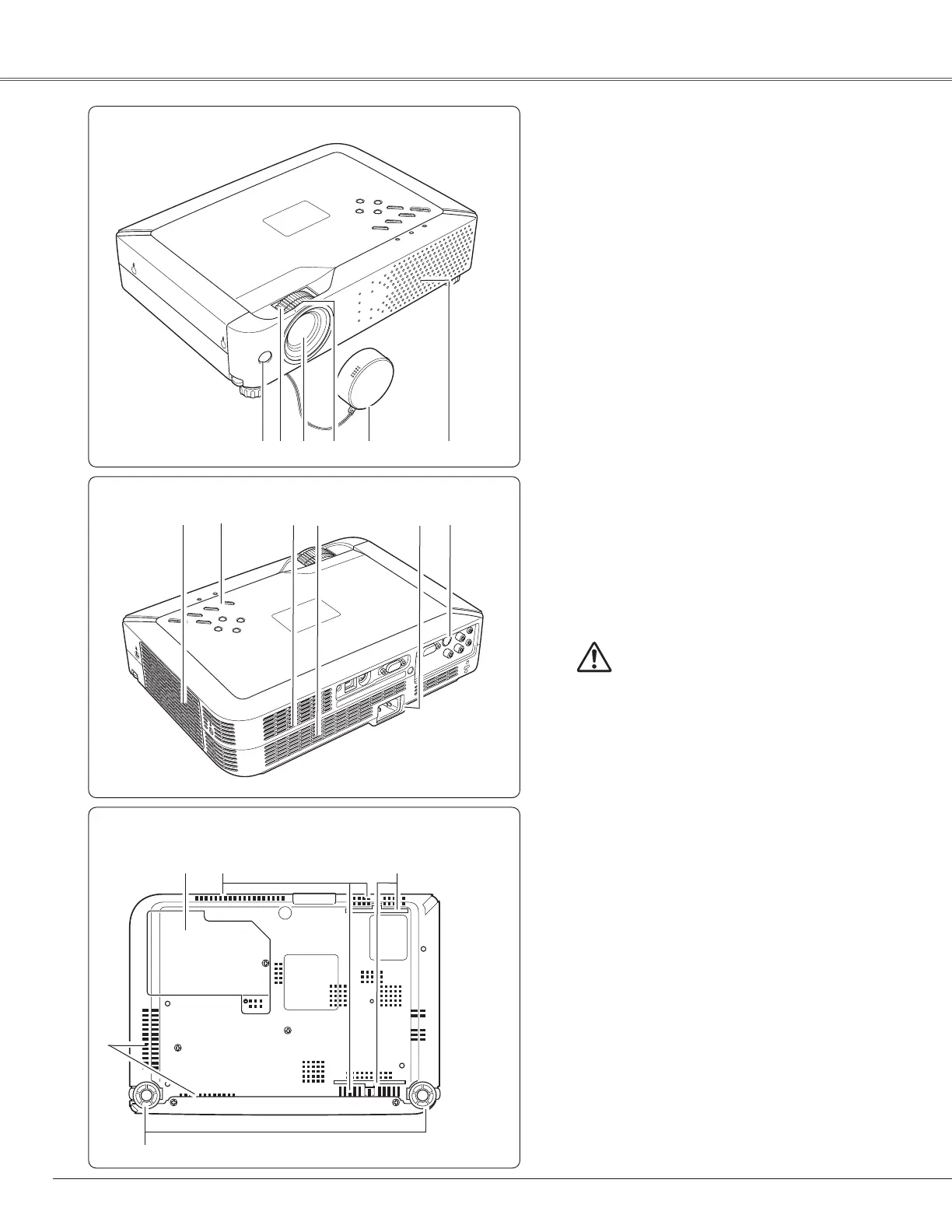

Part Names and Functions
!5
i
u
