Sanyo PLC-XU70 User Manual

17
Installation
Connecting to Component Video Equipment
S-VIDEO IN
MONITOR OUT
COMPUTER IN 2 /
COMPUTER /
COMPONENT
AUDIO IN
R
VIDEO IN
L
(MONO)
(VARIABLE)
AUDIO OUT
COMPUTER IN 1
/ COMPONENT IN
USB
SERVICE PORT
RESET

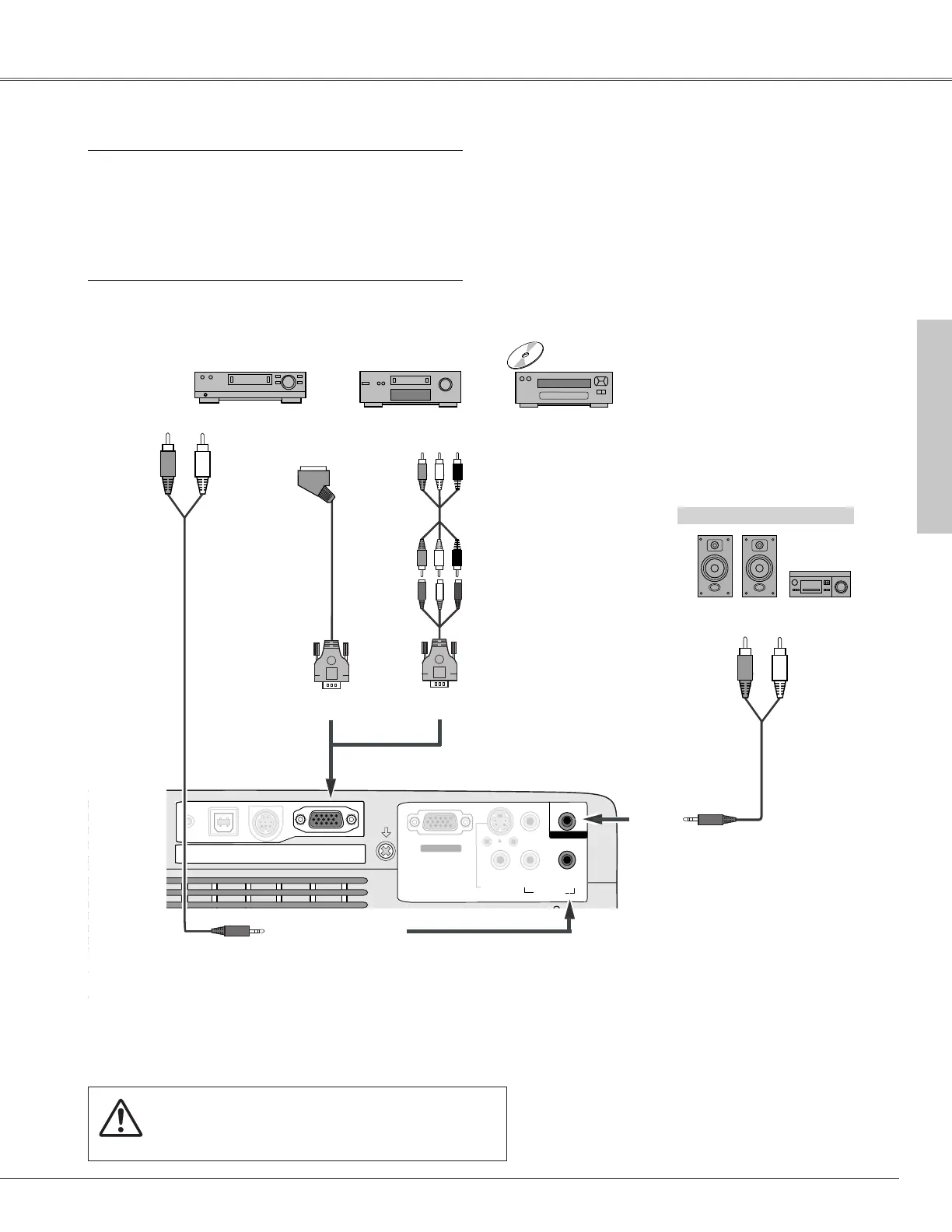

Cables used for connection
• Audio Cables (Mini Plug :stereo) ✽
• Scart-VGA Cable ✽
• Component Cable ✽
• Component-VGA Cable ✽
(✽ = Not supplied with this projector.)
✔
Note:
• When connecting AUDIO OUT to external audio equipment, the
projector's built-in speaker is disconnected.
• See p61 for ordering optional parts.
External Audio Equipment
COMPUTER IN 1/ COMPONENT IN
COMPUTER/
COMPONENT
AUDIO IN
Audio cable ✽
(stereo)
Audio cable ✽
(stereo)
Audio Input
Component Video Output
(Y, Pb/Cb, Pr/Cr)
RGB Scart 21-
pin Output
Audio Output
Scart-VGA
cable ✽
Component-VGA
cable✽
AUDIO OUT
(stereo)
Component
cable✽
Installation
When connecting the cable, the power cords of both the
projector and the external equipment should be
disconnected from AC outlet.
