Installation

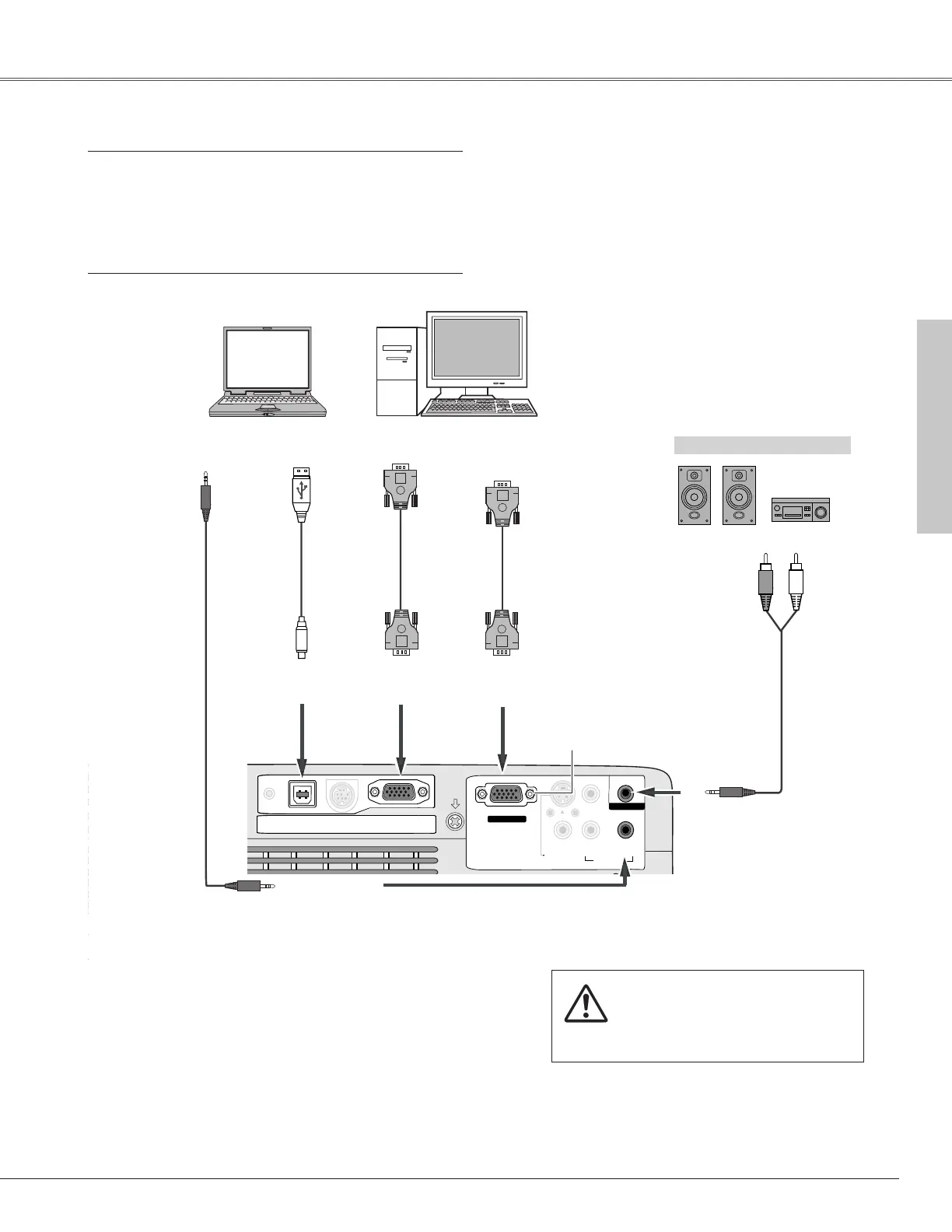

Connecting to a Computer
ONON
S-VIDEO IN
MONITOR OUT
COMPUTER IN 2 /
COMPUTER /
COMPONENT
AUDIO IN
R
VIDEO IN
L
(MONO)
(VARIABLE)
AUDIO OUT
COMPUTER IN 1
/ COMPONENT IN
USB
SERVICE PORT
RESET
Cables used for connection
• VGA Cables (Mini D-sub 15 pin) (Only one cable is supplied.)
•USB Cable ✽
• Audio Cables (Mini Plug: stereo) ✽
(✽ = Not supplied with this projector.)
External Audio Equipment
VGA cable USB cable ✽
Audio cable
(stereo) ✽
Audio cable ✽
(stereo)
Monitor Output
or
Monitor Input
USB portAudio Output
USB
COMPUTER/
COMPONENT
AUDIO IN
AUDIO OUT
(stereo)
Audio Input
COMPUTER IN 2/
MONITOR OUT
When connecting the cable, the power
cords of both the projector and the
external equipment should be
disconnected from AC outlet.
✔
Note:
• Input sound to the COMPUTER / COMPONENT AUDIO IN
terminal when using the COMPUTER IN 1 / COMPONENT IN and
the COMPUTER IN 2/MONITOR OUT terminal as input.
• When connecting the AUDIO OUT to external audio equipment,
the projector's built-in speaker is disconnected.
• When the cable is
of the longer variety
, it is advisable to use the
COMPUTER IN 1 / COMPONENT IN and not the COMPUTER IN
2 / MONITOR OUT.
• See p61 for ordering optional parts.
Monitor Output
COMPUTER IN 1/
COMPONENT IN
VGA cable
This terminal is switchable. Set up the
terminal as either Computer input or
Monitor output. (See Page 44.)
Installation
