16
S-VIDEO IN
MONITOR OUT
COMPUTER IN
2 /
COMPUTER
/
COMPONENT
AUDIO IN
R
VIDEO IN
L
(MONO)
(VARIABLE)
AUDIO OUT
COMPUTER IN
1
/ COMPONENT IN
USB
SERVICE PORT
RESET
Installation

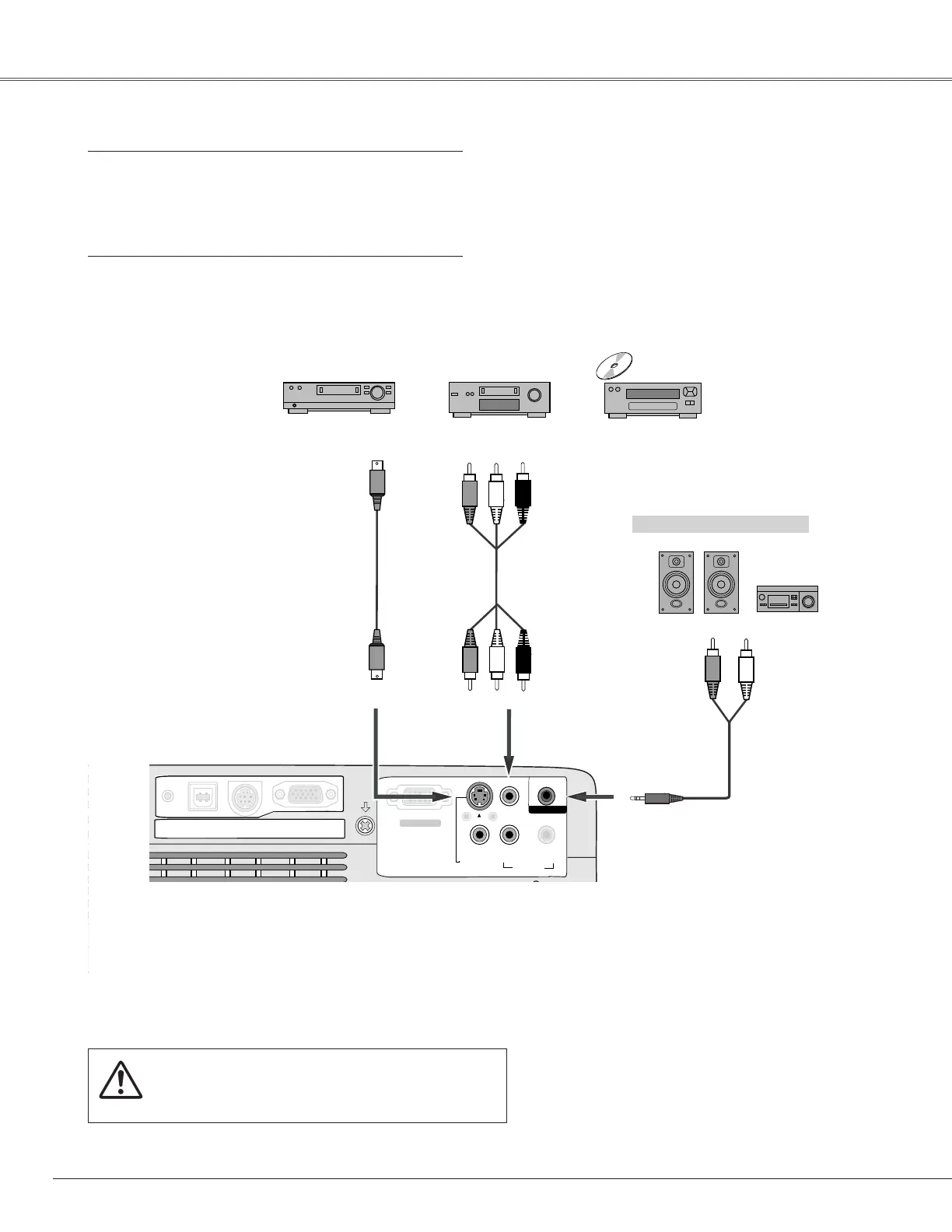

Connecting to Video Equipment
Cables used for connection
• Video and Audio Cable (RCA x 3)
• S-VIDEO Cable
• Audio Cable (Mini Plug: stereo)
(= Not supplied with this projector.)
Note:
• When connecting AUDIO OUT to external audio equipment, the
projector's built-in speaker is disconnected.
• See p61 for ordering optional parts.
External Audio Equipment
Audio cable
(stereo)
VIDEO
S-VIDEO
S-Video cable Video and audio cable
Composite Video and Audio OutputS-Video Output
AUDIO IN
Audio Input
AUDIO OUT
(stereo)
(R) (L)
(R) (L) (Video)
(Video)
When connecting the cable, the power cords of both the
projector and the external equipment should be
disconnected from AC outlet.
