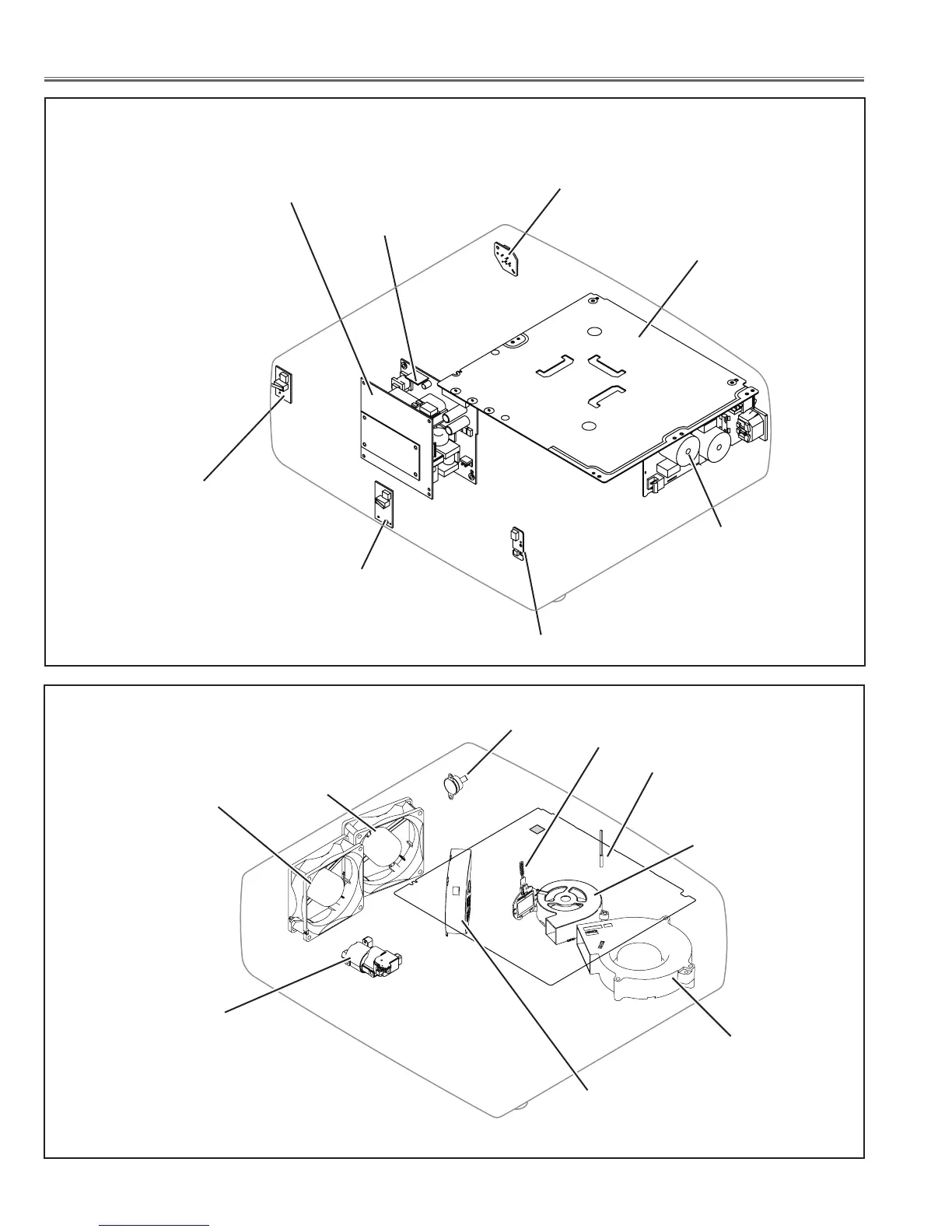

A100
Main board
A902
Power unit
A901
Ballast unit
A601
Filter board
A8801
Door switch1 board
A8802
Door switch2 board
A8803
Lamp switch board
A101
R/C board
Front
● Assembled Board
● Out of Circuit Board
Front
FAN (FN902)
(Exhaust)
FAN (FN905)
(Intake)
FAN (FN904)
(Intake)
FAN (FN903)
(Exhaust)
FAN (FN901)
(Exhaust)
Door Motor
Thermal Switch (SW902)
Thermistor (TH901)
Thermistor (TH902)
- 90 -
- 90 -
