OTHER DEVICES AND CONNECTIONS
CONNECTING TO A TV
CONNECTING TO A TV
CONNECTING TO A STANDARD
VIDEO INPUT TERMINAL

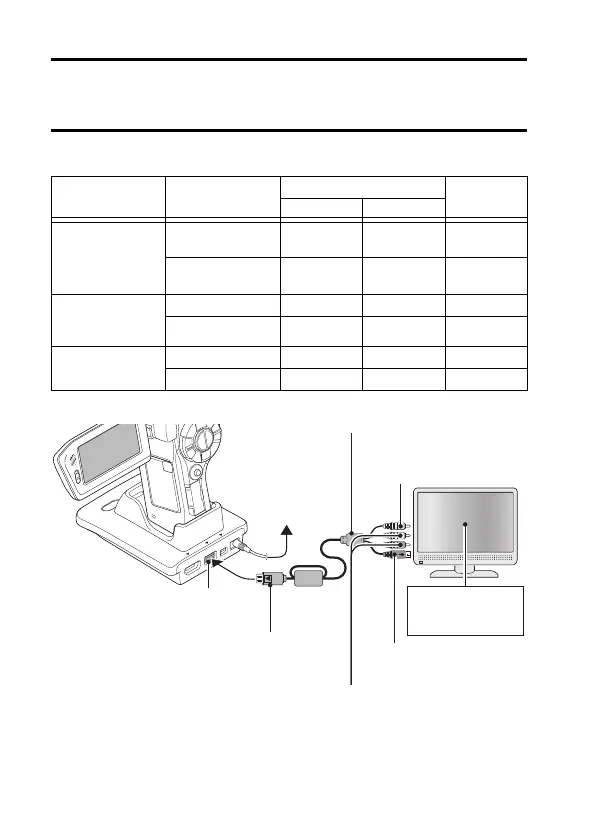

About image output: The image output destination differs depending on the
connection cable.
m: Images are output n: Images are not output
* When connected, the images are not produced normally on the TV monitor.
Connection
cable
Image output
destination
Recording mode
Playback
mode
Standby Recording
Dedicated S-AV
interface cable
Camera monitor
NTSC:
n
PA L: m
m
n
TV
NTSC: m
PA L: n
nm
Dedicated
component
cable
Camera monitor nmn
TV mnm
HDMI cable
Camera monitor nmn
TV mnm
To AC adaptor
Ye l l o w p l u g :
To Video Input terminal
Dedicated S-AV interface cable
i Insert the plug with the
[n] mark facing up.
COMPONENT/AV terminal
White plug: To Audio Input (L) terminal
Red plug: To Audio Input (R) terminal
Not connected*
Set the input to
“VIDEO”.
To Next Page
