54

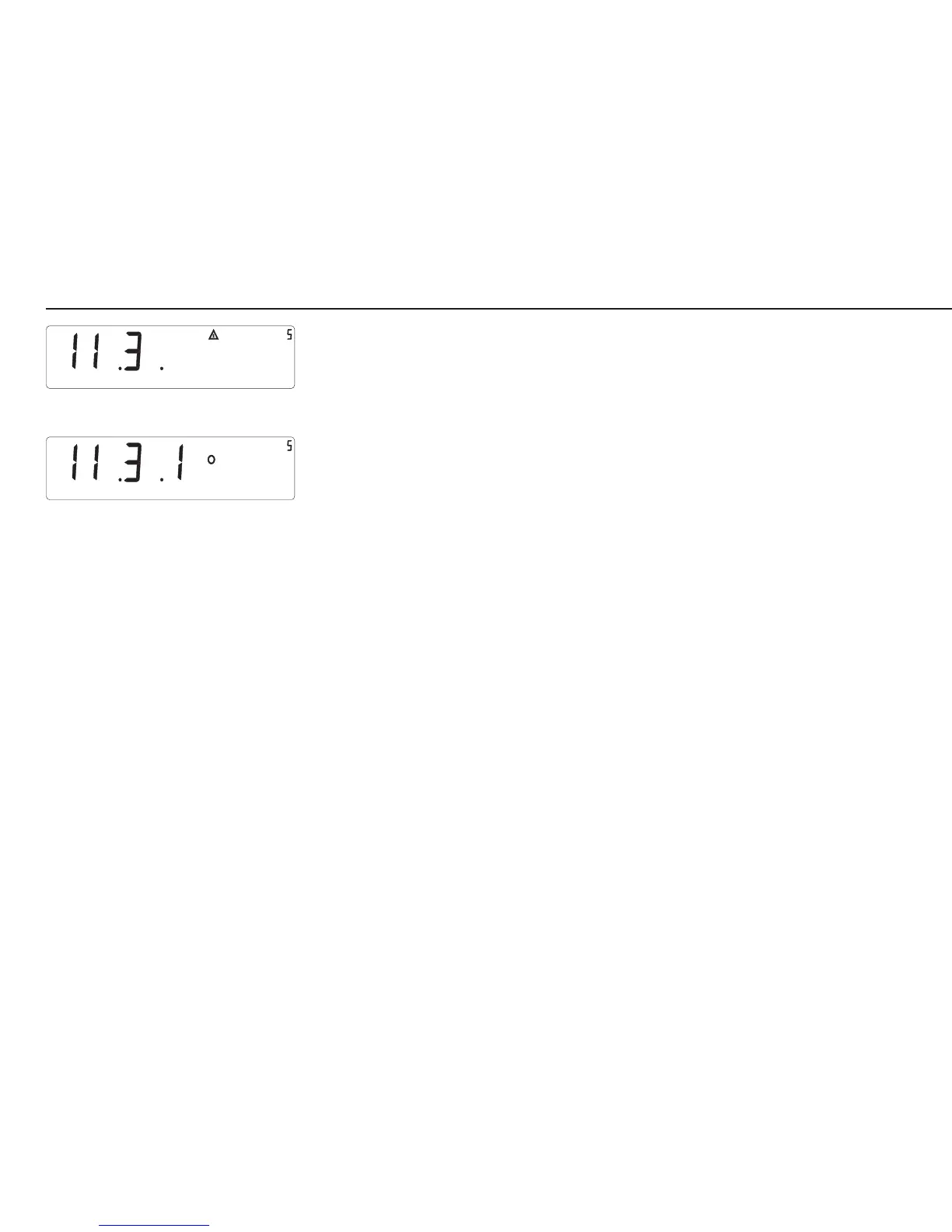

– Press the key sequence ( k k to open menu item 11-3 (Selecting the
weighing range structure).
– Press ) to confirm your selection.
In the example shown here, menu item 11-3-1 (Single-range scale) has been
selected.
– Press ( to return to menu item 11-3.
Note: Enter the scale interval, minimum load, range limits (multiple-range or multi-
interval scales only) and maximum capacity:
The menu line corresponding to the selected weighing range structure is displayed;
i.e.
– for single-range scale (menu item 11-3-1): in relation to menu item 11-4;
– for multiple-range scale (menu item 11-3-2): in relation to menu item 11-5;
– for multi-interval scale (menu item 11-3-3): in relation to menu item 11-6.
In each case, the menu lines for the other two weighing range structures are not
shown.
In this example, 11-3-1 (Single-range scale) has been selected.
Thus menu line 11-4 is opened automatically. Menu lines
11-5 and 11-6 are not available.
display_serv_113.eps
display_serv_1131w.eps
