Getting Started
22 Cubis MSE Operating Instructions

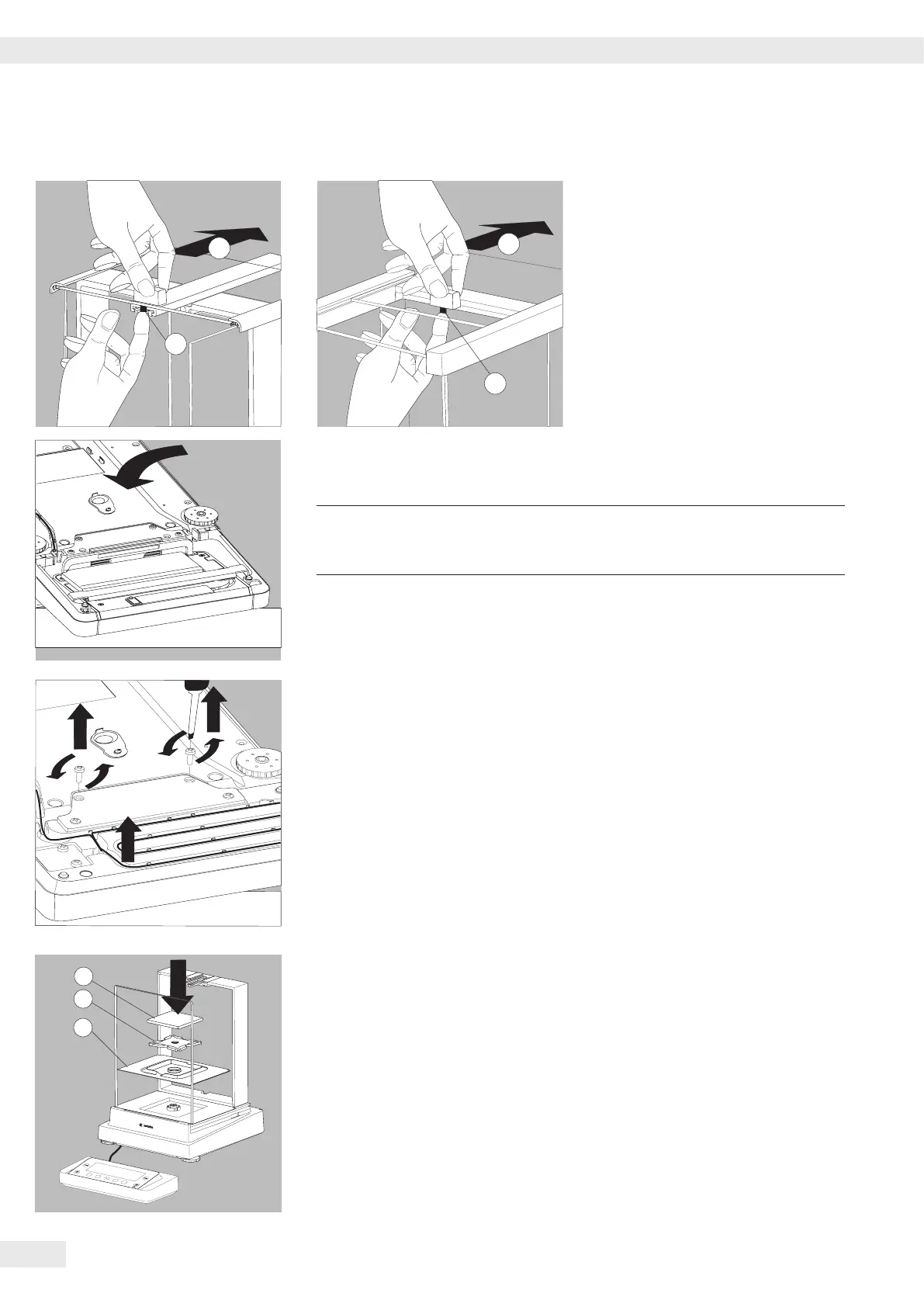

t Remove the upper draft shield panel�
Models with the analytical draft shield
(left illustration)�
1. Press on the locking tab�
2. Remove the panel�
Models with the milligram draft shield
(right figure):
1. Press on the locking tab�
2. Remove the panel�
t Keep all parts in a safe place�
t Turn over the balance and place it on a soft surface�
3
Exercise caution to avoid breaking the glass on models with a draft
shield�
t Use a 2�5 mm Allen wrench to remove the two screws from the display and
control unit retainer bracket�
t Remove the display and re-insert both screws back into their holes�
t Lengthen the cable and position the display and control unit as desired�
t Turn the balance over and place it on an even surface�
t Carefully place all parts on the balance:
1. Shield plate/Draft shield
2. Pan support (not for MSE225… /MSE125… models)
3. Weighing pan
2
1
3
