20
Service Manual Signum
Working with the Service Mode

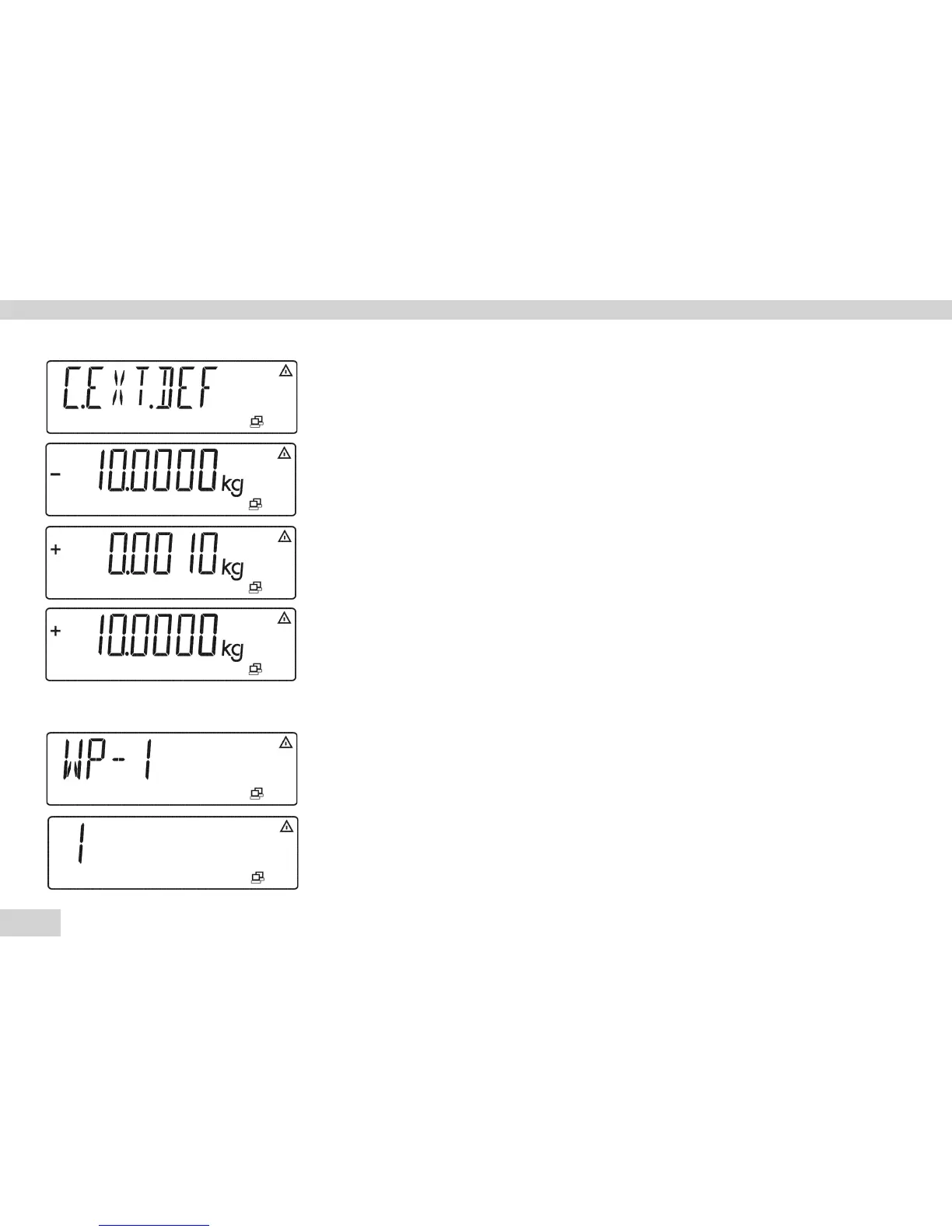

– After taring or zeroing the display of the scale, press and hold the J key until
»C.EXT.DEF« is displayed.
Press the J key to continue the calibration/adjustment routine.
– After approx. 2 seconds, the required calibration weight is shown in the display.
– Place the required weight on the scale. After a brief pause, the difference
between the current value and the value from the last adjustment (calibration
procedure) is displayed.
– To interrupt the calibration/adjustment procedure, press the ( key.
– Press the J key to calibrate/adjust the scale and display the value if menu »1-
10-2« has been selected.
1-9-3 External Calibration/Adjustment with User-Defined Weights
– Select weighing platform »WP-1«.
– Press the ) key to access the number menu.
3)
Only displayed if menu code »1-10-2 (Calibration with manual adjustment) has been selected
cal_def.eps
Display_WP1_Serv.eps
Display_Serv_01.eps
-100000kg.eps
+0.0010.eps
+100000kg.eps
3)
