56
Service Manual Signum
Working with the Service Software
Setting the XBPI-232 Protocol
You need to set the scale to the XBPI protocol (BPI-232) in order to perform
calibration/adjustment procedures or program the scale using the service
software.

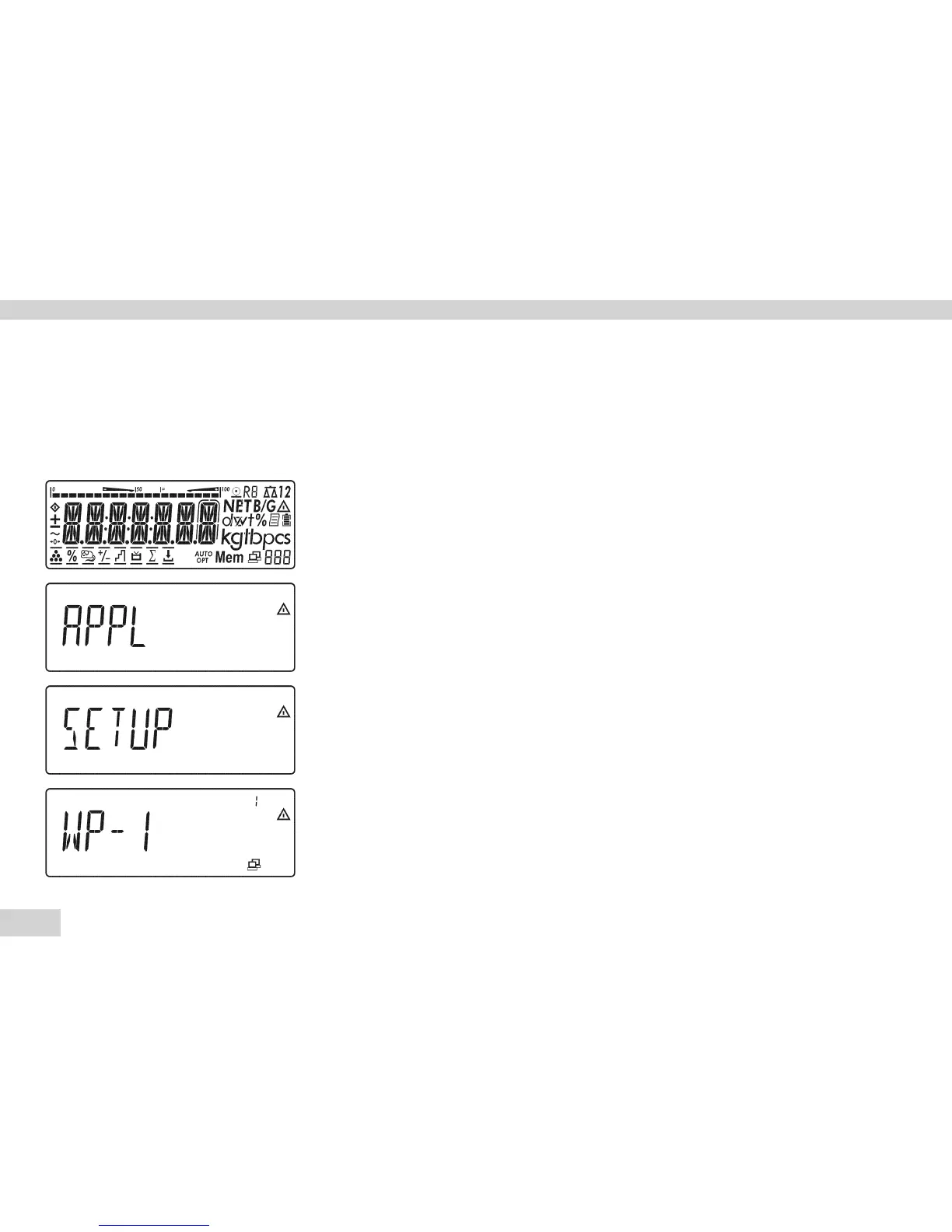

– Switch the Signum scale off (press the e key).
– Switch the Signum scale back on (by pressing the e key). While all
segments are displayed, briefly press the ) key.
APPL appears in the display.
– Using the k key, scroll to SETUP.
– Press the ) key. WP-1 is displayed.
disp_wp-1_d.eps
disp_8888_d.eps
disp_appl_d.eps
disp_setup_d.eps
