Sartorius Signum 2 - Replacing the Front Panel; Replacing the Cable

35
Service Manual Signum
Repairing the Display Unit

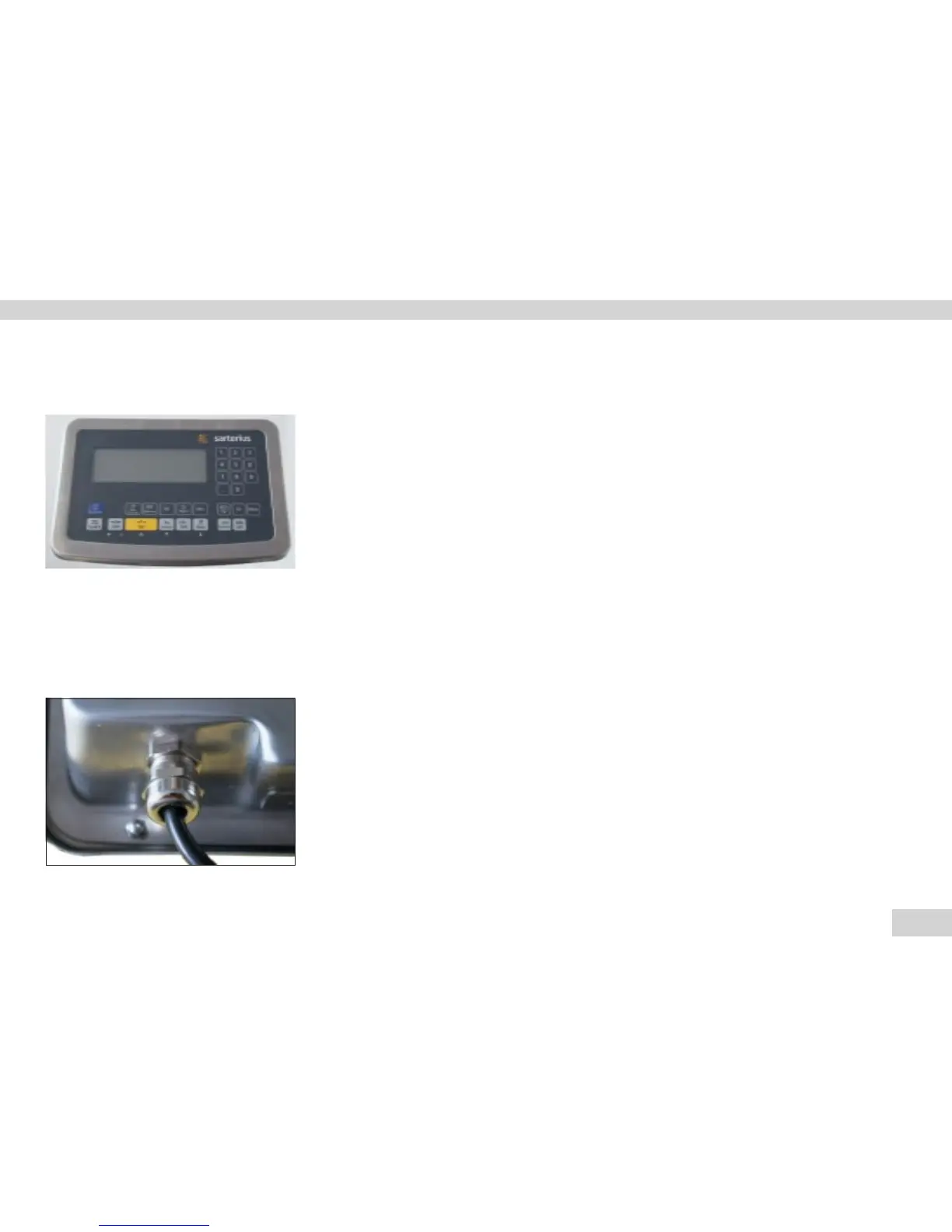

Replacing the Front Panel
In the case of a defective keypad overlay, keys, or display, the entire front panel
must be replaced (see the picture on the left).
– Open the display unit (see page 34)
- Replace the entire front panel with a new one
- Close the display unit (see page 34)
Replacing the Cable
– Open the display unit (see page 34)
- Unplug all connectors from the cable
- Loosen the screw
- Replace the cable with a new one
- Close the display unit (see page 34)
– After replacing the cable, use a torque wrench to tighten the cable gland to
3 Nm.
