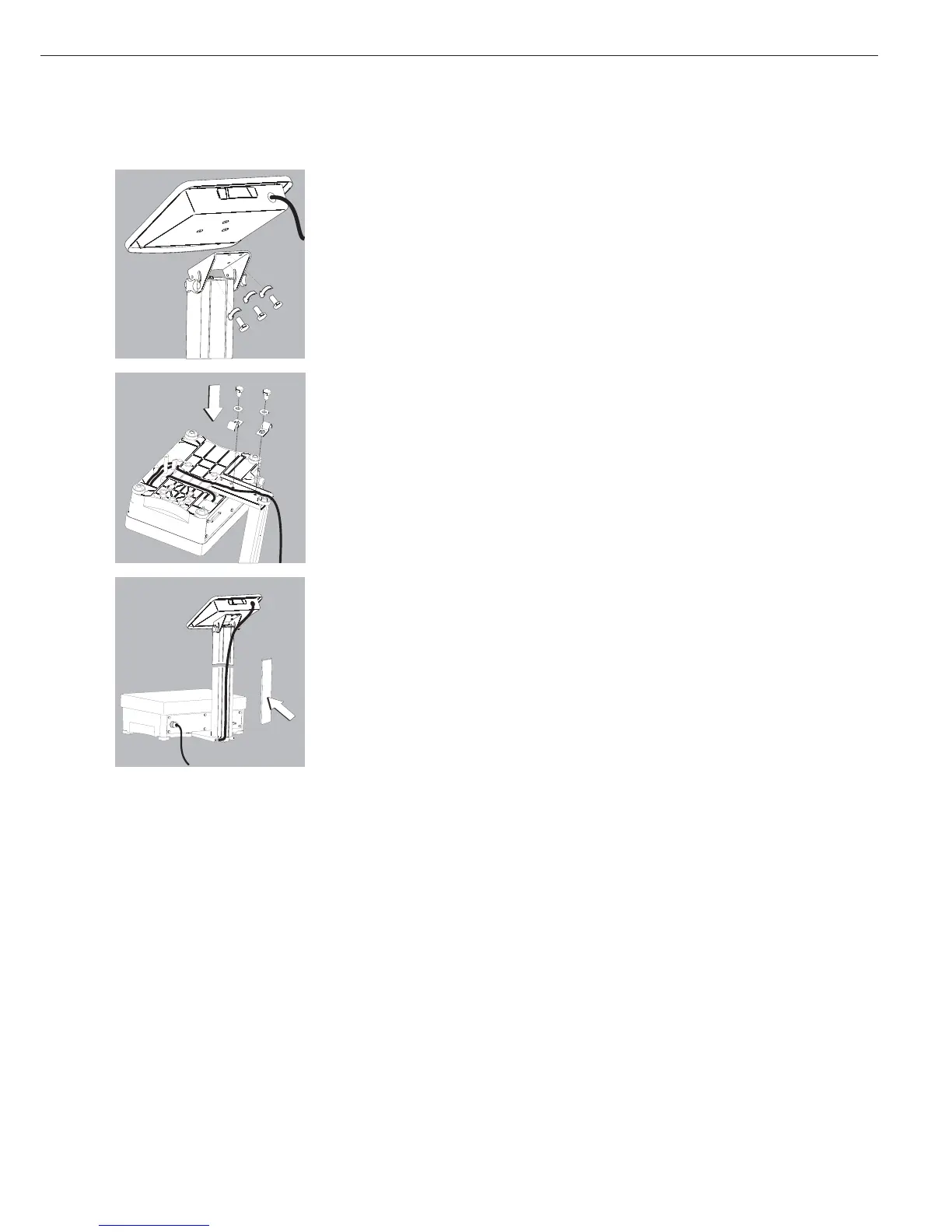

§ Loosen the two locking bolts at the top of the column to facilitate installation
of the display and control unit.
§ Use the 6 hexagonal screws to attach the display and control unit to the top
of the column.
§ Adjust the display and control unit to the desired angle and
tighten the locking bolts at the top of the column.
§ A recessed space is provided in the scale base, accessed from the bottom of the scale,
for any excess length of cable.
§ Guide the connecting cable along the channel on the bottom of the weighing platform.
§ Use the cable clamps provided to affix the cable that connects the display and control
unit to the weighing platform to the bottom of the column.
§ Turn the weighing platform right side up and place it so that it rests on its feet.
§ Attach the cable retainer to affix the cable connecting the display and control
unit to weighing platform to the back of the column.
