Interface Port

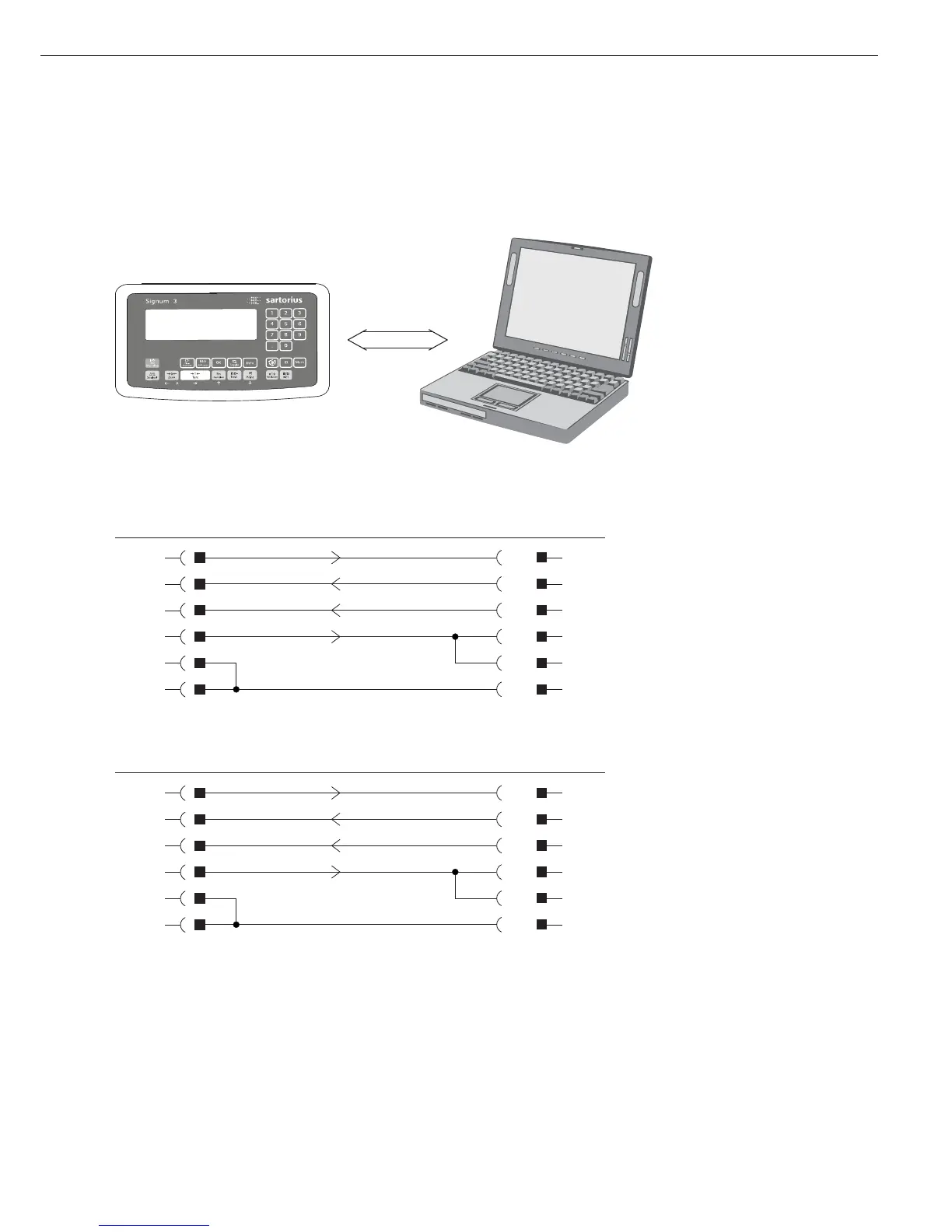

Cabling Diagram (Adapter Cable for PC)
Display and control unit Computer
V24
Cable type: AWG 24 specification
B
alance/scale Computer,
25-pin 25-contact
male connector female connector
TxD 2 3
R
xD 3 2
CTS 5 20
D
TR 20 5
GND 4/7 6
GND 14 7
B
alance/scale Computer,
25-pin 9-contact
male connector female connector
TxD 2 2
R
xD 3 3
CTS 5 4
D
TR 20 8
GND 4/7 6
GND 14 5
