Sartorius SIWRDCP - Data Interface Cabling Diagrams

Signum 1-2-3
Data Interface
Data Interface
86

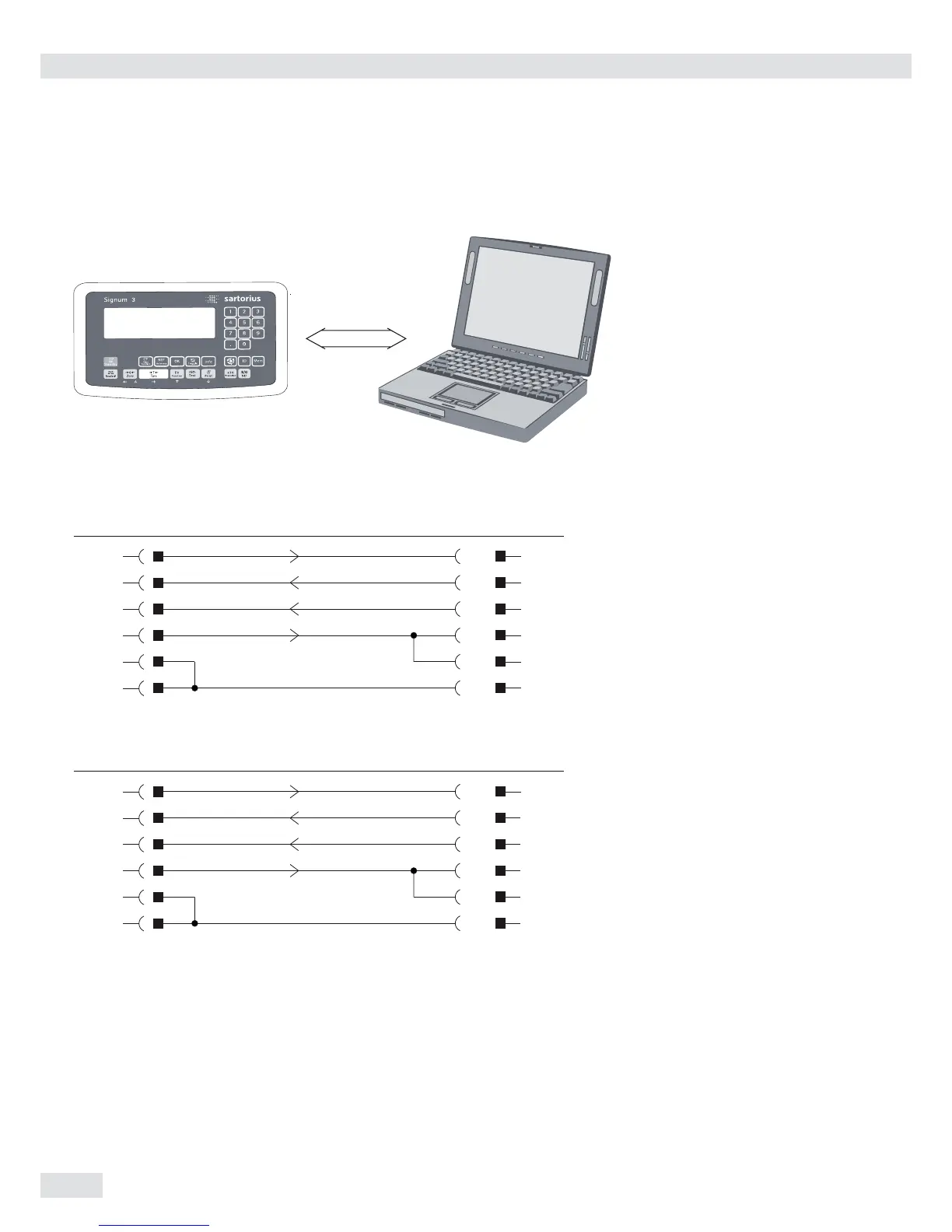

Cabling Diagram (Adapter Cable for PC)
Indicator PC
V24
Cable type: AWG 24 specification
Waage Buchse
25-pin Computer
Stecker 25 pin
TxD 2 3
RxD 3 2
CTS 5 20
DTR 20 5
GND 4/7 6
GND 14 7
Waage Buchse
25-pin Computer
Stecker 9 pin
TxD 2 2
RxD 3 3
CTS 5 4
DTR 20 8
GND 4/7 6
GND 14 5
