Chapter 4 Using PAS Software Setting up Communications
64 PM135 Powermeter Series

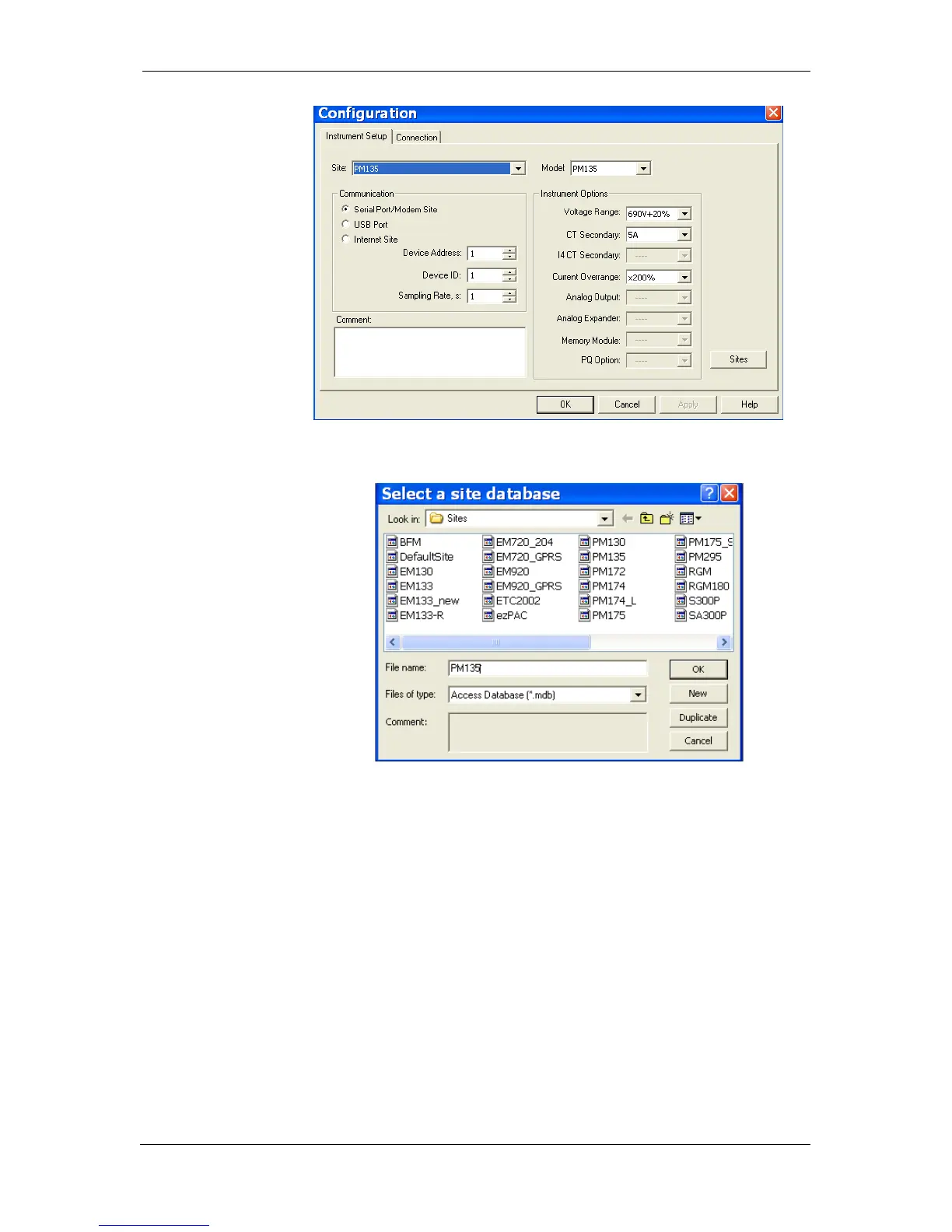

Figure 4-1: Configuration Dialog Box – Instrument Setup Tab
2. Click the Sites button on the right-hand-side.
3. From the Look in box, select the directory where a
new database will be stored. By default, it is the Sites
directory.
4. Type a site name for your device in the File name
box, click New, and then click OK.
5. On the Instrument Setup tab, select PM135 in the
Model box. PAS automatically selects the appropriate
instrument options for your meter.
6. Select a correct CT secondary current (5A or 1A) for
your meter.
7. If you wish to add any comments for your meter, type
the comments in the Comment box.
4.3 Setting up Communications
You can communicate with the PM135 via a PC RS-232 serial port or
through the Internet.
To configure communications with the PM135:
