Chapter 5 Configuring the PM135 General Meter Setup
82 PM135 Powermeter Series

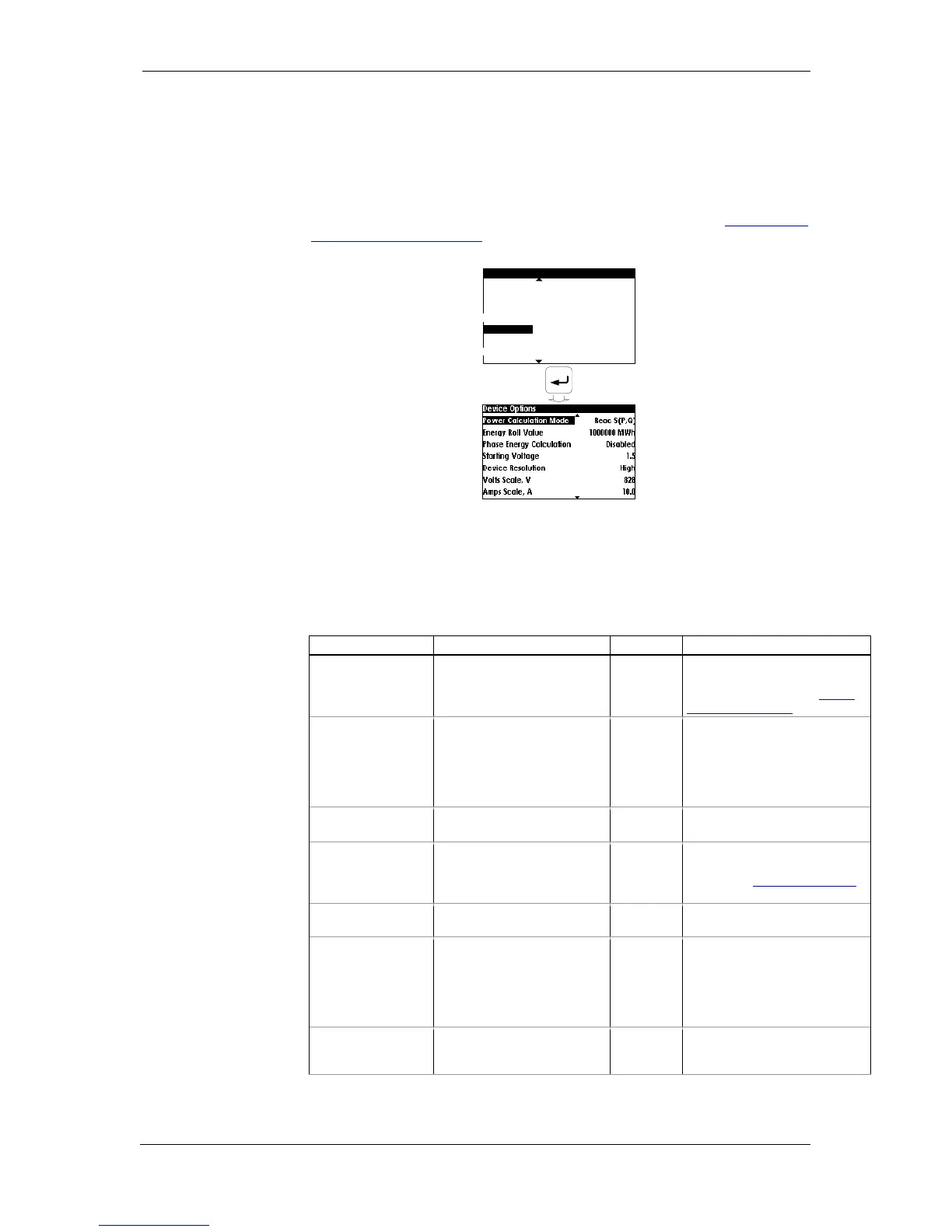

Device Options
The Device Options setup allows changing user-configurable device
options or putting the meter into energy test mode.
Using the Front Display
Select Device Options from the Device Setup menu. See Viewing and
Changing Setup Options in Chapter 3 for information on configuring
parameters via the front display.
Device Setup
Reset
Real Time Clock
Display Setup
Basic Setup
Device Options
COM1 Setup
COM2 Setup
Using PAS
Select General Setup from the Meter Setup menu, and then click on the
Device Options tab.
Table 10 lists available device options.
Table 10: User-configurable Device Options
Parameter
Options
Default
Description
Power Calculation
Mode
Reac = using reactive
power S=f(P, Q),
Nact = using non-active
power Q=f(S, P)
S=f(P, Q)
The method used for
calculating reactive and
apparent powers (see Power
Calculation Modes below)
Energy Roll Value
E, EH
10000 kWh
100000 kWh
1000000 kWh
10000000 kWh
100000000 kWh
1000000000 kWh
10000000
The value at which energy
counters roll over to zero
Phase Energy
Calculation
E, EH
Disabled
Enabled
Disabled
Enables phase energy
calculations
Energy Test Mode
E, EH
Disabled
Wh pulses
varh pulses
Disabled
Setting this option puts the
meter into the energy test
mode (see Energy Pulse LED
in Chapter 3)
Starting Voltage
1.5-5.0%
1.5%
The device starting voltage in
percent of FS (120V or 400V)
Device Resolution
Low
High
Low
The voltage, current and
power resolution on the front
display (see Measurement Units
in Chapter 3) and in
communications (see
communication guides)
Volts Scale, V
60-828 V
144 V
The maximum voltage scale
allowed, in secondary volts.
See Data Scales in Appendix F
