Chapter 5 Configuring the PM135 General Meter Setup
90 PM135 Powermeter Series
Using the Front Display

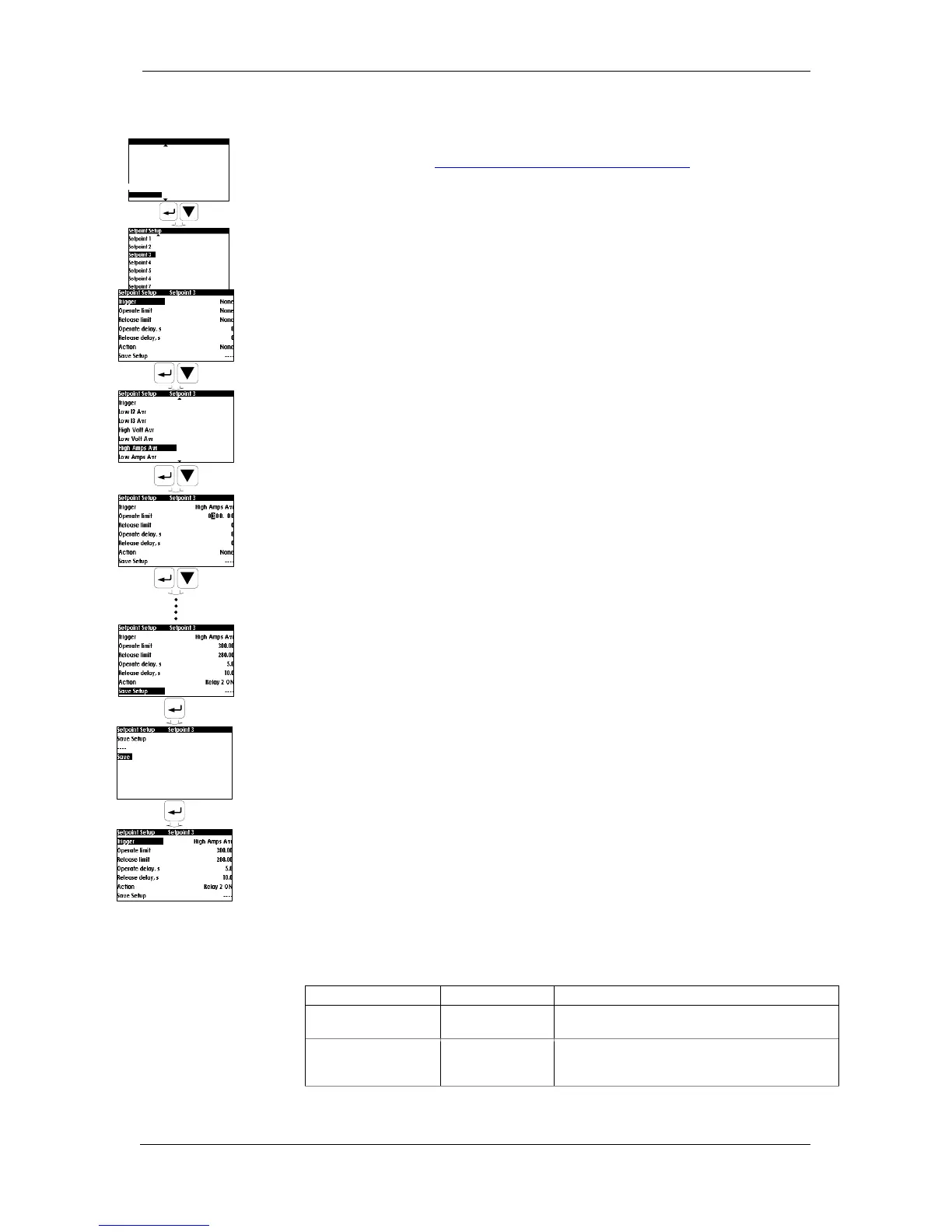

Select Setpoint Setup menu from the Device Setup menu to enter the
setup menu. See Viewing and Changing Setup Options in Chapter 3 for
information on configuring parameters via the front display.
Use the UP/DOWN buttons to scroll to the required setpoint.
To select a setpoint parameter:
1. Press SELECT/ENTER button to
select required setpoint.
2. Use the UP/DOWN buttons to scroll
to the required parameter.
To change the parameter value:
1. Press SELECT/ENTER button to
enter the parameter options menu.
2. Use the UP/DOWN buttons to
select the required value.
3. Press SELECT/ENTER button to
confirm the new setting
To store your new setpoint settings after you configured all
setpoint parameters:
1. SELECT Save Setup function from
Setpoint Setup menu and press
SELECT/ENTER button to enter
Save Setup menu
You are returned to the upper window
and can select another setpoint or exit
the menu.
2. SELECT Save and press
SELECT/ENTER button to Save
Setpoint parameters.
Using PAS
Select General Setup from the Meter Setup menu, and then click on the
Control/Alarm Setpoints tab.
The following table lists the available setpoint options.
Table 15: Setpoint Options
Option
Range
Description
Trigger parameter
See Appendix C
The trigger parameter that is used as an
argument in the logical expression
Operate limit
The threshold (in primary units) at which the
conditional expression would be evaluated to
true. Not applicable for digital triggers.
Device Setup
Real Time Clock
Display Setup
Basic Setup
Device Options
COM1 Setup
COM2 Setup
Setpoint Setup
