4
7
¾
5
1
8
0
6
2
9
#
3

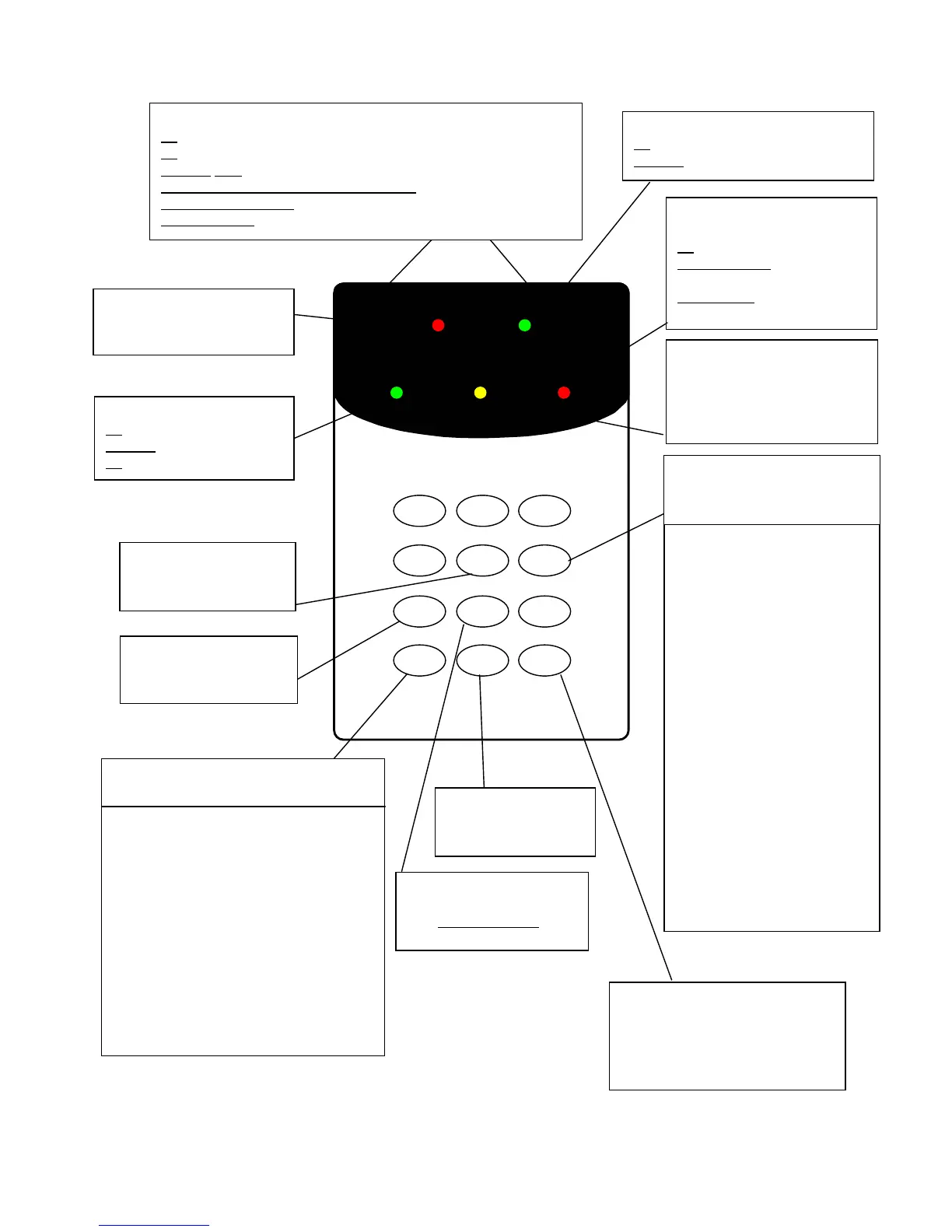

ARMED
TROUBLE
ALARM
PROGRAM
1 2 3 4 5
POWER
TROUBLE – indicates
detection of technical trouble
in system - to check press
key [7] for 3 sec.
ARMED
on
– partition armed,
blinking
– exit time in progress
LEDs 1÷5 (zones state)
on
- zone violated
off
- zone OK
blinking
fast - zone alarm memory
on with short extinguishing every 2 sec.
- zone tamper violated
flashing every 2 sec.
- zone tamper alarm memory
blinking slowly
- zone bypassed
ALARM
on - site alarm
blinking - alarm memory
[5]- pressing for 3 sec.
activates alarm
memory review
[7]- pressing for 3 sec.
activates current
trouble display
POWER
on
– power supply OK
blinking
- battery problem
off
- mains supply failure
[8] - pressing for 3 sec.
activates/deactivates
chime signaling
[0] - pressing for
3 sec. activates
AUX. ALARM
[#] - pressing for 3 sec.
activates PANIC ALARM
CODE+[#] – arming/disarming,
clearing alarm
PROGRAM – panel in
programming mode
on
– service mode
blinking slowly
– user
function mode
blinking fast
– function called
[
*
] - pressing for 3 sec. activates
FIRE ALARM
CODE+[
*
] - User Functions:
CODE [
*
][0][#] - DOWNLOADING start
CODE [
*
][1][#] - change code
CODE [
*
][2][#] - add user
CODE [
*
][3][#] - erase user
CODE [
*
][4][#] - bypass zone
CODE [
*
][5][#] - arm silent
CODE [
*
][6][#] - set time
CODE [
*
][7][#] - MONO outputs
CODE [
*
][8][#] - BI outputs
CODE [
*
][9][#] - supply reset
CODE[
*
][11][#] – output test
CODE[
*
][12][#] – service access
[6] - pressing for 3 sec.
activates trouble
memory review
TROUBLE TYPE DISPLAY:
1st SET OF TROUBLES
1 - AC power supply loss
2 - Battery trouble (F1 fuse)
3 – F2 fuse trouble (OUT1
output)
4 – F3 fuse trouble (power
supplying outputs KPD
and AUX)
5 - Clock loss
2nd SET OF TROUBLES
(negation
of lighting– LEDs off)
1 - No voltage on tel. line
2 - Problem with access to
settings memory
3 - Wrong communication
codes (connections with
computer blocked for 30
minutes)
4 - No monitoring
confirmation
5 - No signal on telephone
line
