SATO CL4NX Service Manual

2 Operation and Configuration
16
CL4NX/CL6NX Service Manual

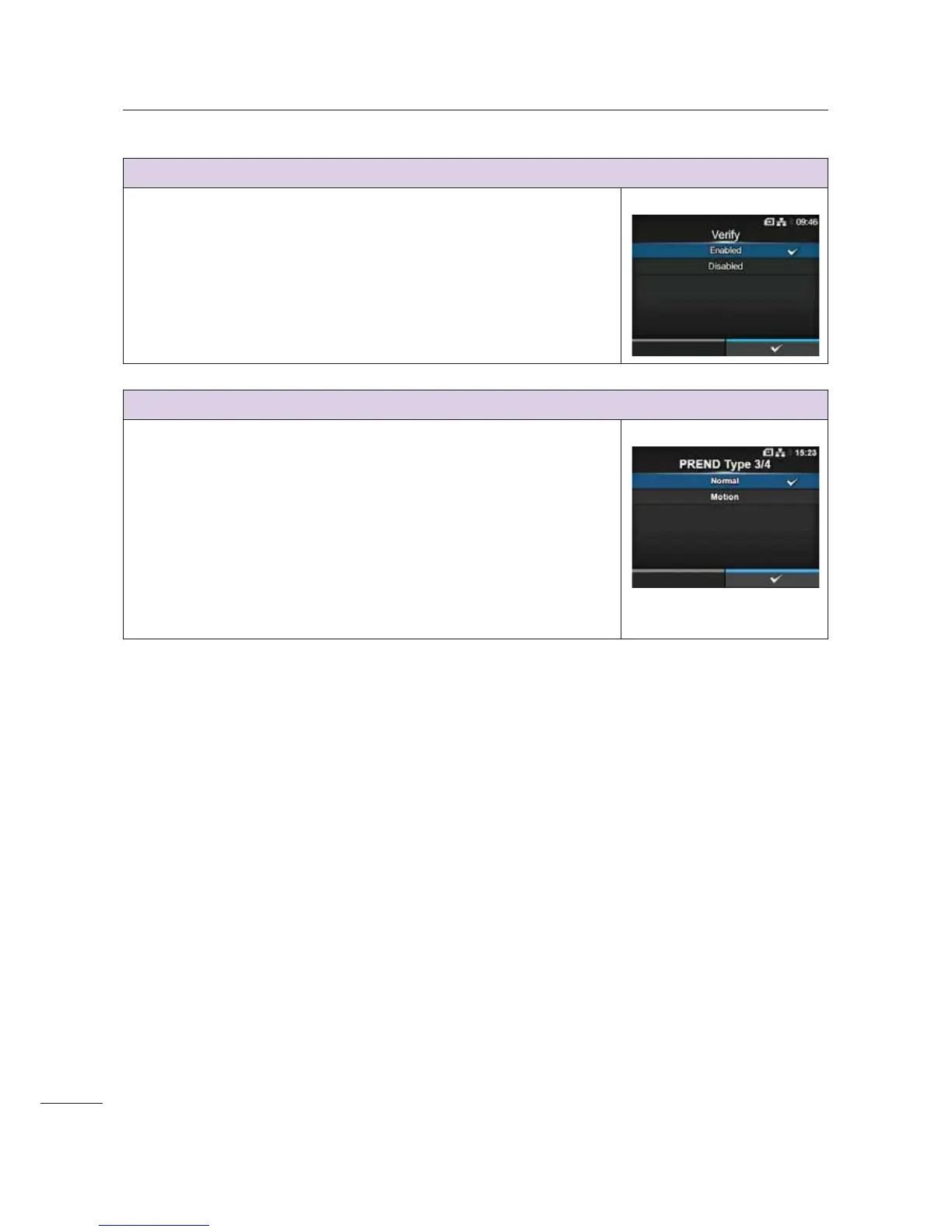

Verify
Tools > Service > RFID > Verify
Enable or disable the verification of data written on tag.
The options are as follows:
• Enabled: Perform the verification by reading the data of the written tag.
If not match, the printer prints VERIFY TAG ERR on the label.
• Disabled: Do not perform the verification of the written tag.
PREND Type 3/4
Tools > Service > RFID > PREND Type 3/4
Set the output content of the external signal PREND (Print Done).
Reflect the timing of write (stop media feed) of RFID tag to the TYPE3 and
TYPE4 waveforms of PREND (Print Done) signal.
The options are as follows:
• Normal: Use the usual PREND signal.
• Motion: Reflect the timing of write (stop media feed) of tag to the
PREND signal.
For the waveforms during the settings of Normal and Motion, refer to the
timing chart as follow.

SATO CL4NX Specifications

General

Wi-Fi	No
Ethernet LAN	Yes
Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Maximum roll diameter	220 mm
Maximum printing width	104 mm
Printing media thickness	0.06 - 0.26 µm
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	271 mm
Height	321 mm
Weight	15000 g
