5 Replacement
94
CL4NX/CL6NX Service Manual

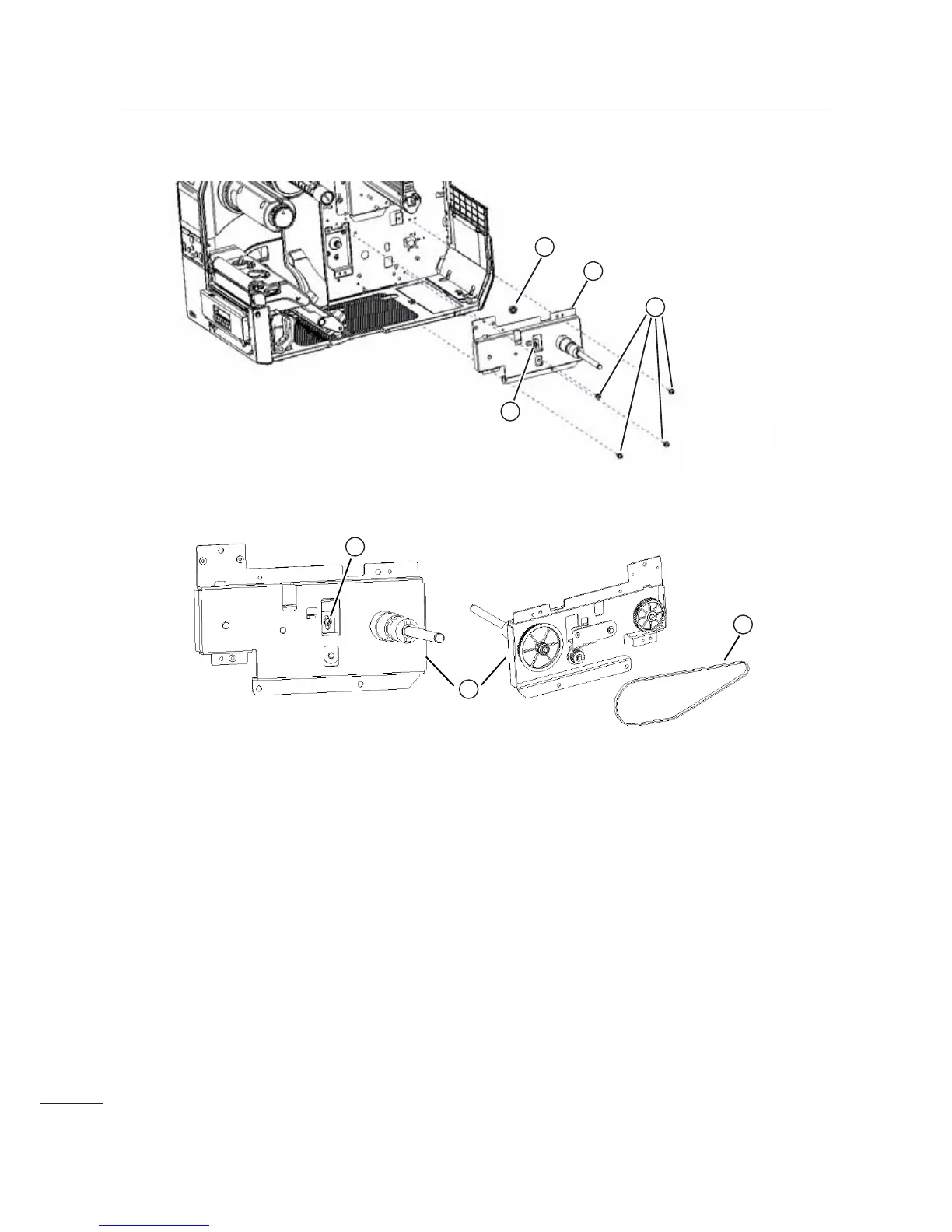

6 Remove four screws $, gearbox / of the liner rewinder and bearing 1.
7 Loosen the screw 4 on the gearbox /and replace the timing belt 2.
8 Perform the assembly with the reverse procedure.
After the replacement
• Adjust the tension of the timing belt.
Refer to Section 4.14 Adjusting the Timing Belt Tension of the Optional Liner
Rewinder.
• Check that the liner rewind operation is correct.
4
5
6
3
7
4
6
To Next Page
