5 Replacement
95
CL4NX/CL6NX Service Manual
CL6NX
Required tool:
• Phillips screwdriver (JIS #2 or equivalent)
1 Make sure that the printer is in power off mode, then disconnect the power cord from
the AC outlet.
2 Remove the left housing cover.
Refer to Section 5.1.1 Remove the Left Housing Cover.
3 Remove the rewind core unit.
Refer to Section 5.15 Replacing the Torque Limiter for Liner Rewinder (Optional).

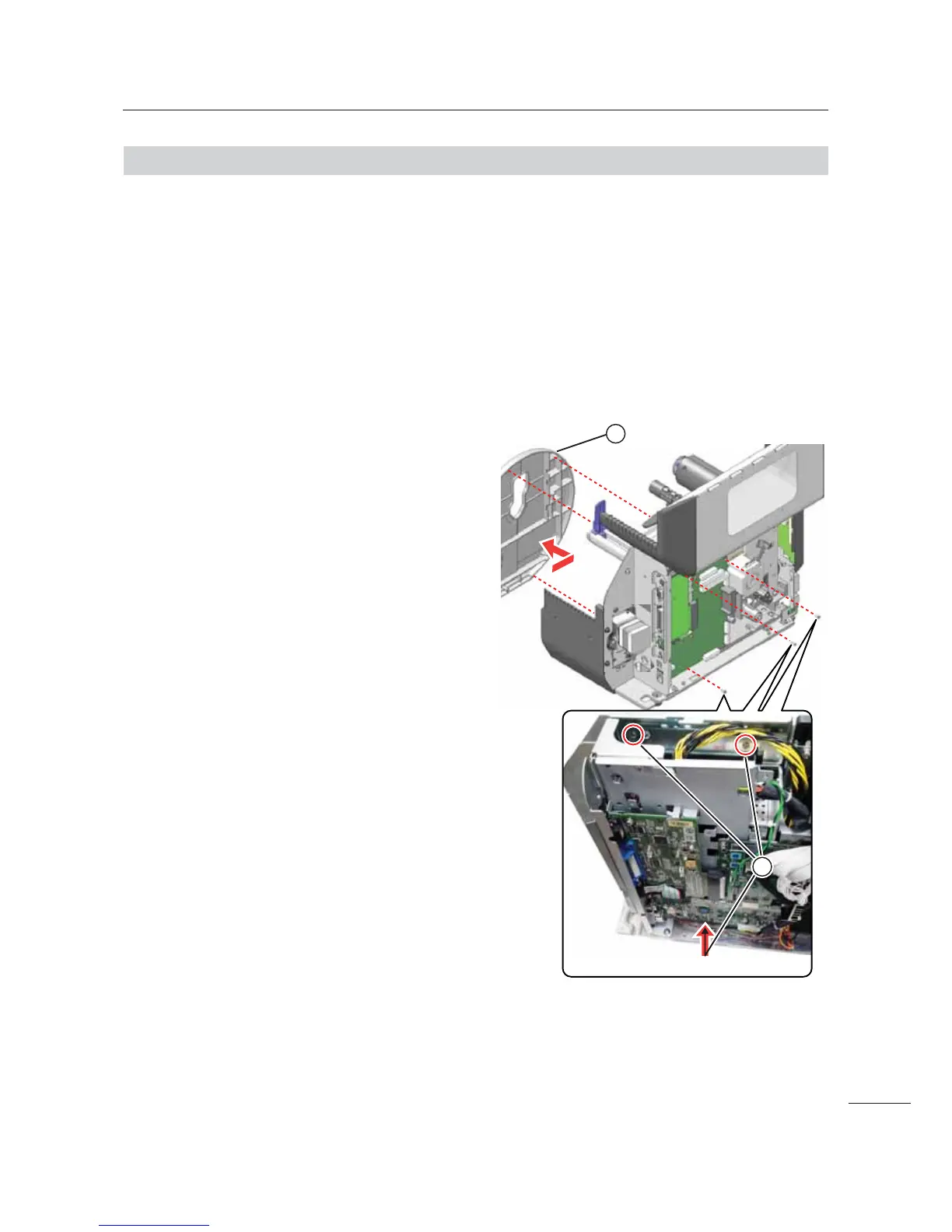

4 Remove three screws . attaching the
media holder plate
3.
5 Slide in the arrow direction to remove the
media holder plate
3.
Slide
2
1
To Next Page
