Unit 4: Standard Command Codes
SATO GL4xxe SBPL Programming Reference Page 4-13
PRINT, LINES & BOXES
FUNCTION
To print horizontal lines, vertical lines, and boxes as images on the label.
FORMAT
Line: <ESC>FWaabcccc
aa = Width of horizontal line in dots (01 to 99)
b = Line orientation H Horizontal line V Vertical Line
cccc = Length of line in dots
Box: <ESC>FWaabbVccccHdddd
aa = Width of horizontal side in dots (01 to 99)
bb = Width of vertical side in dots (01 to 99)
cccc = Length of vertical side in dots
dddd = Length of horizontal side in dots
Place following the necessary positioning commands.
EXAMPLE
<ESC>A
<ESC>H0100<ESC>V0100<ESC>FW20H0200
<ESC>H0320<ESC>V0100<ESC>FW20V0200
<ESC>H0350<ESC>V0100<ESC>FW1010H0200V0200
<ESC>Q1
<ESC>Z

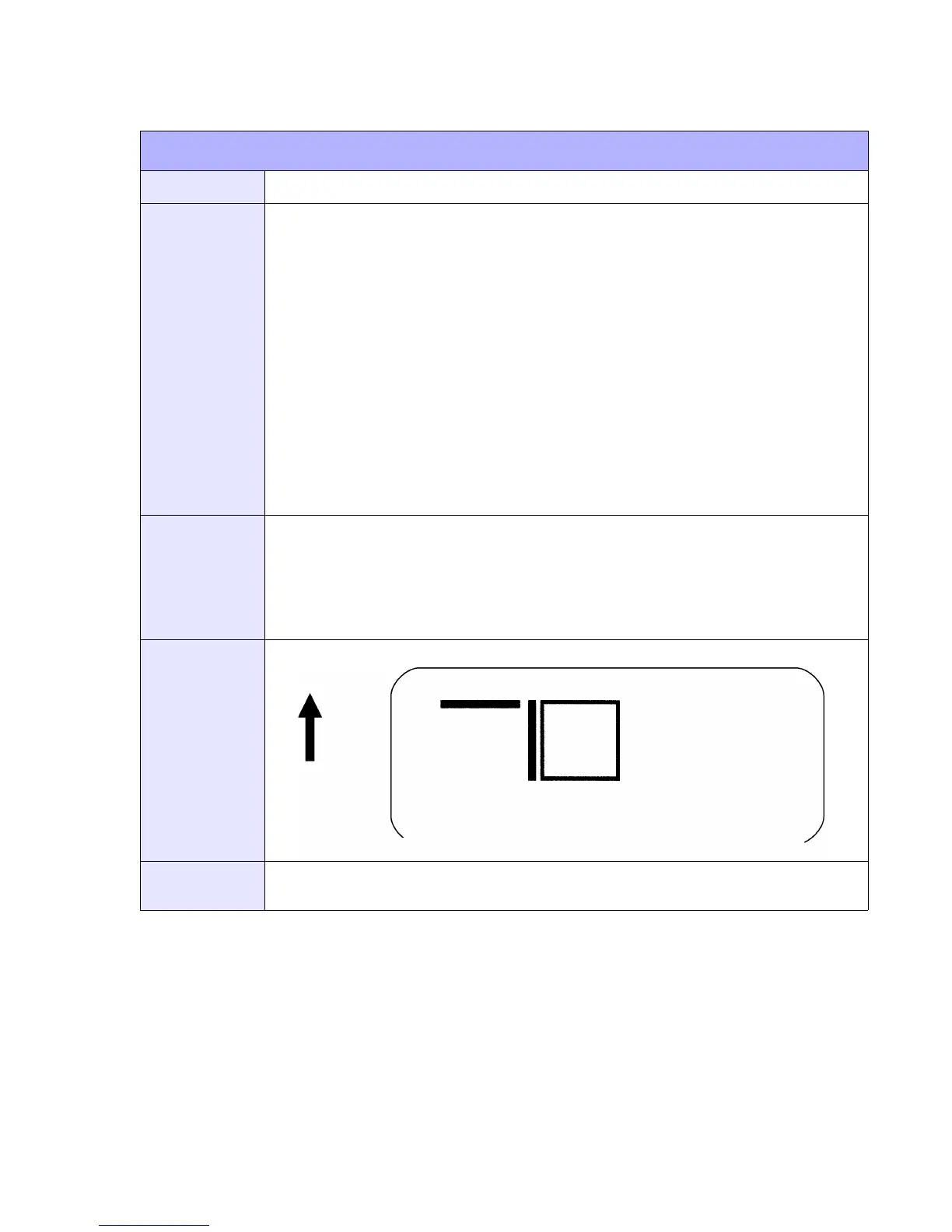

OUTPUT
(4-9)
NOTES
It is recommended that all lines and boxes be specified in the normal print direction.
Use the <ESC>EX0 Expanded Print Length command for maximum label length.
