SATO GL 4xxe Series Programming Reference Guide

Unit 4: Standard Command Codes
SATO GL4xxe SBPL Programming Reference Page 4-68
GRAPHIC COMMANDS
GRAPHICS, CUSTOM
FUNCTION
To create and print custom graphics (logos, pictures, etc.) on a label.
FORMAT
<ESC>Gabbbccc(data)
a = Specifies format of data stream to follow B Binary format H
Hexadecimal format
bbb = Number of horizontal 8 x 8 blocks
ccc = Number of vertical 8 x 8 blocks
(data) = Hex data to describe the graphic image
Place anywhere within the data stream after the necessary position commands.
EXAMPLE
<ESC>A
<ESC>H0100<ESC>V0100<ESC>GH006006
FFFFFFFFFFFFFFFFFFFFFFFFC00000000003
C00000000003C000FFFFFFF3C00080000013
C00080000013C0009FFFFF13C00080000013
C00080000013C0009FFFFF13C00080000013
C00080000013C000FFFFFFF3C00000000003
C00000000003C00000000003C00000000003
C00000000003C00000000003C00003C00003
C00007E00003C0000FF00003C0000FF00003
C0000FF00003C0000FF00003C00007E00003
C00003C00003C00003C00003C00003C00003
C00003C00003C00003C00003C00003C00003
C00003C00003C00003C00003C00003C00003
C00003C00003C00001800003C00000000003
C00000000003FFFFFFFFFFFFFFFFFFFFFFFF
<ESC>H0300<ESC>V0100<ESC>XSPLEASE PLACE YOUR DISK
<ESC>H0300<ESC>V0150<ESC>XSIN A SAFE PLACE
<ESC>Q1<ESC>Z

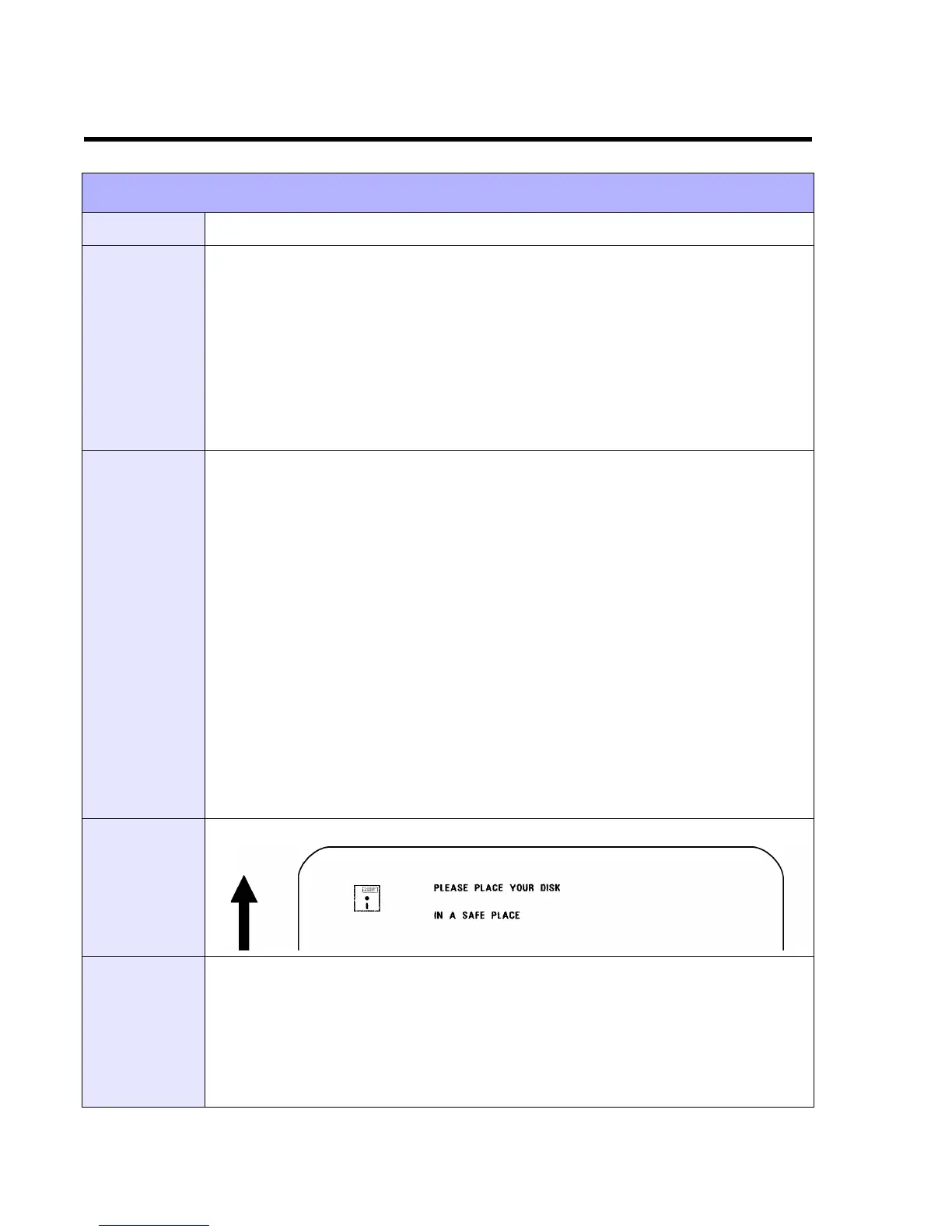

OUTPUT
(4-52)
NOTES
Graphic images may be printed along with other data to enhance label appearance or
eliminate the need for preprinted label stock. Using a dot-addressable matrix, design
the graphic image in 8 x 8 dot blocks, then send it in a binary format to the printer.
Do not use <ESC>CR or <ESC>LF characters as line delimiters within graphic data or
the actual image will not be printed as specified. A custom graphic cannot be enlarged
by the Character Expansion <ESC>L command and is not affected by either of the
Rotation commands. Always design the graphic image in the appropriate orientation.
