Maintenance
WP33L_BA_K1_12_en_08.fm
59

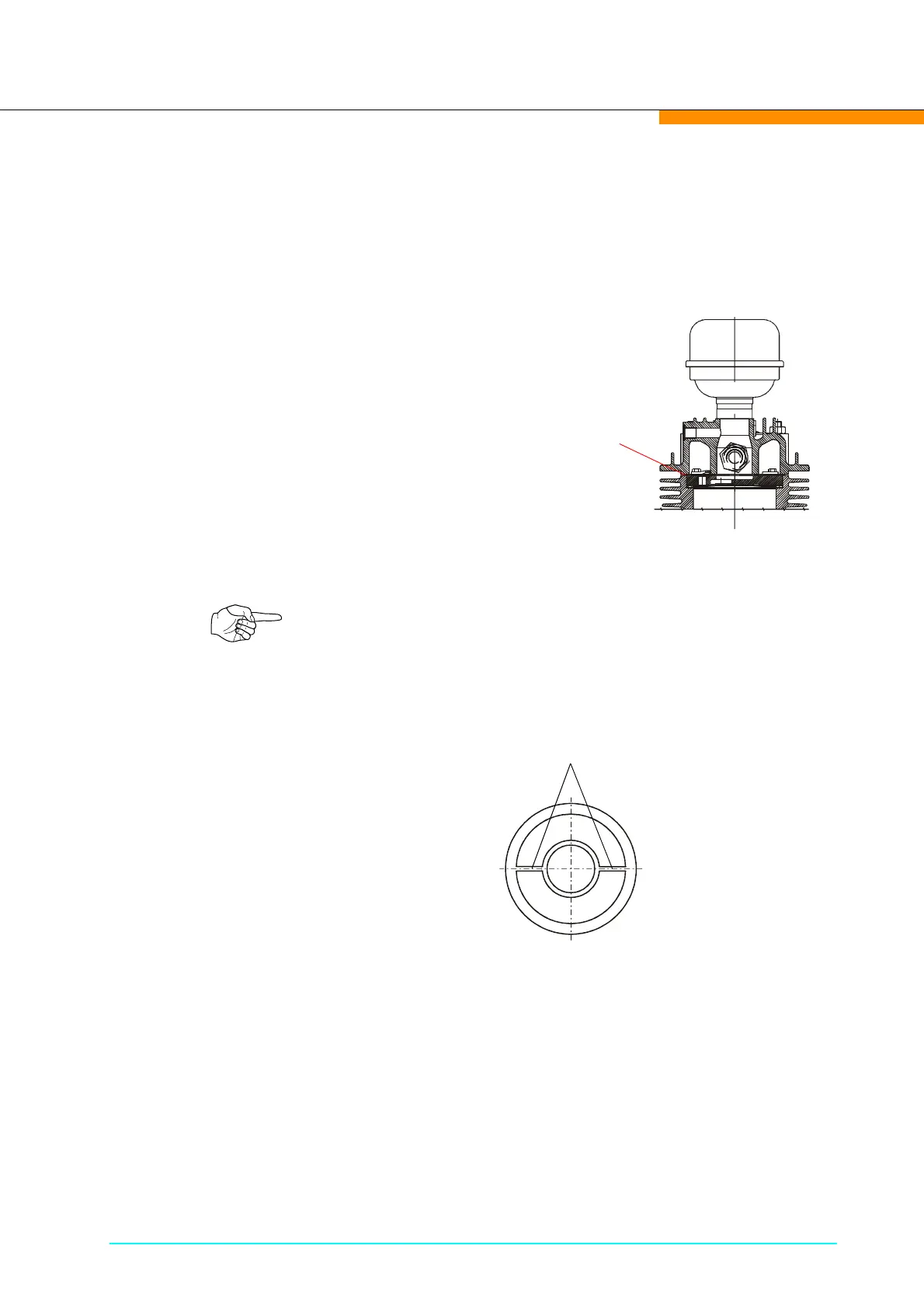

Valve installation
5. Fit reed (lamellar) valve and cylinder head of the 1
st
stage,
use a new cylinder head gasket between valve and cylinder
head.
6. Remove supports to separate the inner and outer ring of the
cylinder head gasket.
7. Fit reed (lamellar) valve and cylinder of the 2
nd
stage, using a
new cylinder head gasket between valve and cylinder head
and a new O-ring.
Cylinder head gasket
1
st
stage
Lamellar valve
Note!
Do not reuse used seals under any circumstances. Doing so
leads to leakage within a short time.
The supports of the gasket must be removed before assembly.
