62
WP33L_BA_K1_12_en_08.fm

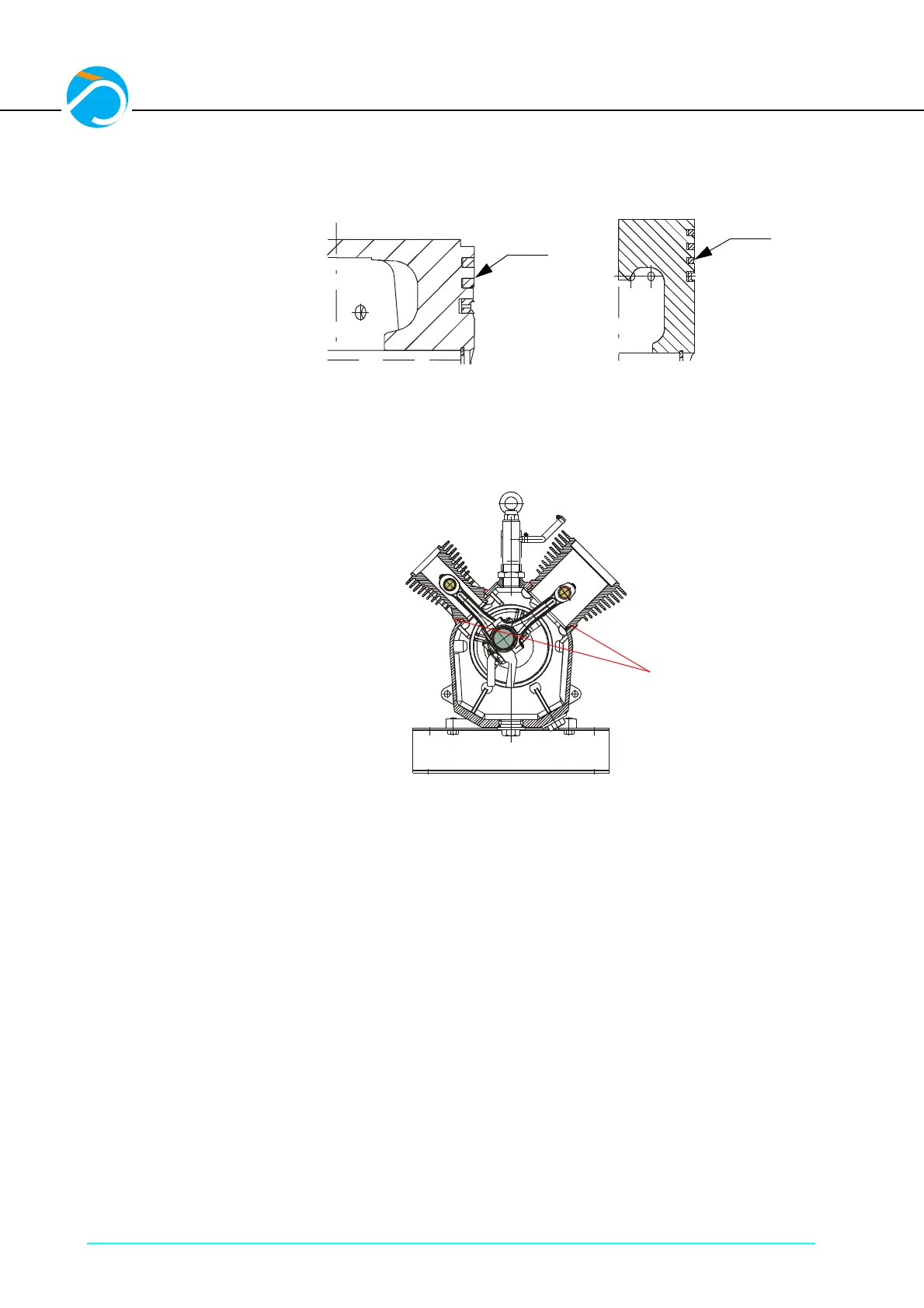

8. The piston ring gaps should be staggered.
9. Fit a new cylinder base gasket for each cylinder.
10. Push the piston up to the piston pin bore into the respective
cylinder. Fit the cylinder together with the piston.
11. Mount pistons on the connecting rods. For this purpose,
press the gudgeon pins in and fit the circlips of the gudgeon
pins..
12. Fit cylinder heads and valves as described in Chapter 8.8
“Checking valves”.
cylinder base
gasket
1
st
stage
2
nd
stage
