Input/output (I/O) modules
5-126
Motion control modules for servo-motors

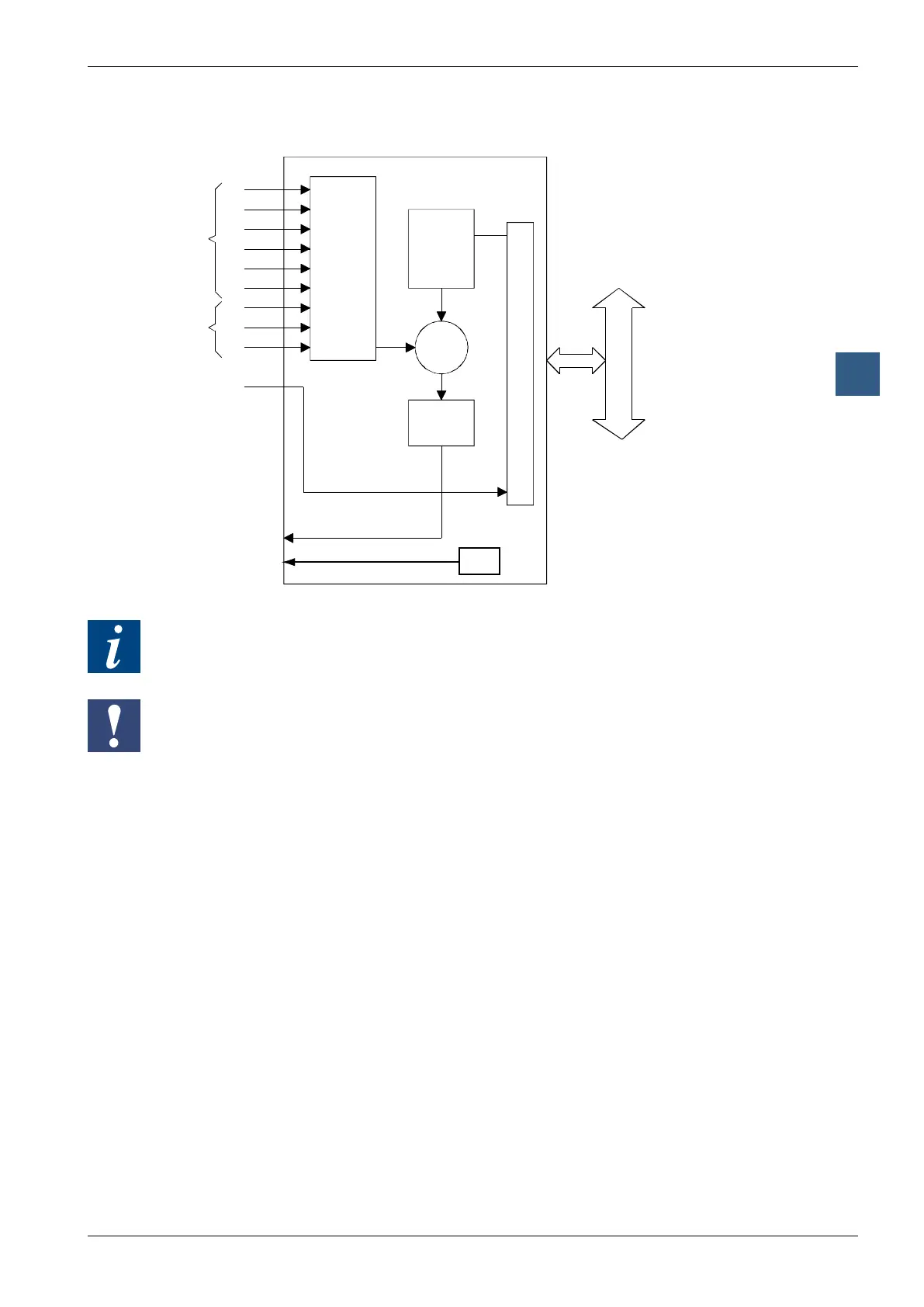

Block diagram
A
/A
B
/B
/IN
IN
A
B
IN
5V
En-
co-
der
24V
En-
co-
der
LS ref
(H310)
PID
regulator
Trajector
generator
Out (+/- 10V)
to amplifier
Bus Interface
PCD Bus
Position counter
H310
H311
Encoder
Supply 5 V
H311
Enc.
For further information, please refer to manual 26/762, “PCD2.H31x - motion control
module for stepper motors”
Watchdog: This module cannot be used on the base address 240 (or 496 for the
PCD2.M17x), because it would interact with the watchdog, and would cause a
malfunction.
For details, please refer to the “Watchdog” section, which describes the correct use of
the watchdog in conjunction with PCD2 components.
