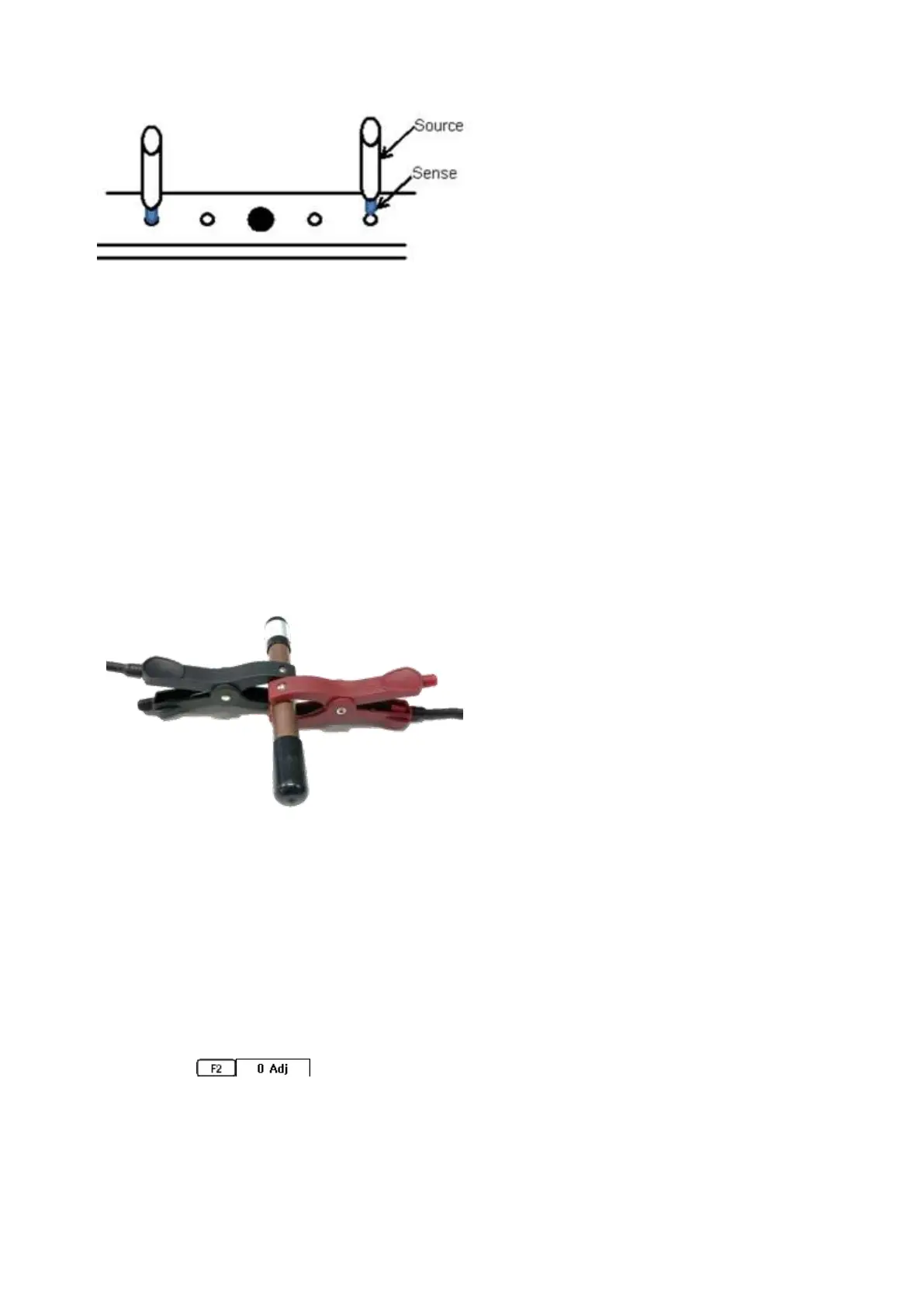

0 ADJ requires to fit the tips of the probes down into the holes of 0 ADJ board and
press down so that source points of the leads contact the board also.
Do not place the 0 ADJ board on a battery or metal surface. Adjustment errors may
occur from electro magnetic interference.
If the battery terminal to terminal distance is greater than the distance of the holes on
the 0 ADJ board, use the first left hole and last right hole in the adjust kit.
2 ) Clamp Type Test Probes (clamp type test leads are an optional accessory )
As shown above, use the adjust kit. Clamp each jaw of test probes onto the
adjust kit to conduct the 0 ADJ.
Procedure for 0 Adjustment
① Connect test probe pins (or clamps) to the 0 ADJ kit.
② Hold the key for more than 2 seconds.
Test Probes must remain in contact with the 0 ADJ kit
